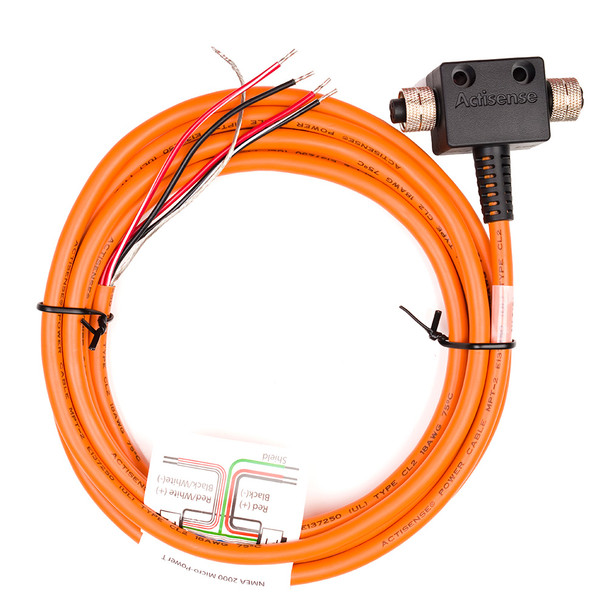

Actisense NMEA2000 Micro T-Piece with Female Connectors and 3M UL Certified Cable

NMEA2000 Micro T-Piece with Female Connectors 3M UL Certified Cable

The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.

Now with improved strain relief!

The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable plug and play connectivity.

The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.

The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.

Technical Specifications:

Electrical

• Rated Current - 4A (each feed)


• Rated Voltage - 60VDC

Mechanical

• Female Contact - Phosphor bronze, gold plated


• Contact Carrier - PA66 (30% Glass Filled), Black


• Contact Polarization - Standard M12 -A- polarization


• Mating Thread - M12


• Screw Cap - Brass, nickel plated


• O-Ring Seal - Rubber, black


• Housing - PVC, black


• Cable Jacket Material - 0.8mm Nom. PVC, orange


• Cable Outer Diameter - 6.7mm 0.254mm


• Cable Length - 3M


• Wire Length - 100mm (7mm stripped)


• Wire Jacket - PVC


• Wires - 18 AWG (stripped and tinned)


• Drain - 18 AWG (34-strand tinned copper)


• Shield - Al-mylar


• Weight - 290g

Approvals and Certifications

• Protection - IP67 (when mated)


• Operating Temperature - -20C to +70C


• Storage Temperature - -40C to +85C

The Actisense A2K-MPT-2 is a highly reliable and efficient solution for powering your NMEA 2000 network. Designed with micro-fit connectors, this micro T-piece enables easy plug-and-play connectivity, making installation straightforward without compromising on performance. The improved strain relief feature adds durability and ensures secure connections over time, even in demanding marine environments. Crafted with quality-engineered connectors, the device ensures a secure and stable connection, while its compatibility with Devicenet systems broadens its application scope. The UL certified, three-meter cable provides flexibility for diverse installation configurations, allowing you to position the power source optimally within your vessel or system setup. This device is rated for 4A per feed and operates safely at voltages up to 60VDC, making it suitable for various marine and industrial applications. The components, including phosphor bronze gold-plated female contacts and a durable PVC housing, are engineered for longevity and resistance to harsh conditions. The IP67 protection rating when mated guarantees resistance to water and dust, ensuring dependable operation even in challenging environments. Operating temperature ranges from -20°C to +70°C, with storage capabilities up to -40°C to +85°C, providing versatility for different climates and conditions. With a lightweight design weighing approximately 290 grams, the Actisense Micro T-Piece provides an optimal balance of robustness and ease of installation, making it an essential component for expanding or maintaining your NMEA 2000 network efficiently.

Features:

• Rated current of 4A per feed for reliable power distribution

• UL certified 3-meter cable for safety and flexibility

• Improved strain relief for enhanced durability

• Female phosphor bronze contacts with gold plating for secure connections

• IP67 rated when mated for water and dust resistance

• Compatibility with NMEA 2000 and Devicenet systems

• Operates safely within a voltage range up to 60VDC

• Robust PVC housing with corrosion-resistant brass screw cap

• Temperature tolerant from -20°C to +70°C for versatile deployment

• Lightweight design at approximately 10 ounces for easy handling and installation
