Actisense Rear Panel Mount NMEA 2000 Micro 5-Pin Female Connector (Part A2K-PMW-F)

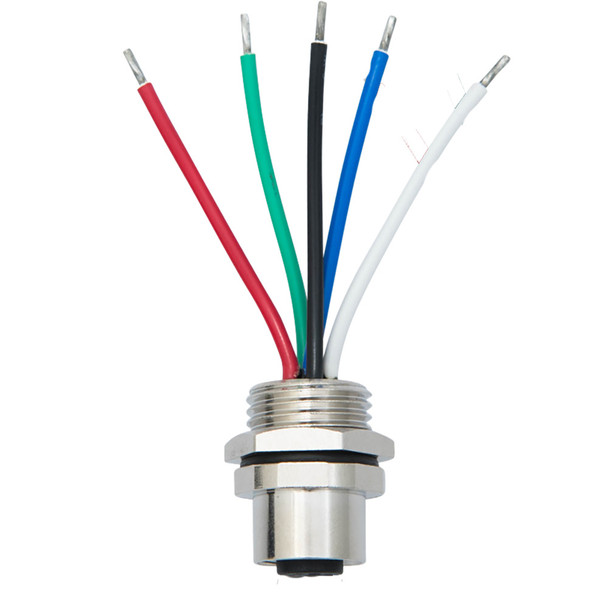

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing drop glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A


• Rated Voltage - 60VDC

Mechanical

• Contacts - Brass, gold-plated


• Contact Carrier - Nylon GF


• Contact Polarization - Standard M12-A-Polarization


• Mating Thread - M12


• Housing - Brass, nickel-plated


• Mounting Thread - PG9


• Mounting Nut - Brass, nickel plated - PG9


• Mounting Hole Diameter - 15.3mm


• Wires - 18 AWG (stripped and tinned)


• Wire Jacket - PVC


• Weight - 20g

Approvals and Certifications

• Protection - IP67 (when mated)


• Operating Temperature - -25C to +90C


• Connector Specification - Meets IEC61076-2-101

The Actisense Rear Panel Mount NMEA 2000 Micro 5-Pin Female Connector provides a reliable and watertight solution for integrating NMEA 2000 networks through panels or bulkheads. Designed for marine and industrial applications, this connector features waterproof seals that maintain the integrity of your connections even in harsh environments. Its panel-mount design allows for secure installation, making it easy to replace or upgrade existing setups with a quick plug-in connection.
Constructed with high-quality brass housing and gold-plated brass contacts, this connector ensures excellent electrical performance and corrosion resistance. The nylon contact carrier provides durability, while the nickel-plated mounting nut and brass housing facilitate secure mounting with a 15.3mm hole diameter. The connector supports a rated current of 4A and operates effectively within a voltage range of up to 60VDC, making it suitable for various power requirements. Wires are stripped, tinned, and can accommodate 18 AWG gauge conductors, with a PVC jacket for added insulation and protection.
Meeting IEC61076-2-101 standards, the Actisense NMEA 2000 connector is IP67 rated when mated, ensuring protection against dust and water ingress. Its operating temperature range from -25°C to +90°C allows for versatile deployment in diverse marine and outdoor environments. The compact weight of approximately 0.7 ounces makes it ideal for systems where space and weight are critical. This connector seamlessly integrates with Actisense’s range of NMEA 2000 components, providing a durable and easy-to-install solution for marine electronics and data networks.
For detailed installation instructions and technical specifications, refer to the Actisense manual available online. Trust Actisense’s expertise in marine interconnect solutions to ensure your NMEA 2000 network remains secure and reliable under demanding conditions.

Features:

• Watertight panel-mount design for secure installations through panels or bulkheads

• Waterproof seals ensure connection integrity in harsh environments

• Brass, nickel-plated housing provides corrosion resistance and durability

• Gold-plated brass contacts for optimal electrical performance

• Supports rated current of 4A and voltage of 60VDC

• Compatible with 18 AWG stranded and tinned wires

• Meets IEC61076-2-101 connector standards

• IP67 rated when mated for dust and water ingress protection

• Operating temperature range from -25°C to +90°C

• Compact, lightweight design suitable for marine and industrial use
