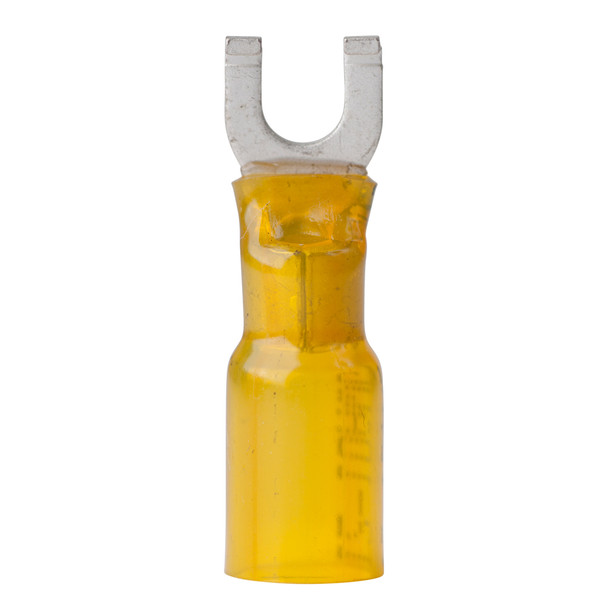

Ancor 12-10 Gauge #8 Heat Shrink Spade Terminals – 100 Pack

12-10 Gauge - #8 Heat Shrink Spade Terminals - 100 Pack

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.




• Nylon insulator, preferred by experts.




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size.




• Shrinks at 257 deg. F/125 deg. C.




• Operating temperature range 40 deg. C to 110 deg. C.




• Tinned for corrosion resistance.




• Pure copper for maximum current flow.




• Brazed seam for maximum strength.




• Wire Range: 12-10




• mm: 3-5




• Screw Size: 4mm




• Qty/Pkg: 100

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.




The Ancor Part Number 315299 offers a reliable solution for connecting 12-10 gauge wires with ease and durability. Crafted with cross-linked polyolefin tubing, these terminals provide greater strength and heat resistance compared to traditional PVC, ensuring longevity in demanding environments. The heat-activated adhesive lining creates an impervious seal against salt water, oil, acids, and UV exposure, while also providing strain relief to prevent wire damage over time. The nylon insulator is preferred by industry professionals for its superior insulation properties and durability. These terminals are UL listed and CSA recognized, confirming their safety and compliance with electrical standards. With a high shrink ratio that reduces to one-third of their original size when heated to 257°F (125°C), they are designed for quick and secure termination, even in tight spaces. Operating within a temperature range of 40°C to 110°C, they are suitable for various marine, automotive, and industrial applications. The tinned copper construction ensures maximum corrosion resistance and optimal current flow, while the brazed seam enhances mechanical strength for a reliable connection. Compatible with wire sizes 12-10 AWG and accommodating a 4mm screw size, these terminals are an essential component for professional electrical work. Each pack contains 100 spade terminals, offering a cost-effective solution for large projects or ongoing maintenance needs. Trust Ancor's quality and performance for your wiring tasks, ensuring safe and durable electrical connections in challenging environments.

Features:

• Cross linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides a water and chemical resistant seal

• Nylon insulator offers superior insulation and durability

• UL listed and CSA recognized for safety compliance

• Highest shrink ratio, shrinking to 1/3 of original size at 257°F (125°C)

• Wide operating temperature range from 40°C to 110°C

• Tinned copper provides corrosion resistance and optimal current flow

• Brazed seam for maximum mechanical strength

• Compatible with 12-10 AWG wire and 4mm screw size

• Pack includes 100 heat shrink spade terminals
