Description

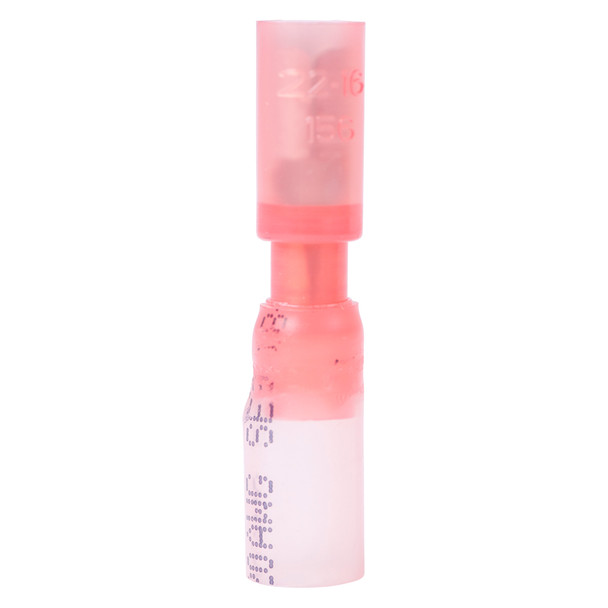

22-18 Female Heatshrink Snap Plug - 100-Pack
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire Range: 22-18/.157
- Size: 0.3-0.8mm/4mm
- Gender: Female
- Qty/Pkg: 100
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor 22-18 Female Heatshrink Snap Plug (Part Number: 318899) is a high-quality connector designed for reliable electrical connections in demanding environments. Made from cross-linked polyolefin tubing, this snap plug offers superior strength compared to PVC alternatives and is resistant to heat, chemicals, and UV exposure. Its heat-activated adhesive lining ensures an impervious seal against saltwater, oil, acids, and sunlight, providing excellent strain relief and protection for your wiring connections. The nylon insulator, preferred by marine and electrical professionals, offers resistance to vibration, cut-through damage, and harsh environmental conditions, making it suitable for marine-grade applications. UL listed and CSA recognized, these connectors meet rigorous safety standards and quality benchmarks. With a high shrink ratio of 3:1, the tubing shrinks to one-third of its original size at 257°F (125°C), forming a watertight seal that ensures optimal electrical performance. Operating within a temperature range of 40°C to 110°C, the heat shrink connectors maintain integrity across various climates. Crafted from tinned pure copper, they resist corrosion and provide maximum current flow, while the brazed seam enhances overall strength and durability. Designed to fit wire ranges of 22-18 AWG, these female snap plugs are ideal for marine, automotive, and industrial wiring projects. Each pack contains 100 connectors, offering a cost-effective solution for bulk applications. The Ancor branding guarantees quality, and these connectors are engineered to deliver long-lasting, secure connections in challenging environments. Please note the product contains chemicals known to cause reproductive harm and should be handled with proper safety precautions. This product does not qualify for truck freight and is not oversized, ensuring straightforward shipping and handling.
Features:
- Cross-linked polyolefin tubing provides greater strength and heat resistance compared to PVC tubing
- Heat-activated adhesive lining creates a waterproof seal and strain relief
- Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage
- UL listed and CSA recognized for quality and safety standards
- Shrinks to one-third of original size at 257°F (125°C) for a secure fit
- Operates effectively within a temperature range of 40°C to 110°C
- Tinned for corrosion resistance and maximum current flow with pure copper construction
- Brazed seam enhances connector strength and durability
- Designed for wire ranges of 22-18 AWG, with a size of approximately 0.3-0.8mm / 4mm
- Pack includes 100 female heat shrink snap plugs suitable for various electrical applications
