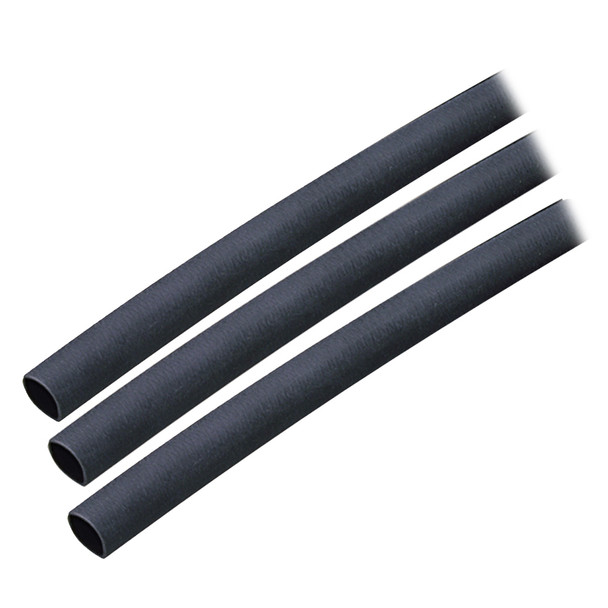

Ancor 303103 Adhesive Lined Heat Shrink Tubing, 1/4 inch x 3 inches, 3-Pack, Black

Adhesive Lined Heat Shrink Tubing (ALT) - 1/4" x 3" - 3-Pack - Black

Package of 3 Black 3"(7.6cm) long sections with a 1/4"(6.4mm) diameter that shrinks to 5/64"(2mm)

Wire Range: 16-10 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief




• Highest shrink ratio - shrinks to 1/3 original size




• Shrinks at 257F / 125C




• Operating temperature range of -40C to 110C




• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This package includes three sections of Ancor's high-quality adhesive lined heat shrink tubing, each measuring 3 inches in length with a 1/4 inch diameter before shrinking. Designed for reliable insulation and protection, this tubing shrinks to a diameter of approximately 5/64 inches, providing a snug fit for wire ranges from 16 to 10 AWG. Its durable cross-linked polyolefin construction offers significantly greater strength than traditional PVC tubing and eliminates the risk of burning or melting during application. The heat-activated adhesive lining creates an impervious seal around wires, safeguarding against saltwater, oil, acids, and prolonged sunlight exposure, while also providing strain relief to prevent damage from movement or vibration. With a high shrink ratio, this tubing reduces to about one-third of its original size when heated to 257°F (125°C), ensuring a tight, secure fit that enhances electrical safety and durability. Operating effectively within a temperature range of -40°C to 110°C, it is suitable for various demanding environments. UL 224 certified, this heat shrink tubing is a reliable choice for marine, automotive, and industrial applications that require resilient insulation and sealing solutions. Please be aware that this product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which has been linked to health concerns; more information is available at P65Warnings.ca.gov. Trust Ancor's heat shrink tubing to deliver secure, long-lasting insulation in your wiring projects, providing both protection and peace of mind.

Features:

• Cross-linked polyolefin tubing offers superior strength and durability compared to PVC tubing

• Heat-activated adhesive lining ensures an impervious seal against salt water, oil, acids, and sunlight

• Shrinks to approximately 5/64 inch diameter, providing a secure fit for 16-10 AWG wires

• High shrink ratio of 3:1 allows the tubing to reduce to one-third of its original size

• Operates effectively within a temperature range of -40°C to 110°C ( -40°F to 230°F )

• UL 224 certified for safety and reliability
