Description

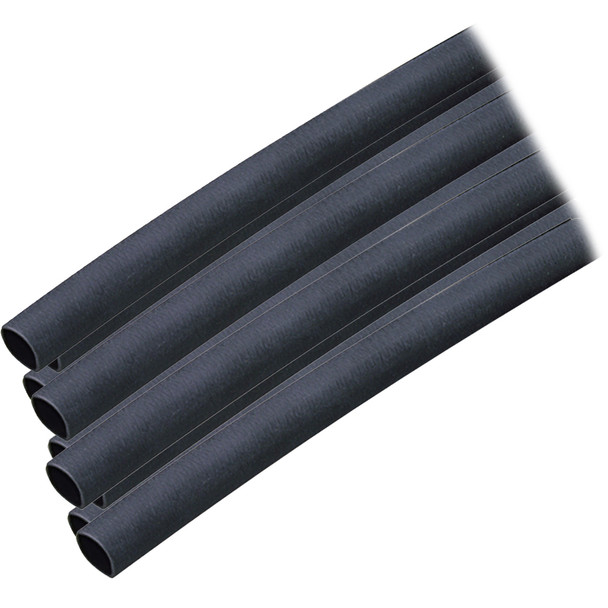

Adhesive Lined Heat Shrink Tubing (ALT) - 1/4" x 12" - 10-Pack - Black
Package of 10 Black 12"(30.5cm) long sections with a 1/4"(6.4mm) diameter
that shrinks to 5/64"(2mm)
Wire Range: 16-10 AWG
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and
will not burn like PVC
- Heat activated adhesive lining provides impervious seal to salt water,
oil, acids, and sunlight as well as providing strain relief
- Highest shrink ratio - shrinks to 1/3 original size
- Shrinks at 257F / 125C
- Operating temperature range of -40C to 110C
- UL 224
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor 303124 Adhesive Lined Heat Shrink Tubing offers a reliable solution for protecting and insulating electrical connections. Each package includes ten black sections, each measuring 12 inches in length with a 1/4 inch diameter that shrinks to just 5/64 inch when activated. Designed to accommodate wire sizes from 16 to 10 AWG, this high-quality tubing provides a secure, waterproof seal and strain relief for a variety of applications. The cross-linked polyolefin material is significantly stronger than PVC and resists burning, making it suitable for demanding environments. The heat-activated adhesive lining ensures a tight seal against salt water, oils, acids, and UV sunlight, enhancing durability and protection in outdoor or marine settings. With a high shrink ratio, the tubing reduces to one-third of its original size when heated to 257°F (125°C), ensuring a snug fit around wires and components. Operating effectively within a temperature range of -40°C to 110°C, it maintains performance under extreme conditions. UL 224 certification confirms its safety and compliance standards, making it an excellent choice for professional wiring and repair projects. Properly applied, this heat shrink tubing provides long-lasting insulation and protection, reducing the risk of electrical failures and environmental damage. Whether used in automotive, marine, or industrial applications, the Ancor heat shrink tubing is engineered for durability, ease of installation, and superior sealing performance, helping to ensure the safety and reliability of your electrical systems.
Features:
- Cross-linked polyolefin tubing is stronger than PVC and resists burning
- Heat-activated adhesive lining provides an impervious seal against water, oil, acids, and sunlight, offering strain relief
- Highest shrink ratio, shrinking to one-third of original size for a snug fit
- Shrinks at 257°F (125°C) for quick and effective installation
- Operates within a temperature range of -40°C to 110°C, suitable for harsh environments
- UL 224 certified for safety and quality assurance
