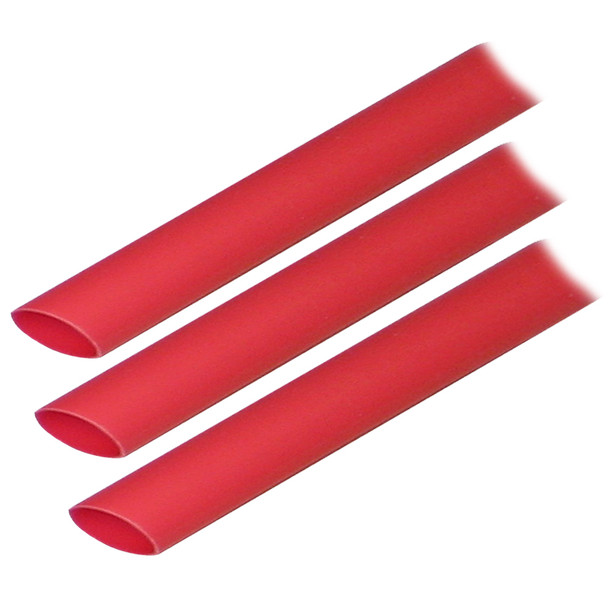

Ancor 305603 Adhesive Lined Heat Shrink Tubing, 1/2 Inch x 3 Inch, Red, 3-Pack

Adhesive Lined Heat Shrink Tubing (ALT) - 1/2" x 3" - 3-Pack - Red

Package of 3 Red 3"(7.6cm) long sections with a 1/2"(12.7mm) diameter that shrinks to 5/32"(4mm)

Wire Range: 8-4 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief




• Highest shrink ratio - shrinks to 1/3 original size




• Shrinks at 257F / 125C




• Operating temperature range of -40C to 110C




• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 305603 Adhesive Lined Heat Shrink Tubing offers reliable insulation and protection for wiring applications. Each pack includes three sections of red, 3-inch long tubing with a 1/2-inch diameter that shrinks down to approximately 5/32-inch (4mm), providing a secure fit for wires ranging from 8 to 4 AWG. Made from cross-linked polyolefin, this tubing is significantly stronger and more durable than traditional PVC options and will not burn or melt under typical operating conditions. Its heat-activated adhesive lining creates an impervious seal against moisture, saltwater, oil, acids, and UV sunlight, ensuring long-lasting protection and strain relief for your electrical connections.

Designed to withstand demanding environments, the tubing shrinks to one-third of its original size at 257°F (125°C) and functions effectively within a temperature range of -40°C to 110°C. The high shrink ratio ensures a snug fit that conforms tightly around wires and components, reducing the risk of damage or corrosion. UL 224 certification confirms that it meets industry standards for safety and performance, making it suitable for marine, automotive, and industrial applications.

Please note that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which may pose health risks. For detailed safety information, visit P65Warnings.ca.gov. The Ancor heat shrink tubing offers an efficient, reliable, and versatile solution for wire insulation, sealing, and strain relief needs in various environments and conditions.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides a secure, sealed connection resistant to saltwater, oil, acids, and sunlight

• Shrinks to approximately 1/3 of its original size for a tight fit

• Operates effectively within a temperature range of -40°C to 110°C

• UL 224 certified for safety and durability
