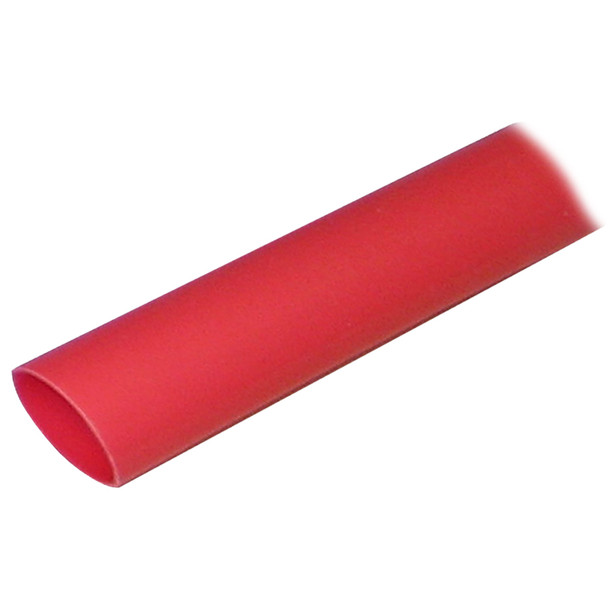

Ancor Adhesive Lined Heat Shrink Tubing 1 Inch x 48 Inches Red, Part 307648

Adhesive Lined Heat Shrink Tubing (ALT) - 1" x 48" - 1-Pack - Red

Package of 1 Red 48"(122cm) long sections with a 1"(25.4mm) diameter that shrinks to 5/16"(7.9mm)

Wire Range: 2-4/0 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief




• Highest shrink ratio - shrinks to 1/3 original size




• Shrinks at 257F / 125C




• Operating temperature range of -40C to 110C




• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This Ancor Adhesive Lined Heat Shrink Tubing offers a reliable solution for protecting and insulating electrical connections. Measuring 1 inch in diameter and extending to 48 inches in length, this high-quality tubing is designed to shrink down to approximately 5/16 inch, providing a secure and strain-relieved fit for wire sizes ranging from 2 to 4/0 AWG. The cross-linked polyolefin construction ensures superior strength compared to PVC tubing and eliminates the risk of burning or melting under typical operating conditions. The heat-activated adhesive lining creates an impervious seal that guards against salt water, oil, acids, and sunlight, making it suitable for demanding environmental conditions. With a high shrink ratio of approximately 3:1, the tubing shrinks at 257°F (125°C) and can operate within a temperature range of -40°C to 110°C, ensuring versatility across various applications. UL 224 certification confirms adherence to safety standards, providing confidence in its performance and reliability. This product is ideal for marine, automotive, and industrial wiring projects where durable insulation and sealing are essential. The package includes one 48-inch section of red heat shrink tubing, ready to enhance your electrical installations with ease and confidence.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides a watertight seal against salt water, oil, acids, and sunlight

• Shrinks to approximately one-third of its original diameter for a secure fit

• Shrinks at 257°F (125°C) for efficient installation

• Operates within a temperature range of -40°C to 110°C

• UL 224 certified for safety and quality
