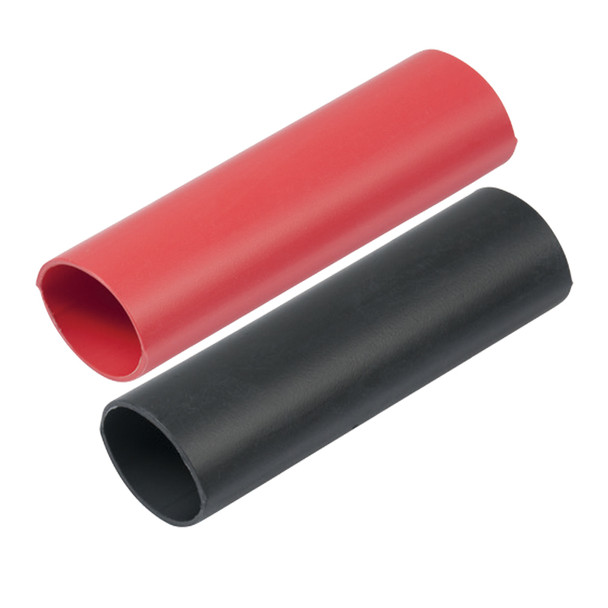

Ancor Heavy Wall Heat Shrink Tubing – 3/4 inch x 3 inch, 2-Pack, Black and Red

Heavy Wall Heat Shrink Tubing - 3/4" x 3" - 2-Pack - Black/Red

Package of 1 Black / 1 Red 3"(7.6cm) long sections with a 3/4"(19mm) diameter that shrinks to 1/4"(6.4mm)

Wire Range: 8-2/0 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief




• 3:1 Ratio




• Shrinks at 257F / 125C




• Operating temperature range of -40C to 110C




• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor Heavy Wall Heat Shrink Tubing offers a durable and reliable solution for protecting and insulating electrical connections. Each pack includes two sections measuring 3 inches in length with an initial diameter of 3/4 inch, which shrinks down to 1/4 inch for a snug fit around wires. Designed to accommodate wire ranges from 8 AWG to 2/0 AWG, these tubes are suitable for a variety of heavy-duty electrical applications. The tubing features a cross-linked polyolefin construction, providing greater strength and heat resistance compared to standard PVC tubing. Its self-adhesive lining activates with heat, creating a seamless and waterproof seal that guards against saltwater, oil, acids, and UV exposure, while also offering strain relief to prevent wire damage over time. The shrinking process occurs at 257°F (125°C), with an expansion ratio of 3:1, ensuring a tight fit around the targeted wire bundle. Operating within a temperature range of -40°C to 110°C, this tubing is suitable for both extreme cold and hot environments. UL 224 certified, it meets rigorous safety standards for electrical insulation and protection. Whether used in marine, automotive, or industrial wiring projects, this heat shrink tubing provides dependable insulation and sealing. Please note that this product contains chemicals known to cause reproductive harm, and appropriate safety precautions should be observed during installation.

Features:

• Cross-linked polyolefin material offers superior strength and heat resistance compared to PVC tubing

• Heat-activated adhesive lining ensures an impervious seal against saltwater, oil, acids, and UV exposure

• Shrinks at 257°F (125°C) with a 3:1 ratio for a secure fit around wires

• Suitable for wire ranges from 8 AWG to 2/0 AWG

• Operates effectively within temperatures from -40°C to 110°C, ideal for harsh environments

• UL 224 certified for safety and reliability
