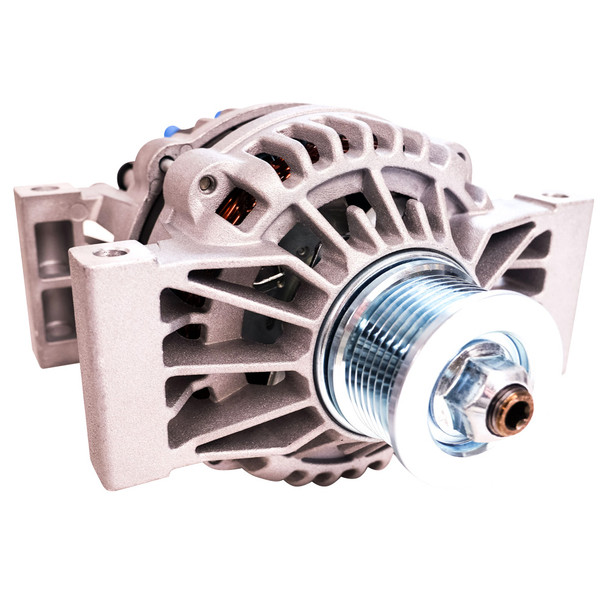

Zeus A220/3000W 12V HD High Output Alternator - Pad Mount
ARCO Zeus Heavy Duty Alternatoris engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.
Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.
Features:
- Replace your noisy generator
- Designed for Extended Duty Operation
- Engineered for high energy production
- Rapidly charges large battery banks
- Coolest operating temperatures for increased performance, with dual internal fans
- Reduces the need for a generator by creating additional power with your engine
- External Regulation Required
- SAE J1171 Certified
Regulation:
- External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.
Specifications:
- Voltage: 12V
- Field Type: P
- Rotor Poles: 12
- Weight: 18.7 lb (8.5 kg)
- Regulation: External Only (EX)
- Cut-In RPM: 1,288
- Maximum Alt RPM: 10,000
- Rear Battery Post: M8 Thread
- Standard Pulley: K8 59 mm
- Shaft Diameter: 7/8 in (22.22 mm)
- Avalanche Diodes: 50 amps
- Max Output (Cold): 249 amps
- Sustained Cruising Output (Hot, 6,000 RPM): 228 Amps
- Sustained Idle Output (Hot, 3,000 RPM): 200 amps
- Max Continuous Operating Temperature: 125C
The ARCO Marine Zeus A220/3000W 12V High Output Alternator is designed to deliver maximum power output for demanding marine and diesel engine applications. Engineered for extended-duty performance, this alternator provides a reliable source of high amperage current essential for rapidly charging large battery banks and supporting high electrical loads. Its robust construction ensures consistent operation even under strenuous conditions, making it a vital component for marine vessels and heavy-duty diesel equipment.
Featuring dual internal cooling fans, the Zeus A220/3000W operates at exceptionally cool temperatures, which helps extend the service life of the unit and maintain optimal performance over long periods of use. The high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine, thereby enhancing operational efficiency and reducing noise and maintenance associated with traditional generators.
This alternator is an external regulation model, compatible with external regulators such as the ARCO Zeus Bluetooth alternator regulator. It includes a terminal block and P-Type harness for easy installation and connection. The unit's specifications include a 12V voltage rating, rotor with 12 poles, and a maximum cold output of 249 amps. It is built with a standard K8 pulley, a shaft diameter of 7/8 inch, and features avalanche diodes rated at 50 amps for increased durability. The alternator's regulation system and high-temperature resilience make it suitable for high RPM environments, supporting maximum altitudes of up to 10,000 RPM while maintaining consistent output.
Designed with heavy-duty applications in mind, the ARCO Marine Zeus A220/3000W is an essential upgrade for anyone seeking reliable, high-performance electrical power from their engine. Its compact yet powerful design ensures it can be integrated smoothly into existing systems, providing peace of mind for marine operators and diesel engine users who demand durability and high output from their alternator. Whether replacing a noisy generator or supporting a large electrical system, this alternator offers a dependable solution that enhances overall power management efficiency.
Features:
- Replace your noisy generator
- Designed for extended duty operation
- Engineered for high energy production
- Rapidly charges large battery banks
- Cool operating temperatures with dual internal fans
- Reduces need for onboard generators by producing additional power
- External regulation required for optimal performance
- SAE J1171 certification ensures quality and safety
