Description

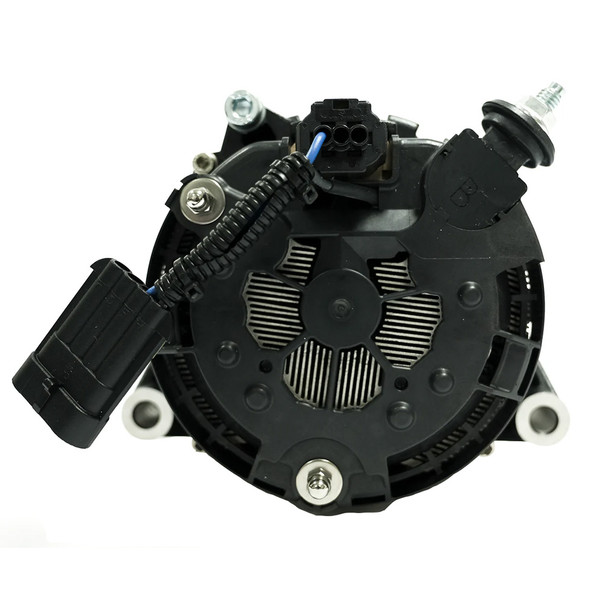

Zeus A8000-48V 8kW Ford Transit Alternator with Isolated Ground K6 Pulley
ARCO Zeus 48V Advantage. Better Technology = Better Performance. High Output/High Amperage Alternator: The Highest Power Output in Its Class.
A8000-48V Advantage
The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps) at 2,500 RPM and almost 6kW (111 Amps) at 4,000 RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!
True 24V Alternators
Instead of using rotors designed for 48 volts, many competitors alternators simply use their 12V rotors, which are less efficient and limit output at all RPMs. In this scenario, your external smart regulator must drastically reduce the field by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors 48V alternators, having a direct impact on the alternators lifespan.
Features:
- Replace your noisy generator!
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance:
- Heat-shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat, keeping the high amp alternator cooler for sustained amperage output.
- For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.
Technical Specifications:
- Voltage - 48V
- Field Type - P
- Rotor Poles - 16
- Stator Size - 138mm
- Frame Size - Large
- Weight - 15.89lbs/7.2kg
- Regulation - External Only (EX)
- Finish - (Black) E-coating
- Cut-In RPM - 1,920 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts 14.8 kW PTO
- Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts 10.5 kW PTO
- Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts 6kW PTO
- Max Continuous Operating Temperature - 100C / 212F
The ARCO Marine Zeus A8000-48V alternator is designed to deliver exceptional power and reliability for Ford Transit vehicles and other heavy-duty applications. Featuring a high-output design, this 48V alternator provides more amperage at lower RPMs compared to conventional units, making it ideal for marine, RV, military, and commercial use. Its advanced engineering ensures continuous operation at over 3kW (55 Amps) at 2,500 RPM and nearly 6kW (111 Amps) at 4,000 RPM, significantly outperforming standard alternators in its class. This increased power capacity enables rapid charging of large battery banks, reducing reliance on noisy external generators and improving overall energy efficiency in your system.
The ARCO Zeus A8000-48V features a native 48V rotor and field current, which enhances efficiency and reduces operating temperatures. Unlike many competitors that use 12V rotors, this design ensures cooler operation, extending the lifespan of the alternator. Its robust construction includes heat-shedding coatings, dual cooling fans, and an external rectifier housed on the exterior, all contributing to optimal thermal management. The alternator is engineered for performance at idle speeds and features an M8 threaded side post for easy installation. Its durable black E-coat finish provides corrosion resistance, suitable for demanding environments.
This alternator is equipped with OEM components, making it suitable for demanding marine, RV, military, and industrial applications. It operates with a cut-in RPM of 1,920 and a maximum RPM of 19,000, ensuring versatile performance. The unit includes a standard 49K6 (6-groove, 49mm) pulley, allowing compatibility with various engine configurations. For enhanced performance, especially with lithium batteries, pairing with the ARCO Zeus Bluetooth Alternator Regulator is recommended. Overall, the Zeus A8000-48V offers a reliable, high-performance power solution designed to meet the needs of professional installers and demanding applications alike.
Features:
- Replaces noisy external generators with high-output alternator power
- Engineered for maximum energy production and efficiency
- Suitable for marine, RV, military, and commercial applications
- Rapidly charges large battery banks for extended operation
- Operates cooler with heat-shedding coatings and dual cooling fans
- Exterior-mounted rectifier enhances thermal management
- OEM components ensure durability and reliability
- Optimized for performance at idle speeds and high RPMs
- Reduces system complexity by creating additional power directly from the engine
- High amperage output with native 48V rotor design for efficiency
- Includes standard pulley and hardware for easy installation
- Maximizes power output at cold and hot operating conditions
