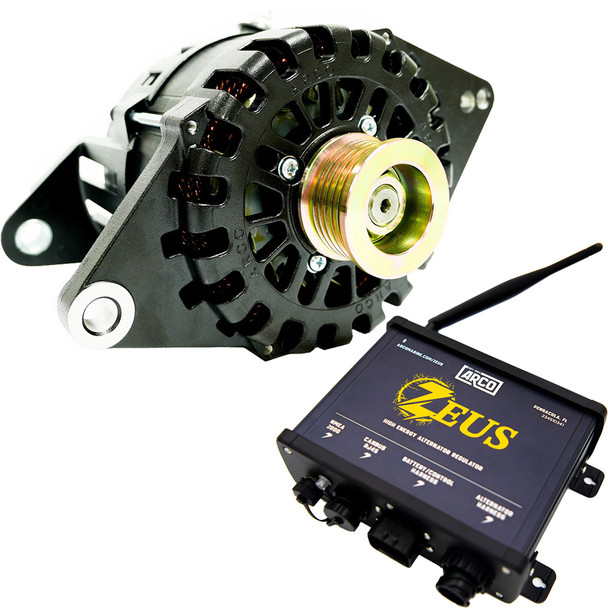

ARCO Zeus A275L J180 4-Inch Alternator with Isolated Ground and High-Energy Regulator 4023-AZ1000

Zeus A275L J180 4 Alternator with Isolated Ground, Terminal Block Zeus High-Energy Alternator Regulator

Zeus A275L J180 4 Alternator with Isolated Ground Terminal Block

The highest power output alternator in its size/class.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance.


• Heat-shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output.


• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.


• SAE J1171 Certified.


• Models are available with internal/external voltage regulators.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 12V


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 14.9 lbs/6.7 kg


• Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)


• Output Voltage - 14.1v (Default)


• Finish - (Black) Cerakote or E-coating


• Cut-In RPM - 1,061 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) - 311 Amps


• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps


• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps


• Max Continuous Operating Temperature - 110C / 230F

Mounting Applications:

• Replaces most Volvo Penta alternators using a 4 J180 saddle-style mount

Zeus High-Energy Alternator Regulator

ARCOs Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.

Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.

Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technicians configurations.

Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.

Zeus also takes into consideration the power of your engine and allows you to configure the alternators power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternators performance on the creation of energy to replenish your battery bank quickly.

Consistent with Zeus ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.

Features:

• Secure Bluetooth connection


• Harnesses, Thermistors, and NMEA 2000 kit included


• Monitors the state of charge


• Can turn your engine into a dedicated generator with generator mode


• Pre-set battery libraries


• Data logging and sharing


• CAN bus and NMEA 2000-integrated networks


• Compatible with all voltage systems (12- 48V)


• IP66 IP67 rated


• 2-Year warranty

Technical Specifications:

• Enclosure dimensions without antenna - 8.2 x 5.9 x 2.4


• Enclosure dimensions with antenna - 8.2 x 7.5 x 2.4


• Weight - 1.7 lbs

In the Box:

• Zeus high-energy alternator regulator


• Battery wiring harness


• Alternator wiring harness


• 2 thermistors

The ARCO Zeus A275L J180 4-inch alternator is engineered for high power output in a compact size, making it ideal for marine, RV, military, and commercial applications. This alternator features a robust design with heat-shedding coatings and exterior-mounted rectifiers that ensure cool operation and sustained performance. Its ability to rapidly charge large battery banks while maintaining the coolest operating temperatures enhances overall system efficiency and reliability. With OEM components and dual cooling fans, this alternator is built for demanding environments, providing consistent power even at idle speeds and reducing the need for a separate generator by leveraging your engine's power. The alternator's design includes a 14.1V output regulation, a large frame size, and a weight of just under 15 pounds, ensuring durability and ease of installation. It replaces most Volvo Penta alternators that use a 4 J180 saddle-style mount, offering a seamless upgrade for compatible systems. The high-energy alternator regulator, ARCO Zeus, is a standout feature that incorporates Bluetooth connectivity and a native app compatible with iOS and Android devices, allowing users to easily install, configure, and monitor their system remotely. This regulator can read two shunts simultaneously—battery and alternator—enabling precise control over charge and temperature management, which optimizes battery life and performance. The Zeus regulator supports 12- to 48-volt systems, including lithium and lead-acid batteries, with pre-set libraries and customizable profiles for optimal charging. Its advanced features include the ability to turn your engine into a dedicated generator with a simple button press, manage power take-off from the engine, and log data for troubleshooting or remote support. The system includes harnesses, thermistors, and network integration options, offering a comprehensive solution for energy management. Certified SAE J1171 and rated for maximum continuous temperatures of 230°F, this alternator and regulator combination provides dependable, high-energy output in a compact, marine-grade package. The entire setup is proudly made in the USA, ensuring quality and longevity for demanding applications.

Features:

• High power output with rapid charging for large battery banks

• Engineered for marine, RV, military, and commercial applications

• Heat-shedding coatings and exterior rectifiers for cool operation

• Dual cooling fans ensure optimal performance at all times

• Compatible with OEM components and replaces most Volvo Penta alternators

• Bluetooth-enabled Zeus high-energy regulator with native app

• Supports 12-48V systems including lithium and lead-acid batteries

• Can convert engine into a dedicated generator with generator mode

• Includes harnesses, thermistors, and network integration kits

• SAE J1171 certified with robust construction for demanding environments
