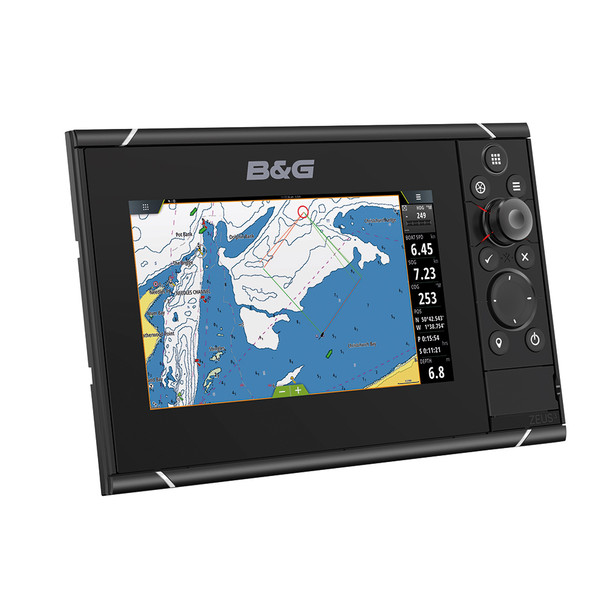

B&G Zeus3 7-Inch Multifunction Display with Insight Charts

Zeus3 7" Multifunction Display with Insight Charts

Updated Features:

• Advanced WindPlot


• C-MAP Easy Routing and Navionics Autorouting support


• Easy-to-interpret C-MAP Navigation Palette


• Advanced WindPlot: provides users with a clearer view of wind trends, easier comparison of True Wind Speed (TWS) to True Wind Direction (TWD) and better display in small panels for use alongside charts, RacePanel or SailSteer features.


• C-MAP Easy Routing and Navionics Dock-to-Dock Autorouting: You will navigate faster and easier with automatic route planning. Menu activated, the feature automatically plots the shortest and safest course based on a boats draft, beam and height, creating a route around a landmass and other fixed navigational hazards. Requires C-MAP MAX-N+ charts, Navionics+ or Navionics Platinum charts.


• C-MAP Navigation Palette: Enhances the readability of C-MAP charts, especially near shore, making it easy to tell where the boat is in relation to a channel, navaid, ledges and drop-offs, or a point of land.

The Zeus3 7 is a complete chartplotter navigation system for blue water cruisers and regatta racers. This high-performance multifunction display features a 7-inch widescreen display, incorporating SolarMAX HD technology for brilliant daytime visibility and ultra-wide viewing angles. To ensure reliable control in all conditions and situations, Zeus3 incorporates an all-weather touchscreen that works even while wet. It combines this with an integrated rotary dial and keypad capable of controlling all display functions. Both sets of controls can be used simultaneously, or Zeus3 can be switched to non-touch mode for dependable operation under the most extreme conditions.

A high-performance processor enables responsive operation and quick chart redraw while moving, panning or zooming. Zeus3 is powered by BG software designed specifically for sailors, and packed with a wide array of sail-specific functionality. See all key sailing data on a single screen with SailSteer, view laylines and tacking angles overlaid on charts, and plan more accurately with Sailing Time arrival estimates that factor in the realities of travel by wind. RacePanel delivers a range race-proven functionality including integration with BG H5000 tactical systems for additional analytical and predictive capabilities.

Built-in Wi-Fi lets you access charts, weather information, software updates and online support directly from your display via any Wi-Fi internet hotspot. GoFree Wi-Fi also lets you mirror your Zeus3 screen on a compatible smartphone, and control your Zeus3 display from a compatible tablet, for an extra display that you can use anywhere on board. See what lies ahead beneath the water with built-in support for ForwardScan sonar, and above the water with plug-and-play support for Broadband Radar and AIS solutions. Enhance your situational awareness in crowded harbours and during races and regattas with tools like MARPA target tracking and AIS overlay. Complete autopilot integration means short-handed and single-handed sailors can take immediate control of their BG autopilot system from any BG Zeus3 display on board.

Zeus3 also connects seamlessly to a wide range of sensors, instruments, displays, expansion modules, and accessories; allowing you to create a fully-integrated electronics solution to provide greater safety, performance, and enjoyment on the water.

Specifications:

• Dimensions: 9.4"W x 5.9"H x 3.5"D


• Display: 7" IPS optically bonded TFT


• Resolution: 600 x 1024


• Mounting Type: Bracket(supplied) or Panel Mount


• External Storage: 2 MicorSD, max. 32GB each


• Internal Storage: 16GB


• Supply Voltage: 10- 31.2 VDC


• Wifi: Yes


• Bluetooth: Yes


• Video: 2 x composite (RCA connectors) video inputs


• Ethernet: Yes


• NMEA 2000: Yes


• NMEA 0183: Yes


• Waypoints, Routes, Tracks: 6000 Waypoints, 500 Routes with 100 Max Route Points, 50 Tracks with up to 12,000 track points


• Preloaded with Insight Chart


• Cartography Supported: Insight, Navionics (Gold, Nav+, Platinum+), C-MAP (MAX N, MAN N+) NV Digital(Raster US Charts)


• Internal GPS Antenna


• Autopilot Support: Full Autopilot Control and commissioning

The B&G Zeus3 7-inch MFD Display with Insight Charts offers advanced navigation features tailored for blue water cruisers and regatta racers alike. Equipped with SolarMAX HD technology, the display delivers bright, crystal-clear visuals in direct sunlight, ensuring excellent visibility during daytime operation. The all-weather touchscreen combined with an integrated rotary dial and keypad provides reliable control even in challenging weather conditions. Users can switch seamlessly between touch and physical controls, maintaining operational flexibility during demanding sailing scenarios.

This high-performance multifunction display is powered by BG software designed specifically for sailors, providing a comprehensive suite of sail-specific functionalities. The SailSteer interface consolidates key sailing data onto a single screen, displaying laylines, tacking angles, and weather overlays for better situational awareness. Features like Sailing Time estimates enable precise voyage planning by considering wind conditions, while RacePanel offers race-proven tools including integration with BG H5000 tactical systems for strategic decision-making.

Connectivity options such as built-in Wi-Fi and Bluetooth allow users to access charts, weather updates, and software support directly from the display. GoFree Wi-Fi expands functionality by enabling mirroring and remote control via compatible smartphones and tablets, offering flexibility and convenience across the vessel. The Zeus3 supports a range of sonar, radar, and AIS solutions, including ForwardScan, Broadband Radar, and MARPA target tracking, enhancing both safety and navigation efficiency in crowded harbors or during races. Complete autopilot integration allows for easy control of BG autopilot systems, making short-handed sailing more manageable.

Designed to integrate seamlessly with various sensors, instruments, and expansion modules, the Zeus3 creates a fully customized electronic navigation system tailored to your boating needs. Its robust construction and extensive features make it suitable for demanding maritime environments, ensuring reliable performance on every voyage. Whether navigating coastal waters or racing offshore, the B&G Zeus3 7

Features:

• Advanced WindPlot: Offers clearer wind trend visualization and improved display in small panels for combined chart, RacePanel, or SailSteer use.

• C-MAP Easy Routing and Navionics Autorouting Support: Automatically plots the shortest, safest routes considering draft, beam, and height, simplifying navigation around hazards.

• C-MAP Navigation Palette: Enhances chart readability near shorelines, channels, and landpoints for precise situational awareness.
