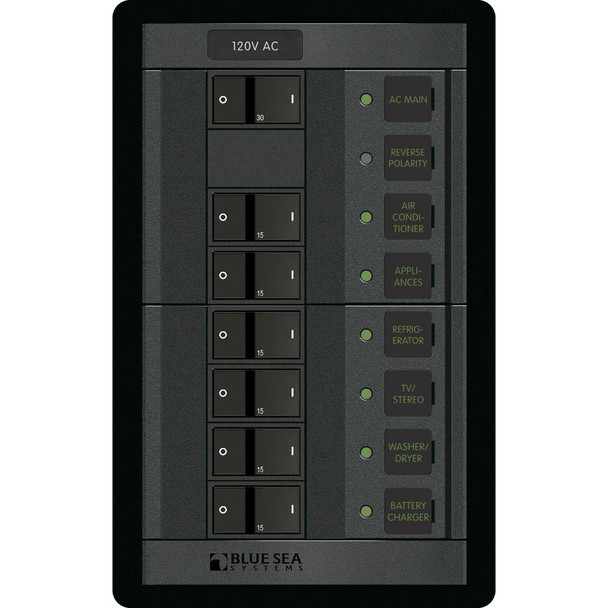

Blue Sea Systems 1202 120V AC Main and 6-Position Vertical Circuit Breaker Panel

120 Volt AC Main + 6 Position - Vertical

Features:

• All circuit label positions are backlit

• "ON" indicating LEDs installed in all circuit positions

• Includes 4206-Square Format Label Set

Specifications:

• Positions: 6

• Nominal Voltage: 120V AC

• Maximum Amperage*: 100A

• Height: 7.75" (196.85mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 2.70lb (1.22kg)

Includes:
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (Main)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1202 model is a reliable and compact solution for managing electrical circuits in marine, RV, or industrial applications. Designed with a vertical orientation, this panel features six circuit positions, each protected by a 15A single-pole circuit breaker, ensuring safe and efficient power distribution. The panel's backlit labels and 'ON' indicators provide clear visibility of circuit status, simplifying operation and troubleshooting in low-light conditions. Its robust construction and comprehensive labeling set make it suitable for demanding environments where clarity and dependability are essential. The included 4206-Square Format Label Set allows for easy customization and organization of circuits, further enhancing usability and safety.

Features:

• All circuit label positions are backlit for enhanced visibility in dim environments

• 'ON' indicating LEDs installed in all circuit positions for clear status indication

• Includes 4206-Square Format Label Set for easy circuit identification
