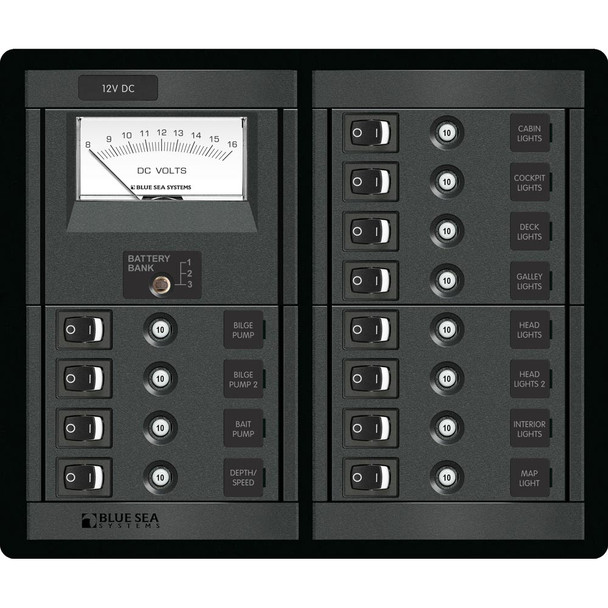

Blue Sea Systems 1464 12-Position Switch with Meter Square Panel

12 Position Switch CLB + Meter Square

Features:

• Available with voltmeters and ammeters

• Panels with meters include a toggle switch to monitor voltage on up to three battery banks

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 12

• Nominal Voltage: 12V DC

• Maximum Amperage*: 120A

• Height: 7.75" (196.85mm)

• Width: 9.25" (234.95mm)

• Depth: 3.50" (88.9mm)

• Weight: 4.29lb (1.95kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(12) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(12) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1464 12-Position Switch with Meter Square Panel offers a reliable solution for managing multiple battery banks in marine, RV, and industrial applications. This panel features a 12-position switch configuration that allows users to easily select and monitor different power sources. The panel includes options for voltmeters and ammeters, providing real-time voltage readings and current flow data for up to three battery banks, enhancing system oversight and safety. The integrated toggle switch facilitates simple operation, and the included 4205-Square Format Label Set helps with clear system labeling for quick identification and maintenance.
Constructed with durability and precision in mind, the panel measures approximately 7.75 inches in height, 9.25 inches in width, and 3.50 inches in depth. It is designed to operate on a nominal 12V DC system with a maximum amperage of 120A, making it suitable for a variety of power management setups. The panel’s sturdy build weighs about 4.29 pounds, ensuring stability during use and installation. The package includes twelve 7054 Push Button Reset Circuit Breakers, twelve 7480 Rocker Switches, a basic DC label kit, and an analog voltmeter, providing a comprehensive control and monitoring solution.
This switch panel is ideal for those seeking a robust, user-friendly interface for electrical system management. It is engineered to support safe operation with appropriate fuses and wiring, and its features are tailored to meet the demands of complex electrical setups. The product complies with safety standards and includes a detailed owner’s manual for installation and maintenance guidance. Please note that this product contains chemicals that may pose health risks, as detailed in the safety warning, and should be handled with proper care.

Features:

• Available with voltmeters and ammeters for comprehensive system monitoring

• Panels include a toggle switch to monitor voltage on up to three battery banks

• Includes a 4205-Square Format Label Set for clear labeling and identification
