Description

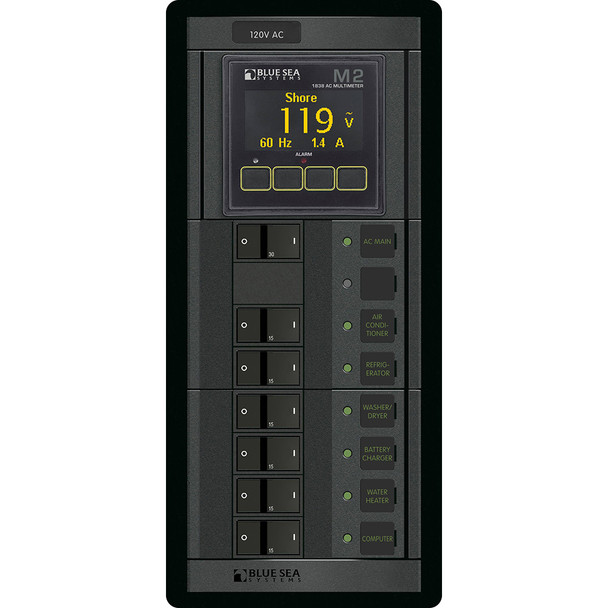

1505 - 360 Panel - ELCI + 6 Position 120V AC Flat Rocker with M2 AC Multimeter
Part of the Blue Sea Systems Battery Management Panels. This one standard panel features protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.
Features:
- Provides Main circuit protection with branch circuits
- Green ON indicating LEDs
- Backlit label positions
Technical Specifications:
- Positions - Six (6) + Main
- Actuator Style - Flat Rocker
- Meter - M2 AC Multimeter
- Nominal Voltage - 120V
- Circuit Breaker Type - A-Series: 6 Branch (15A) and Main (30A)
- Dimensions (H x W x D) - 10.75" x 4.88" x 3.99" (273 x 124 x 101mm)
In the Box:
- 1505 Panel
- Instruction Manual
*Sold as an Individual
The Blue Sea Systems 1505 Battery Management Panel offers comprehensive electrical protection for your marine or RV applications. This panel features a flat rocker switch design with a built-in M2 AC multimeter, providing real-time voltage monitoring at 120V. It is part of the Blue Sea Systems Battery Management Series, designed to enhance safety by reducing fire and shock hazards caused by faulty wiring or appliances. The panel includes a main circuit breaker and six branch breakers, each rated at 15 amps, with a main breaker rated at 30 amps, ensuring reliable overcurrent protection for multiple circuits.
The panel's backlit label positions and green LED indicators for 'ON' status provide clear visibility and operational feedback in various lighting conditions. Its robust construction measures approximately 10.75 inches in height, 4.88 inches in width, and 3.99 inches in depth, making it suitable for installation in tight spaces while maintaining durability.
Included in the package are the 1505 panel and an instruction manual to facilitate installation and setup. Designed for 120V AC systems, this panel is ideal for managing multiple circuits in marine, RV, or off-grid power setups, ensuring safe and efficient electrical distribution. The panel's sleek design and reliable performance make it a critical component for maintaining system safety and monitoring voltage levels in demanding environments.
Features:
- Provides main circuit protection along with six branch circuits
- Green LED indicators display ON status clearly
- Backlit label positions for easy circuit identification
- Flat rocker actuator style for simple operation
- Includes M2 AC multimeter for real-time voltage monitoring
- Rated for 120V AC systems with 15A branch breakers and 30A main breaker
- Compact, durable design suitable for tight installation spaces
