Description

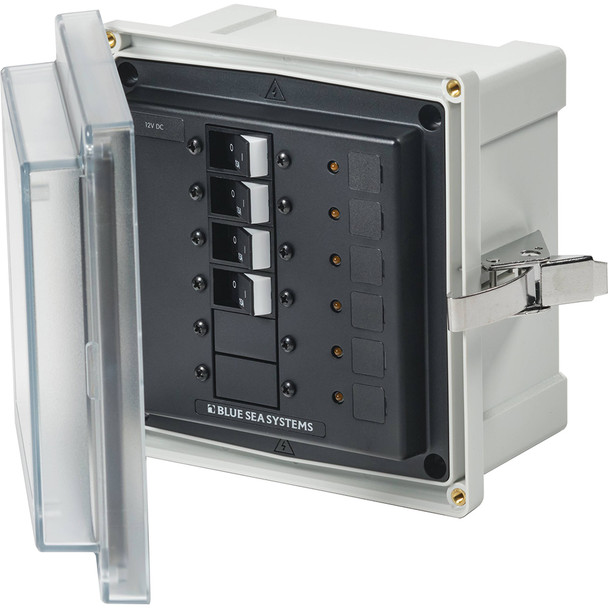

3134 - SMS Panel Enclosure with 4 Branch (12/24V) - 12/24V DC
The 3134-panel enclosure for DC circuit breakers and other large frame devices.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 4 x Branch 12/24V DC (15A)
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 6 x Amber ON indicating 12/24V DC
In the Box:
- 3134 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
The Blue Sea Systems 3134 SMS Panel Enclosure is designed to house DC circuit breakers and large frame devices for reliable power management. It features a durable glass-filled polycarbonate base that provides strength and impact resistance, ensuring long-term durability in demanding environments. The enclosure's clear cover allows for quick visual inspection of circuit breaker status without opening the unit, enhancing safety and convenience. Its overlapping cover design offers increased structural integrity and gasket protection, while the oversized, formed-in-place seamless polyurethane gasket ensures a waterproof seal to prevent moisture ingress. An easily removable stainless steel hinge pin facilitates unobstructed installation and maintenance, and the stainless steel latch secures the cover firmly without penetrating the enclosure, maintaining the integrity of the waterproof seal. The enclosure includes blank circuit positions that accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers, providing flexibility for various applications. Six waterproof glands are included to protect wiring entry points, and integrated LED lights offer backlighting and ON indicator for easy operation in low-light conditions. Designed to support four 12/24V DC circuit breakers rated at 15 amps each, this enclosure measures approximately 7.6 inches high, 7.4 inches wide, and 4.7 inches deep overall, with the enclosure itself measuring 6 inches on each side. It features six amber LEDs to indicate power status, ensuring clear visibility of operational states. The package includes the enclosure, six waterproof glands, labels, mounting hardware, and an instruction manual for straightforward installation. Ideal for marine, RV, or industrial applications, the Blue Sea Systems 3134 enclosure combines robust construction with versatile features to secure and protect critical electrical components in a compact form factor.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base for durability
- Clear cover for easy circuit breaker status viewing
- Overlapping cover for strength and gasket protection
- Seamless polyurethane gasket for waterproof sealing
- Removable stainless steel hinge pin for easy installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions for Carling Technologies A and C Series breakers
- Includes waterproof glands for wiring protection
- LED backlighting and ON indicator for operational clarity
