Description
Features
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals
- Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
- Easy to open clip on cover
- Breakouts allow wire access in two directions
- Accepts ring terminals

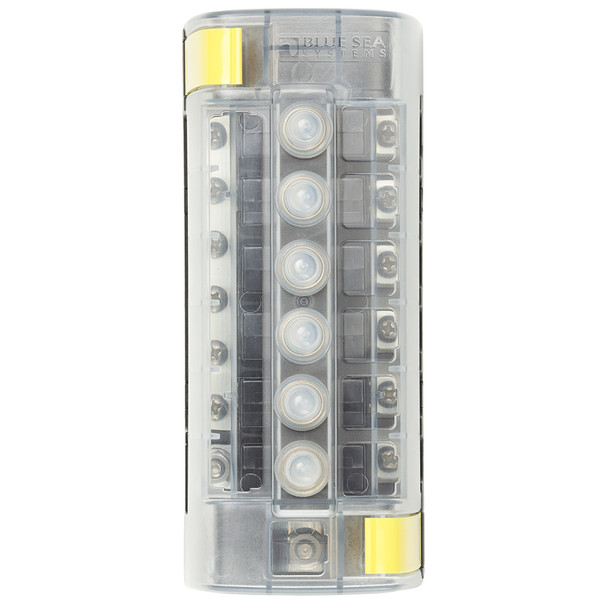

- Optional push button waterproof boots or dress nuts can be installed over cover
Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10 C
Maximum Operating Temperature: 60 C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

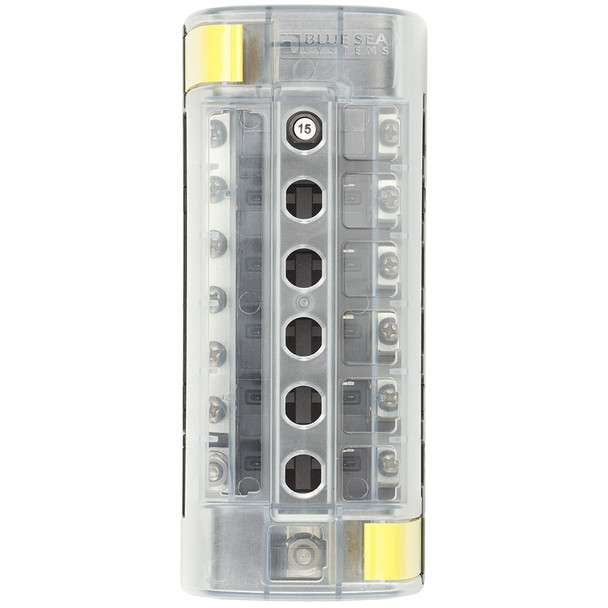

The Blue Sea Systems 5052 ST CLB Circuit Breaker Block is a versatile and reliable component designed for marine and industrial electrical systems. This 6-position breaker block features quick connect clips that allow for easy and secure installation of circuit breakers, reducing assembly time and ensuring a solid connection. Constructed with tin-plated copper busses and screw terminals, it provides excellent conductivity and corrosion resistance for long-term performance. The clear insulating cover with square format label recesses not only enhances safety but also satisfies ABYC and USCG insulation standards, making it suitable for marine applications. An easy-to-open clip on the cover simplifies maintenance and inspection processes, while breakout sections enable wire access in two directions for flexible wiring configurations. The breaker block accepts ring terminals, offering additional versatility in connection options. Optional waterproof boots or dress nuts can be installed over the cover for enhanced protection against moisture and environmental factors, making it an ideal choice for harsh conditions. Designed to support up to six circuits with a maximum amperage of 100A per block and 32A per circuit, it operates safely within a voltage range of up to 32V DC. Mounting is straightforward with #8 screws or nuts, and the device features a negative bus for comprehensive circuit grounding. With a height of approximately 6.69 inches and mounting centers spaced 5.63 inches apart, the breaker block is suitable for various panel layouts. Its robust construction and reliable connections make it an essential component for electrical systems requiring organized circuit management and safety compliance.
Features:
- Quick connect clips allow circuit breakers to snap easily into place
- Tin-plated copper busses and screw terminals for reliable conductivity
- Clear insulating cover with label recesses meets ABYC/USCG insulation standards
- Easy-to-open clip on cover for maintenance access
- Breakouts enable wire access in two directions
- Accepts ring terminals for versatile wiring options
- Optional waterproof boots or dress nuts for environmental protection
