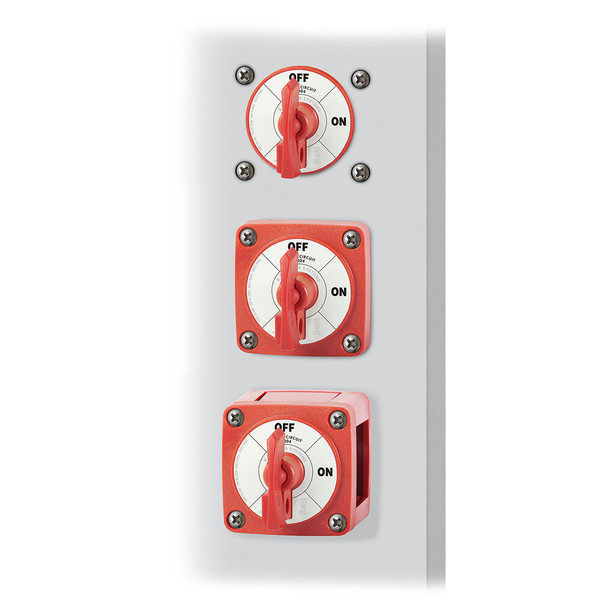

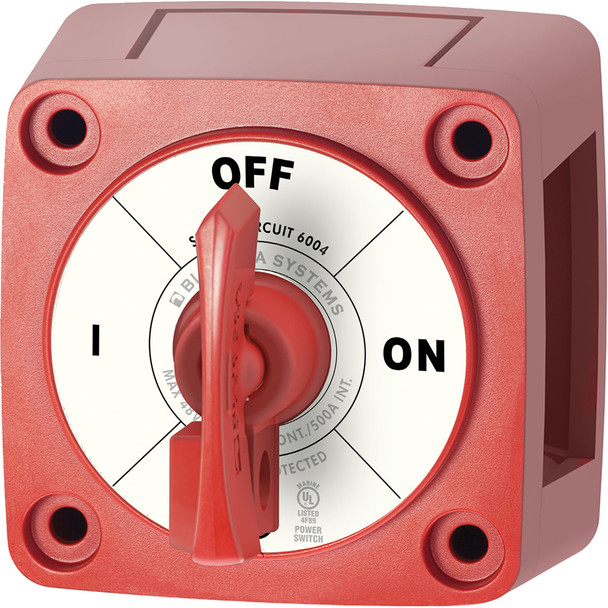

Blue Sea Systems 6004 Single Circuit ON-OFF Switch with Locking Key - Red

• Tin-plated copper studs for maximum conductivity and corrosion resistance

• Studs accept 3/8" (M10) ring terminals

• 7/8" (22 mm) stud length accepts multiple cable terminals

• Blue Sea Systems one-piece terminal stud design never loosens over time

• One-piece stainless flange nuts ensure safe and secure connections

• Isolating cover protects rear contacts

• Breakout tabs allow wire access in any direction

• Switch Type: Single Circuit ON-OFF

• Color: Red

• Maximum Voltage: 48V DC

• Continuous Rating: 300A

• Intermittent Rating: 500A

• Cranking Rating 30 sec: 900A

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 6004 is a robust single circuit ON-OFF switch designed for marine and industrial applications, offering a continuous rating of 300 amps suitable for outboards and small gasoline or diesel engines. Its red color enhances visibility and safety, making it easy to identify the switch location. Built with tin-plated copper studs, this switch ensures maximum conductivity and resistance to corrosion, extending its durability in harsh environments. The studs are compatible with 3/8" (M10) ring terminals and feature a 7/8" (22 mm) length that accommodates multiple cable terminals, simplifying installation and wiring connections. The one-piece terminal stud design prevents loosening over time, while the stainless flange nuts provide secure, safe connections. An isolating cover protects rear contacts from accidental contact and environmental elements, enhancing safety and longevity. Breakout tabs allow for wiring access in any direction, providing flexibility during installation and maintenance. This switch supports a maximum voltage of 48V DC, with an intermittent rating of 500A and a cranking rating of 900A for 30 seconds, making it suitable for demanding starting conditions. The switch's reliable construction and high current capacity make it an ideal choice for marine and vehicle electrical systems requiring a durable, high-current disconnect. Please refer to the owner’s manual available online for detailed installation instructions. It’s important to note that this product may contain chemicals known to cause reproductive harm, according to California’s Proposition 65. Proper handling and disposal are recommended to ensure safety and environmental compliance.

Features:

• Single circuit ON-OFF switch with locking key for secure operation

• 300 amps continuous rating suitable for outboards and small engines

• Tin-plated copper studs for optimal conductivity and corrosion resistance

• Studs accept 3/8" (M10) ring terminals for versatile wiring options

• 7/8" (22 mm) stud length to accommodate multiple cable terminals

• One-piece terminal stud design prevents loosening over time

• Stainless flange nuts ensure safe and secure connections

• Isolating cover protects rear contacts from environmental damage

• Breakout tabs allow wiring access in any direction

• Maximum voltage of 48V DC with high intermittent and cranking ratings
