Description

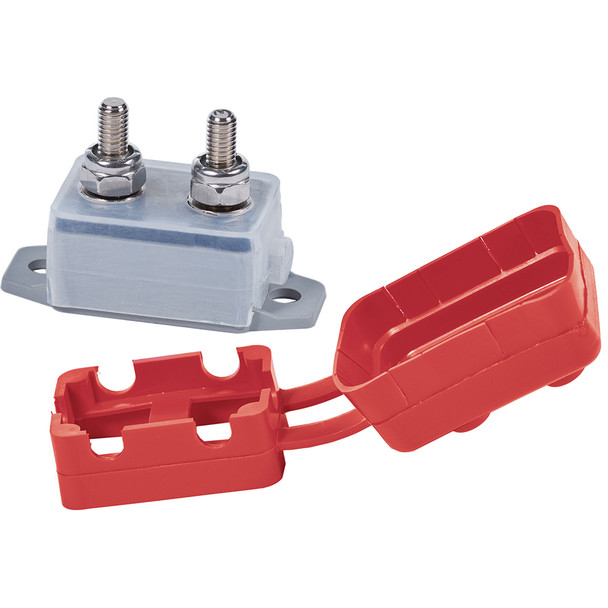

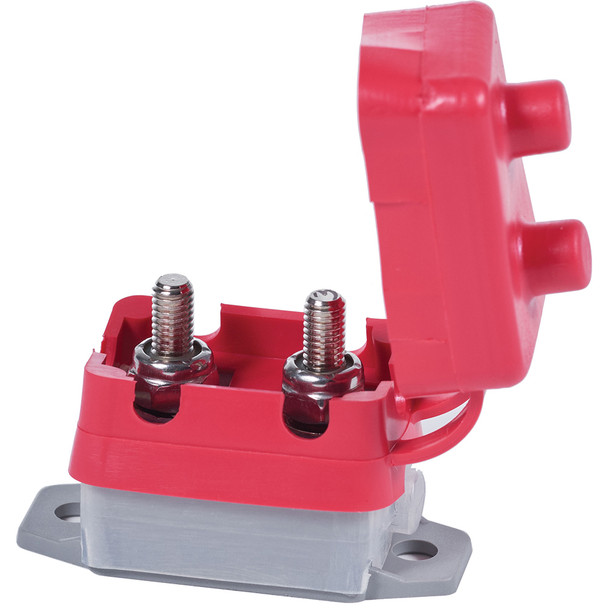

7156 Short Stop Circuit Breaker - 40A
- Corrosion Resistant Material
- IP 64 Water Resistant Boot
- Push to Reset Only
- Interrupt Capacity: 2,500A @ 28VDC
- Red insulating boot included in retail package
Specifications
- Amperage: 40A DC
- Maximum Voltage: 28V DC
- Interrupt Capacity: 2500A @ 28V DC
- Minimum Operating Temperature: -10 C
- Maximum Operating Temperature: 60 C
- Screw Terminal Torque: 24 in-lb (2.71 Nm)
- Terminal Stud: #10-32"
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Blue Sea Systems 7156 Short Stop Circuit Breaker is designed for reliable protection in demanding electrical systems. Built with corrosion-resistant materials, this breaker ensures durability in harsh environments. The IP 64 water-resistant boot provides additional protection against water ingress, making it suitable for marine, automotive, and other outdoor applications. The breaker features a simple push to reset mechanism, allowing for quick and easy reset after tripping, minimizing downtime and maintenance efforts. With an interrupt capacity of 2,500 amps at 28V DC, it can handle high surge currents safely, providing dependable circuit protection.
The breaker operates within a voltage range up to 28V DC, with a maximum operating temperature of 60°C and a minimum of -10°C. Its screw terminal connections are rated for a torque of 24 in-lb, ensuring secure and stable electrical connections. The included red insulating boot offers added insulation and safety during installation and operation. Compatible with #10-32
Features:
- Corrosion resistant construction for durability
- Water-resistant IP 64 boot for outdoor protection
- Push to reset operation for ease of use
- High interrupt capacity of 2,500A at 28V DC
- Secure screw terminal connections with 24 in-lb torque
- Includes red insulating boot for safety and insulation
