Description

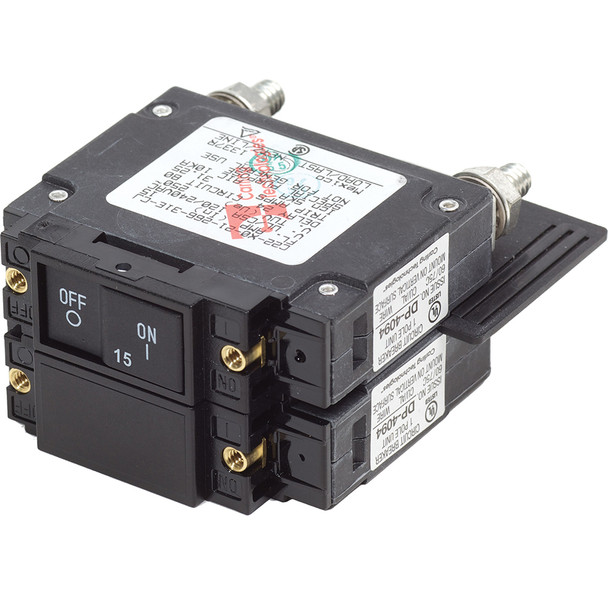

7462 UL-489 Circuit Breaker - 15A Flat Rocker
Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
Specifications:
- Amperage: 15A AC
- Actuator Style: Flat Rocker
- Poles: 2
- Maximum Voltage: 240V AC
- Circuit Breaker Type: Magnetic HydraulicTrip free
- Terminal Stud Torque: 35 in-lb (3.95 Nm)
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -40 C
- Maximum Operating Temperature: 85 C
- Mounting Screw: #6-32 SS
- Mounting Screw Torque: 8 in-lb (0.9 Nm)
- Switching Cycles: 10000
- Weight: 0.23lb (0.1 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Blue Sea Systems 7462 UL-489 Circuit Breaker is designed for reliable circuit protection in demanding marine environments, meeting UL-489 standards essential for Navy, Army, Coast Guard vessels, and other maritime applications. Featuring a 15Amp AC capacity, this breaker ensures safe operation within voltage ranges up to 240V AC, providing dependable circuit interruption during overloads or faults. Its magnetic hydraulic trip mechanism allows for quick response to electrical faults, minimizing potential damage and enhancing safety on vessel systems.
Constructed with a flat rocker actuator and two poles, this circuit breaker offers straightforward operation and easy installation. The mounting requires a #6-32 stainless steel screw, with a torque specification of 8 in-lb, ensuring a secure fit under various conditions. Rated for 10,000 switching cycles, it maintains durability and longevity, even under frequent use. The breaker is rated for operation across a wide temperature range from -40°C to 85°C, making it suitable for the harsh marine environment. The terminal studs are tightened to 35 in-lb torque, ensuring solid electrical connections, while the unit's compact weight of approximately 0.23 pounds facilitates flexible installation options.
Designed for safety and compliance, this UL-489 breaker provides reliable circuit protection for marine electrical systems, with an interrupt capacity of 5,000 amps to handle high fault currents. Its robust construction and high switching cycle count make it a dependable choice for vessel electrical panels, ensuring consistent performance over time. Please be aware that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which is recognized by California as a reproductive hazard. For detailed safety information, visit P65Warnings.ca.gov.Whether for new installations or replacement, the Blue Sea Systems 7462 UL-489 Circuit Breaker offers a combination of safety, durability, and compliance essential for marine electrical systems. Its straightforward design and proven reliability make it an essential component for maintaining electrical safety aboard vessels.
Features:
- UL-489 compliant circuit breaker suitable for marine and vessel applications
- 15 Amp AC capacity with maximum voltage of 240V AC
- Magnetic hydraulic trip mechanism for quick fault response
- Flat rocker actuator with two poles for easy operation
- Mounting with #6-32 stainless steel screw and secure torque specifications
- Rated for 10,000 switching cycles for durability
- Wide operating temperature range from -40°C to 85°C
- High interrupt capacity of 5,000A for handling high fault currents
- Compact and lightweight design for flexible installation
- Includes safety warning regarding chemical exposure
