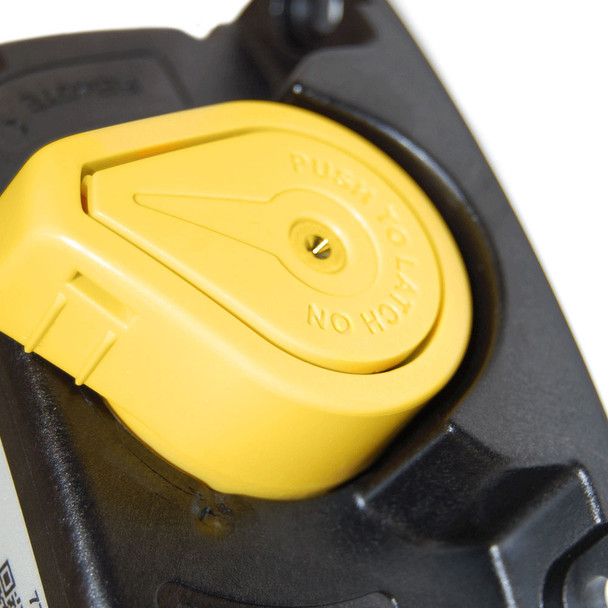

7702100 ML Solenoid 12V 500A with Manual Control Deutsch Connector
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.
Features:
- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
Specifications:
- Control Circuit Connection: Deutsch DTM
- Nominal Voltage: 24VDC
- Coil Function: Bi-Stable
- Mounting: #10
- Amperage Operating Current Continous: 0mA
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Control Circuit Voltage: 18-32VDC
- Continuous Rating: 500A
- Intermittent Rating: 700A (5 min)
- Cranking Rating 30 Seconds: 1450A DC
- Cable Size to Meet Ratings: 2x (4/0)
- Live Current Switching: 300A@12VDC
- Master Control Switch Capability: No
- Mechanical Endurance: 100,000 Cycles
- Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
- Terminal Stud Length: 0.875" (22.23 mm)
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 1.75lb (0.79 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Blue Sea Systems 7702100 ML Solenoid is a high-performance, 24VDC magnetic latching switch designed for demanding electrical applications requiring reliable high-current switching. Capable of handling continuous loads up to 500 amps and intermittent surges up to 700 amps for five minutes, this solenoid ensures robust power management in automotive, marine, and industrial systems. Its bi-stable coil design allows for efficient energy use, holding the switch in position without continuous power, which reduces overall energy consumption and heat generation. Constructed with silver alloy contacts, it offers high reliability and durability for switching live loads, making it suitable for critical circuit operations. The solenoid features 3/8"-16 tin-plated copper studs that provide excellent conductivity and resistance to corrosion, ensuring long-term performance even in harsh environments. The device includes a manual override knob for added safety and control, allowing operation with or without power, and provides LOCKED OFF functionality for maintenance or servicing. An LED indicator (optional) can be used to remotely display the switch state, enhancing system monitoring capabilities. The unit mounts easily using a #10 mounting bracket and includes label recesses for circuit identification, facilitating installation and troubleshooting. Designed with a control circuit connection compatible with Deutsch DTM connectors, it supports control voltages between 18-32VDC, making it versatile across various power systems. The solenoid is engineered for durability, with a mechanical endurance of 100,000 cycles, and is built to meet rigorous specifications for torque, terminal clearance, and cable requirements. Weighing approximately 1.75 pounds, it provides a reliable, high-current switching solution for complex electrical systems. Please note that this product contains chemicals known to cause reproductive harm under California law, and proper handling precautions are recommended.
Features:
- Manual override knob for safety and servicing with LOCKED OFF capability
- LED output (optional) for remote switch state indication
- 3/8"-16 tin-plated copper studs for optimal conductivity and corrosion resistance
- 7/8" (22 mm) stud length accommodates multiple cable terminals
- Label recesses for easy circuit identification
- Silver alloy contacts for high reliability in live load switching
- Control circuit connection compatible with Deutsch DTM connectors
- Bi-stable coil design for efficient power usage
- Mounts easily with #10 mounting hardware
- Designed for high durability with 100,000 mechanical cycles
