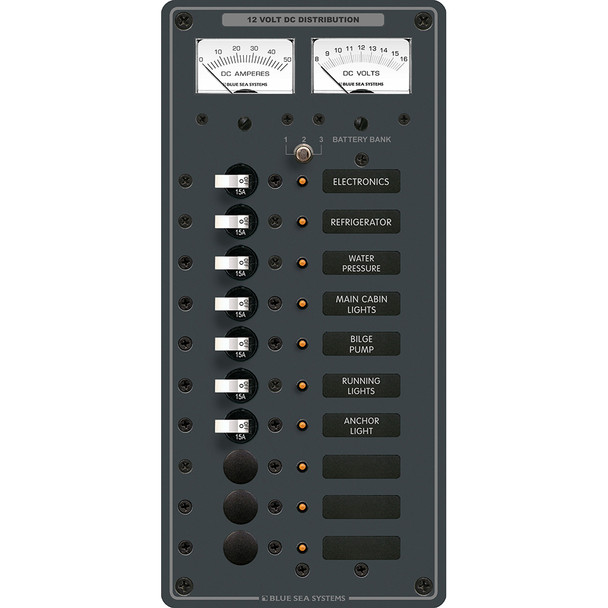

Blue Sea Systems 8082 DC 10-Position Toggle Branch Circuit Breaker Panel

8082 DC 10 Position Toggle Branch Circuit Breaker Panel

Features:

• All positive, negative and grounding buses installed, fully pre-wired
• Includes set of 30 common DC labels
• Label backlighting pre-installed
• All LEDs installed
• Detailed installation instructions and cutout template
• 8028, 8-16 Volt DC Micro Voltmeter
• 8041, 0-50 Amp DC Micro Ammeter
• Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter
• 7 15A Single Pole circuit Breakers

Specifications:

• Positions: 10
• Nominal Voltage: 12v DC
• Maximum Amperage: 50A
• Height: 11.25"
• Width: 5.25"
• Depth: 2.5"
• Weight: 3.35 lbs

Included:

• (7) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
• (1) 8030 Basic DC Panel Label Set - 30 Labels
• (1) 8028 DC Micro Voltmeter - 8 to 16V DC (Meter)
• (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8082 DC 10-Position Toggle Branch Circuit Breaker Panel is designed for reliable power management in 12V DC systems. This panel comes fully pre-wired with all positive, negative, and grounding buses installed, simplifying installation and ensuring a secure connection. It includes a set of 30 common DC labels with backlighting pre-installed for clear identification of circuits, along with all necessary LEDs already installed. Detailed installation instructions and a cutout template are provided to facilitate straightforward setup. The panel supports up to 50 amps per circuit and features seven 15A single-pole circuit breakers, making it suitable for various electrical configurations in marine, RV, or industrial applications. The panel is compatible with optional upgrades to 24V DC systems using the 8243 micro voltmeter, providing flexibility for future expansion or system upgrades. Its compact dimensions make it easy to integrate into existing electrical layouts without sacrificing space or functionality.

Features:

• All positive, negative, and grounding buses installed and fully pre-wired for quick setup

• Includes a set of 30 common DC labels with backlighting pre-installed for easy circuit identification

• All LEDs are installed, ensuring accurate status indication out of the box

• Detailed installation instructions and cutout template included for precise setup

• Supports up to 50A maximum amperage per circuit with seven 15A single-pole circuit breakers

• Compatible with optional upgrade to 24V DC using the 8243 micro voltmeter for system flexibility

• Compact design measuring approximately 11.25 inches high, 5.25 inches wide, and 2.5 inches deep for space-efficient installation
