Description
8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches
Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
AC Features:
- Two separate AC load groups with transfer switch to combine into one load group
- Switch allows Ammeter and Voltmeter to read either AC load group
- Reverse polarity indicators on both AC load groups
- Ready for installation of optional 4031 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
Specifications:
- AC Positions: Source Selectors +12
- DC Positions: Main +19
- 120 Volts AC
- 12 Volts DC
- (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
- (1) 100A - (13) 15A DC Circuit Breakers
*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

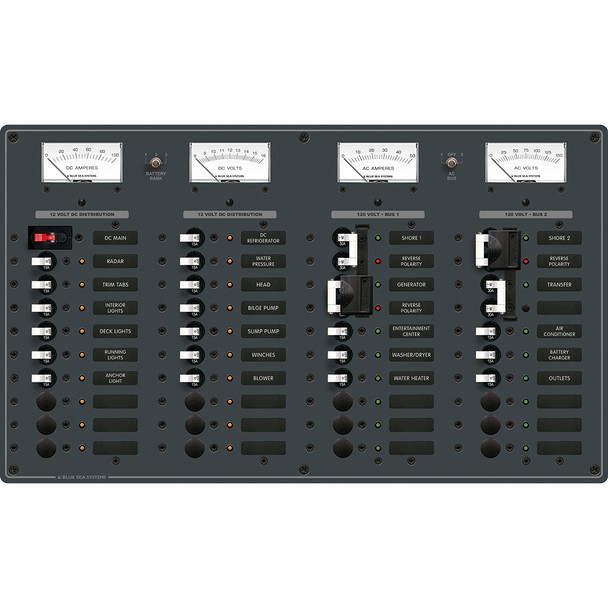

The Blue Sea Systems 8086 AC/DC Circuit Breaker Panel offers a comprehensive solution for managing multiple power sources in marine or industrial applications. This panel features 3 AC sources with 12 positions and a main DC bus with 19 toggle positions, all housed within a durable white switch panel designed for easy installation and operation. The unit comes fully pre-wired with all AC and DC buses installed, simplifying setup and reducing installation time. Backlit labels are pre-installed for clear identification, and all LEDs are in place to provide real-time status indicators, enhancing operational safety and efficiency.
Designed to handle substantial electrical loads, this panel supports up to 100 Amperes DC and 50 Amperes AC, making it suitable for demanding power management scenarios. The AC section includes two separate load groups with a transfer switch that allows for flexible load management, including a feature to combine the groups into a single load. The panel's switch enables Ammeter and Voltmeter readings for either AC load group, with reverse polarity indicators on each load group to detect wiring issues immediately. Additionally, it is compatible with an optional AC Isolation Cover to meet ABYC standards, ensuring compliance and safety for marine applications.
The DC section features a 100 Amp C-Series circuit breaker that provides main circuit protection and switching for the DC branch circuits. The panel supports a DC voltmeter (model 8003) and a 0-100 Amp DC Ammeter (model 8017), facilitating accurate monitoring of battery and DC load status. The configuration includes multiple circuit breakers rated at 15A, 30A, 50A, and 100A, supporting a broad range of electrical loads. The panel operates at 120 Volts AC and 12 Volts DC, making it suitable for various power systems. It also includes warning labels about potential chemical exposure, complying with safety standards, and is accompanied by a detailed owners manual available online for installation and maintenance guidance.
Features:
- Includes set of 30 common AC and 30 common DC labels for easy identification
- All AC and DC buses are pre-installed and fully wired for quick setup
- Backlit labels enhance visibility in low-light conditions
- All LEDs are installed, providing real-time operational status
- Supports up to 100 Amperes DC and 50 Amperes AC for high-capacity power management
- Two AC load groups with transfer switch for flexible load sharing
- Switch allows Ammeter and Voltmeter readings for either AC load group
- Reverse polarity indicators on AC load groups for quick troubleshooting
- Compatible with optional AC Isolation Cover to meet safety standards
- Includes DC main circuit breaker and multiple branch circuit breakers for comprehensive protection
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/14572OM.pdf |
