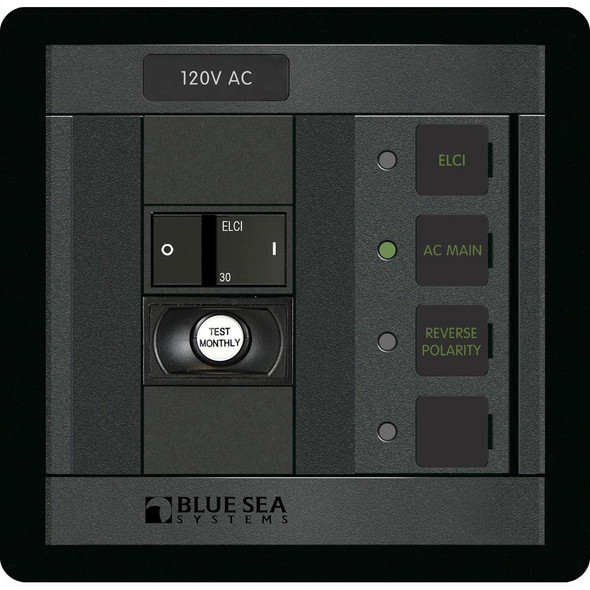

Blue Sea Systems 8100 ELCI Main 30A Double Pole Circuit Breaker for Marine Shore Power

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• Red " Reverse Polarity" LED

• All circuit label positions are backlit

• "ON" indicating LEDs

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8100 ELCI Main 30A Double Pole Circuit Breaker is designed for comprehensive shore power protection on boats, combining overcurrent and leakage detection in a single unit. This breaker features a 30 mA leakage trip current, providing reliable safety by disconnecting power in case of ground faults, in accordance with ABYC E-11 standards. The compact design ensures easy integration into marine electrical systems, while the backlit circuit labels and indicator LEDs enhance visibility and ease of operation in various lighting conditions. The red "Reverse Polarity" LED alerts operators to wiring issues, promoting safety and preventing electrical mishaps aboard vessels.

Features:

• Overcurrent and leakage protection: Provides comprehensive safety by disconnecting power during ground faults or overloads

• Leakage trip amperage: 30mA, ensuring sensitive detection of ground faults

• Visual indicators: Backlit circuit labels and "ON" LEDs for clear status monitoring

• Polarity alert: Red "Reverse Polarity" LED for wiring fault indication

• Marine-grade design: Meets ABYC E-11 standards for boat shore power systems
