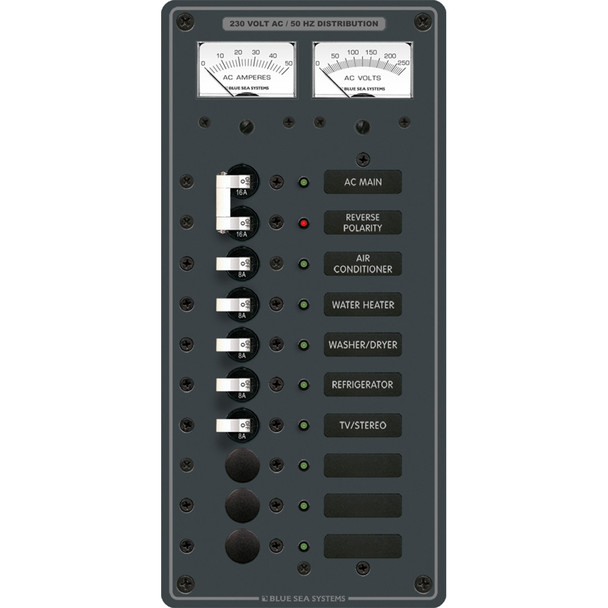

Blue Sea Systems 8174 Main + 8 Positions AC Power Distribution Panel (European)

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8174 Main + 8 Positions AC Power Distribution Panel offers a comprehensive solution for managing electrical circuits in marine, industrial, and RV applications. Featuring a durable construction with a two-part polyurethane slate gray finish and heavy 1/8 inch aluminum alloy, this panel is built for long-lasting performance and corrosion resistance. The panel includes a main AC circuit breaker rated at 16A double pole, along with five 8A single pole circuit breakers, providing reliable overload and short circuit protection. It also incorporates analog micro ammeter and voltmeter gauges for real-time monitoring of electrical parameters, essential for maintaining system health and safety.

All wiring buses for hot, neutral, and safety ground connections are pre-installed to streamline installation. The panel's design includes backlit circuit label positions on standard-sized panels, eliminating the need for separate kits, and

Features:

• Main AC circuit breaker: 16A double pole, providing primary power management

• Eight circuit positions: includes five 8A single pole breakers for circuit distribution

• Monitoring gauges: AC micro ammeter and voltmeter for real-time system diagnostics

• Pre-wired bus bars: hot, neutral, and ground buses installed for quick setup

• Status indicators:

• ON

• LEDs in all circuit positions for clear operational status

• Backlit labels: all circuit label positions illuminated for easy identification

• High amperage capacity: rated for up to 50 Amperes total

• Durable construction: MIL-C-5541C coated, heavy-duty aluminum alloy for corrosion resistance

• Industry standard dimensions: compatible with standard panel cutouts

• Easy installation: countersunk mounting holes and detailed instructions included

• Customizable labeling: includes 30 large format labels with over 500 options available
