Description
8197 AC 6 Position
Features:
- All hot, neutral, and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit posistions
- Maximum panel amperage - 100 Amperes
- MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
Specifications:
- Positions: 6
- Nominal Voltage: 230v AC
- Maximum Amperage: 100A
- Height: 3.75"
- Width: 10.5"
Included:
- (6) 7299 A-Series White Toggle Circuit Breaker - Single Pole 8A
- (1) 8031 Basic AC Panel Label Set - 30 Labels
- (6) 8134 LED - 230v AC Green
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

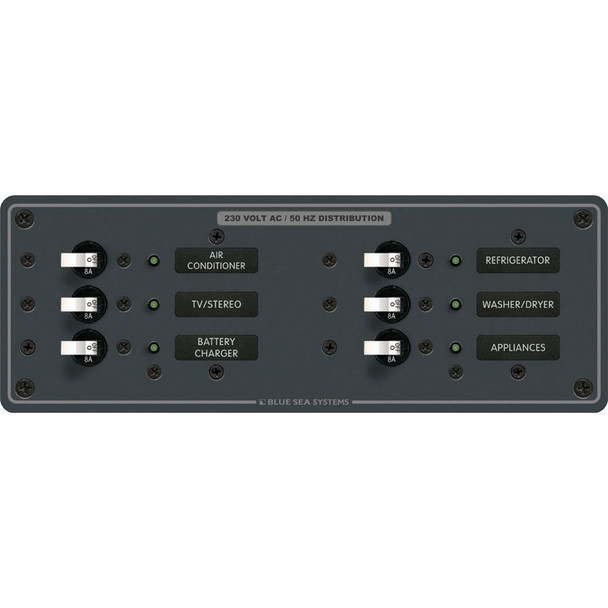

The Blue Sea Systems 8197 AC 6-Position electrical panel is designed for reliable control and distribution in 230V AC applications. Crafted from heavy-duty 1/8" aluminum 5052 alloy with a durable two-part polyurethane slate gray finish, this panel offers exceptional strength and corrosion resistance, making it suitable for demanding environments. All hot, neutral, and safety ground buses are fully pre-wired and installed, simplifying installation and reducing setup time. The panel features backlit circuit label positions on standard panels, eliminating the need for additional kits, and
