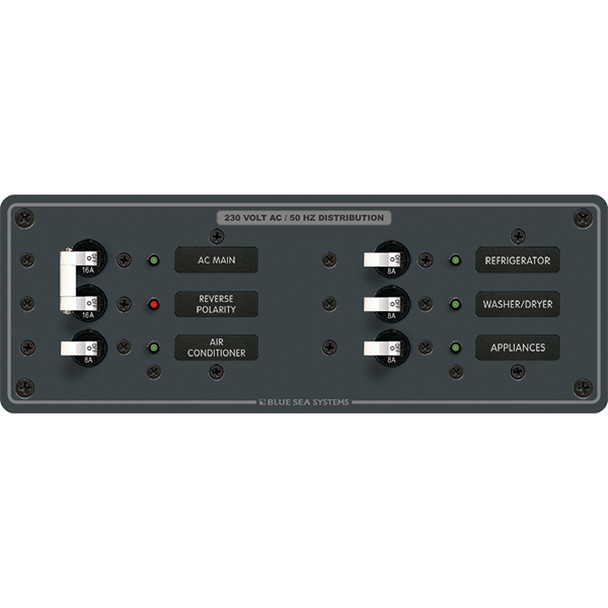

Blue Sea Systems 8199 AC Main and Branch A-Series Toggle Circuit Breaker Panel (230V, 4 Circuits)

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8199 AC Main and Branch A-Series Toggle Circuit Breaker Panel is designed for reliable electrical management in marine and industrial applications. Constructed with heavy-duty 1/8" aluminum alloy and finished with a durable two-part polyurethane slate gray coating, this panel offers enhanced corrosion resistance and longevity. It features a maximum panel amperage of 50 amps, making it suitable for demanding power distribution setups. The panel includes one 16A double pole circuit breaker and four 8A single pole circuit breakers, all pre-installed for quick setup and operation.
All hot, neutral, and safety ground buses are fully pre-wired, simplifying installation and reducing wiring errors. The panel's backlit circuit label positions allow easy identification in low-light conditions without additional kits. 'ON' indicator LEDs are installed in each circuit position to provide clear operational status at a glance. A prominent red reverse polarity LED indicator alerts users to wiring issues, ensuring safety during operation. The panel's industry-standard height and width, along with countersunk mounting holes, facilitate straightforward installation in various enclosures. Included with the panel are detailed installation instructions, a cutout template, and a set of 30 common large-format labels, with over 500 label options available for customization.
This panel is built to withstand harsh environments, thanks to MIL-C-5541C or equivalent immersion undercoating, ensuring lifetime corrosion resistance. Its sleek design, combined with industry-standard dimensions and comprehensive features, makes it ideal for marine vessels, RVs, or industrial control panels. Safety and ease of use are prioritized with features such as backlit labels, LEDs, and pre-wired buses, providing a professional-grade solution for electrical system management. Please review the provided owner’s manual for detailed installation guidance and safety precautions. Note that this product may contain chemicals known to the State of California to cause reproductive harm, and users are encouraged to visit P65Warnings.ca.gov for more information.

Features:

• Red reverse polarity indicating LED for safety

• Pre-wired hot, neutral, and safety ground buses for simplified installation

• Backlit circuit label positions for clear identification without additional kits

• 'ON' indicating LEDs installed in all circuit positions for status monitoring

• Maximum panel amperage of 50 amps supports high-demand applications

• Corrosion-resistant MIL-C-5541C or equivalent immersion undercoating

• Heavy-duty 1/8" aluminum 5052 alloy construction for durability

• Industry-standard height and width for compatibility

• Countersunk mounting holes for ease of installation

• Includes detailed instructions, cutout template, and 30 large-format labels
