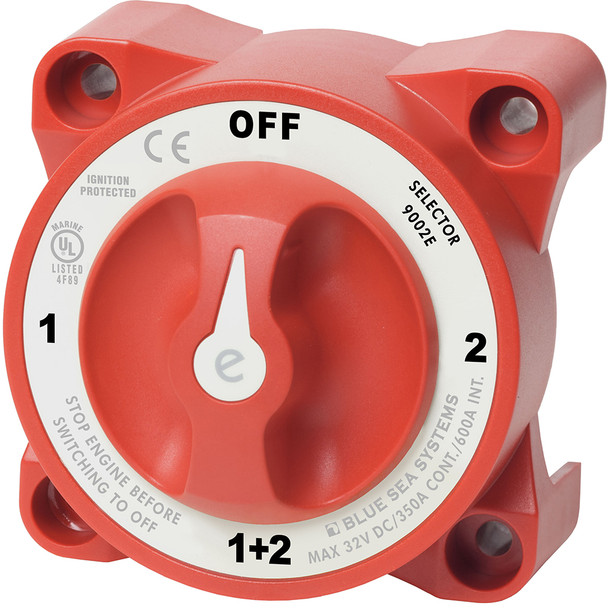

Blue Sea Systems 9002e e-Series Battery Switch Selector with Alternator Field Disconnect

9002e e-Series Battery Switch Selector with Alternator Field Disconnect

Features:

• Switches isolated battery banks to all loads or combines battery banks to all loads
• Includes AFD (Alternator Field Disconnect)
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protectedsafe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting

Includes:

• AFD (Alternator Field Disconnect)
• CE Marked
• Ignition protected - Safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches

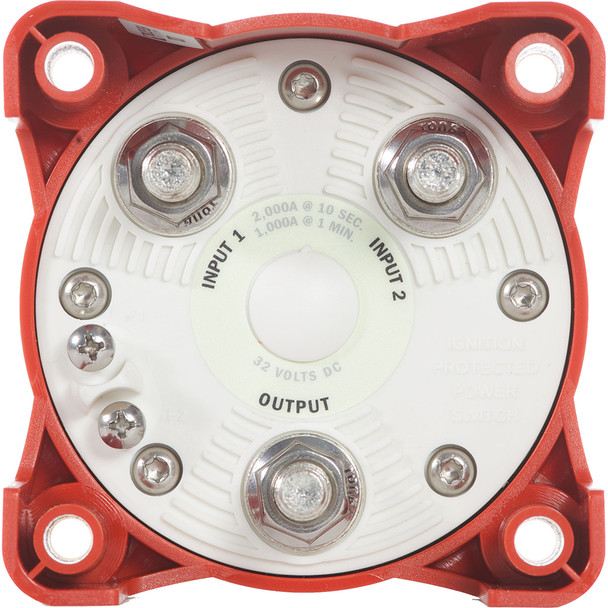

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 9002e e-Series Battery Switch Selector provides reliable control over your boat's electrical system by allowing you to easily switch between isolated battery banks or combine them for increased power availability. Designed for marine applications, this switch ensures safety and convenience with features such as make-before-break contact, which allows seamless switching without power interruption. It also includes an integrated Alternator Field Disconnect (AFD), providing additional control over the charging system for enhanced safety and system management. The switch is ignition protected, making it safe for installation aboard gasoline-powered boats, and its robust case design supports both surface and rear panel mounting options for flexible installation configurations.
Constructed with 3/8-inch tin-plated copper studs, the switch offers maximum conductivity and resistance to corrosion, suitable for demanding marine environments. The tactile textured knob allows you to identify the switch position by feel alone, ensuring quick and safe operation even in low visibility conditions. This switch meets ABYC requirements and is CE marked, demonstrating compliance with industry standards for marine electrical components.
Included with the switch is the AFD (Alternator Field Disconnect), which enhances your system's safety and functionality by controlling the alternator's excitation field. The switch's stud length of approximately 7/8 inch accommodates multiple cable terminals, simplifying wiring and connection. Whether for new installations or upgrades, the Blue Sea 9002e is built to deliver dependable performance and peace of mind on your vessel.

Features:

• Switches isolated battery banks to all loads or combines battery banks to all loads

• Includes Alternator Field Disconnect (AFD) for enhanced system control

• Make-before-break contact design allows seamless switching without power interruption

• Ignition protected, safe for installation aboard gasoline-powered boats

• Case design supports surface or rear panel mounting for installation flexibility

• Constructed with 3/8-inch tin-plated copper studs for optimal conductivity and corrosion resistance

• Tactile textured knob for position identification by feel

• Meets ABYC requirements and is CE marked for quality and safety compliance
