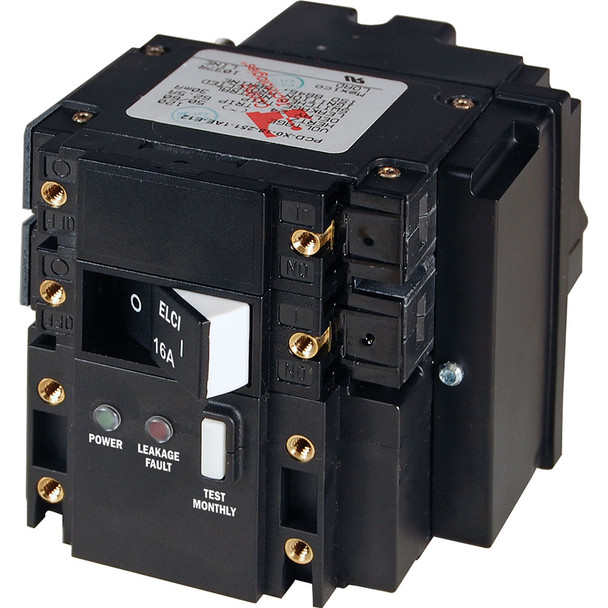

Blue Sea Systems C-Series ELCI Main Circuit Breaker - Double Pole 230V AC, 16A

C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A

Features:

• Trips on short circuit, overload, or leakage to ground
• Front panel mountinstalled in a power distribution panel

Specifications:

• Amperage: 16A
• Actuator Style: Flat rocker
• Poles: 2
• Ignition Protected: Yes
• Maximum Voltage: 240V AC per pole
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35 degrees C
• Maximum Operating Temperature: 66 degrees C
• Leakage Trip Amps: 30mA
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6in-lb (0.68 Nm)
• Switching Cycles: 10000
• Weight: 0.90 lbs (0.41kg)

The Blue Sea Systems C-Series ELCI Main Circuit Breaker with part number 3091 is engineered for reliable protection in electrical systems, providing safety and durability with a professional-grade design. This double pole breaker is rated for 16 amps and operates at a maximum voltage of 240V AC per pole, making it suitable for a wide range of residential and commercial applications. Its robust magnetic hydraulic trip mechanism ensures trip-free operation during short circuits, overloads, or ground leakage, enhancing system safety. The breaker is designed for front panel mounting within a power distribution panel, simplifying installation and maintenance. Its ignition-protected feature allows it to be used in environments with potential ignition hazards, adding an extra layer of safety. With an interrupt capacity of 5000 amps, it can handle high fault currents, ensuring that your electrical system remains protected during critical conditions. The switch features a flat rocker actuator for easy operation, and the breaker supports up to 10,000 switching cycles for long-term reliability. Constructed with #6-32 stainless steel mounting screws, the breaker can be securely installed with a torque of 6 inch-pounds. It is designed to operate efficiently in temperatures ranging from -35°C to 66°C, accommodating various environmental conditions. The leakage trip setting is 30mA, providing ground fault protection, and the breaker weighs approximately 0.90 pounds, making it suitable for various panel configurations. Overall, the Blue Sea Systems C-Series ELCI Main Circuit Breaker offers a dependable, high-performance solution for safeguarding electrical systems against faults and ensuring continuous, safe operation.

Features:

• Trips on short circuit, overload, or leakage to ground

• Front panel mount installation for easy access

• Rated for 16A at 240V AC per pole

• Magnetic hydraulic trip mechanism ensures trip-free operation

• Ignition protected design for hazardous environments

• High interrupt capacity of 5000A for fault handling

• Supports up to 10,000 switching cycles for durability

• Stainless steel mounting screws for secure installation

• Wide operating temperature range from -35°C to 66°C

• Leakage trip setting of 30mA for ground fault protection
