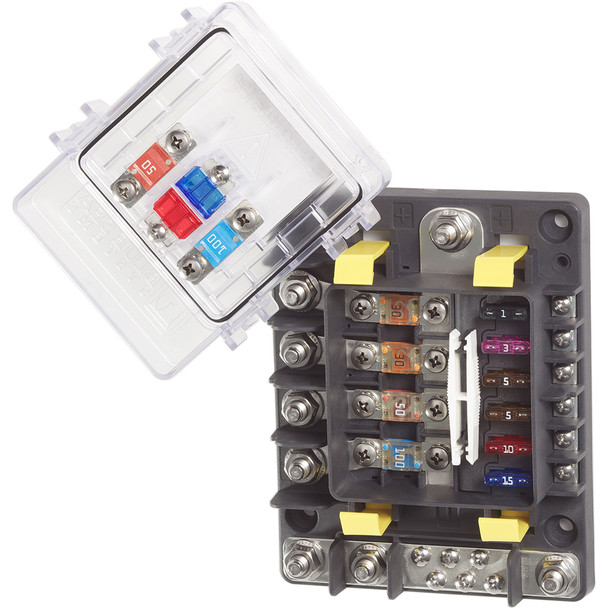

Blue Sea Systems SafetyHub 150 Fuse Block with Ignition Protection and Screw Termination

SafetyHub 150 Fuse Block

The SafetyHub 150 is an ignition protected fuse block with screw termination. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates upt to ten fused circuits. It can be used for Main or Branch DC power distribution.

• Four 30A-200A MIDI/AMI fuses ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers

• Six 1A-30A ATO/ATC fuses ideal for low-amp circuits including bilge pumps, electronics, and lights

• Sealed cover protects fuses from the harsh marine environment: IP66 rating - protected against powerful water jets

• Negative bus provides common location for negative collection

• Circuit identification label with write-on capability

• Fuse puller easily removes ATO/ATC fuses

• Cover provides storage space for two spare ATO/ATC fuses and two spare MIDI/AMI fuses

• NYPATCH coated MIDI/AMI fuse screws resist loosening over time

• Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats

• Fuses sold separately

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems SafetyHub 150 fuse block offers a reliable and secure solution for marine electrical systems, especially on gasoline-powered boats. Designed with ignition protection and screw termination, it ensures safe installation while reducing wiring complexity by consolidating up to ten fused circuits in one compact unit. The fuse block is suitable for main or branch DC power distribution, making it versatile for various marine electrical applications. It features four high-current MIDI/AMI fuses rated from 30A to 200A for high-amp circuits such as panel feeds, windlasses, and stereo amplifiers. Additionally, six ATO/ATC fuses ranging from 1A to 30A accommodate low-amp circuits including bilge pumps, electronics, and lighting systems. The sealed cover provides an IP66 rating, protecting the fuses from powerful water jets and harsh marine environments, while the negative bus offers a common grounding point for all circuits. The fuse block includes a write-on circuit identification label for easy maintenance and troubleshooting, along with a fuse puller for quick removal of ATO/ATC fuses. Storage space inside the cover allows for two spare ATO/ATC fuses and two MIDI/AMI fuses, ensuring quick replacements when needed. The MIDI/AMI fuse screws are coated with NYPATCH to resist loosening over time, maintaining secure connections. This fuse block meets Coast Guard and ABYC safety standards for ignition-protected fusing, making it suitable for installation on both gasoline and diesel-powered boats. Please note that fuses are sold separately. With its durable design and comprehensive features, the Blue Sea Systems SafetyHub 150 fuse block is an essential component for marine electrical safety and reliability.

Features:

• Ignition protected fuse block suitable for gasoline-powered boats

• Consolidates up to ten fused circuits for simplified wiring

• Four MIDI/AMI fuses rated from 30A to 200A for high-amp circuits

• Six ATO/ATC fuses rated from 1A to 30A for low-amp circuits

• Sealed IP66-rated cover protects against water jets and harsh environments

• Negative bus provides a common ground connection

• Write-on circuit identification label for easy maintenance

• Fuse puller included for quick fuse removal

• Built-in storage space for two spare ATO/ATC and two MIDI/AMI fuses

• NYPATCH coated fuse screws resist loosening over time

• Meets Coast Guard and ABYC ignition protection standards for marine safety
