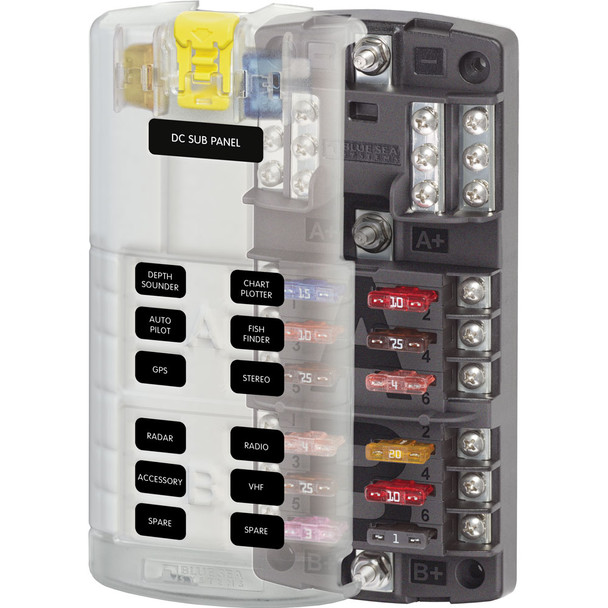

Blue Sea Systems ST-Blade Split Bus Fuse Block Part 5032 for Dual Battery Systems

• Provides two isolated groups of six ATO/ATC circuits

• For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits

• Screw terminals for securing wires accept ring terminals

• One-piece stainless flange nuts ensure safe and secure connections

• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements

• Easy to open, push button latch for easy access to fuses

• Tin-plated copper buses and fuse clips

• Fuses sold separately

• Circuits: 12

• Maximum Amperage: 100A per block, 30A per circuit

• Maximum Voltage: 32V DC

• Mounting: #8 Screw (M4)

• Negative Bus: #10-32 Stud

• Screw Terminal Type: #8-32 Screws with captive star lock washer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems ST-Blade Split Bus Fuse Block Part 5032 is an essential component for marine and automotive electrical systems, offering a reliable solution for managing multiple circuits. Designed to accommodate two isolated groups of six ATO/ATC circuits each, it provides flexible wiring options for setups with either two separate batteries or a single battery with both continuous and switched circuits. Its robust construction includes screw terminals that accept ring terminals, ensuring secure wire connections for your electrical system. Stainless flange nuts guarantee safe, corrosion-resistant connections, making this fuse block suitable for demanding environments. The clear insulating cover with label recesses allows for easy fuse identification and maintenance, complying with ABYC and USCG insulation standards. An accessible push-button latch simplifies fuse access, facilitating quick inspections and replacements. The fuse block features tin-plated copper buses and fuse clips to enhance electrical conductivity and durability, with fuses sold separately. With a maximum amperage of 100A per block and 30A per circuit, it supports substantial electrical loads while maintaining safety. Designed for mounting with an #8 screw (M4), it includes a #10-32 stud negative bus and screw terminals with captive star lock washers for secure fastening. This fuse block is an ideal choice for boat, RV, or off-grid applications where reliable circuit management is critical. Its sturdy build and thoughtful features make it a versatile and durable addition to any electrical system requiring multiple protected circuits.

Features:

• Provides two isolated groups of six ATO/ATC circuits for flexible wiring configurations

• Suitable for dual battery setups or single battery with mixed circuits

• Screw terminals accept ring terminals for secure connections

• One-piece stainless flange nuts ensure corrosion-resistant, safe connections

• Clear insulating cover with label recesses and fuse storage for easy identification

• Push-button latch allows quick and easy fuse access

• Tin-plated copper buses and fuse clips for optimal electrical conductivity

• Supports a maximum of 100A per block and 30A per circuit
