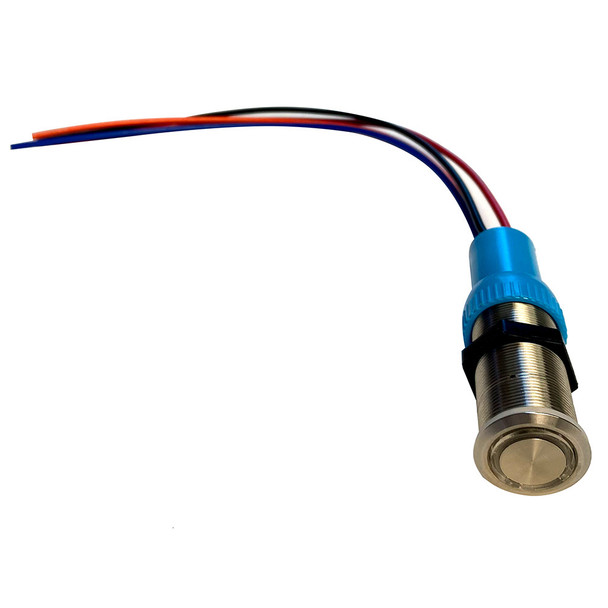

Bluewater 19mm Push Button Switch with Waterproof IP69K Rating and Multi-Color LED Backlighting

19mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 4' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/On/On" standard contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Off-On-On (standard contact)


• Off/On: Blue/green


• 2nd On: Red


• Rear Mark Page: Blue dot


• Switch Rating: 15A/12 24VDC


• Material: Stainless steel


• Mechanical Life: 50,000 cycles


• Electrical Life: 10,000 cycles

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle or machinery dashboard with the Bluewater 19mm push button switch, part number 9057-3113-4. Crafted with a stainless steel-plated metal body, this switch combines durability with modern aesthetics, making it suitable for demanding environments. Its sleek design and included gasket provide an IP69K waterproof rating, ensuring reliable operation even in high-pressure washdowns or wet conditions. The switch features a distinct Off/On/On contact configuration, allowing for versatile control functions in various applications. Its backlit LEDs in blue, green, and red enhance visibility during nighttime use, with the blue LED indicating the default 'off' state and red signaling that the function is active. This visual cue improves safety and operational clarity for users operating in low-light conditions. The switch is rated for 15A at 12 or 24V DC, making it suitable for a broad range of electrical loads. With a mechanical life expectancy of 50,000 cycles and an electrical life of 10,000 cycles, it offers longevity and dependable performance. Installation is straightforward: simply drill a 19mm hole in materials up to 6mm thick, connect the three contacts as per the color codes for safety, and wire the two LED contacts for illumination. The 4-foot lead provides ample length for flexible wiring options, simplifying the integration process. Whether used in automotive, marine, or industrial applications, this switch provides robust control with clear visual indicators, ensuring safety and operational efficiency in all environments.

Features:

• Stainless steel body with IP69K waterproof rating for durability and resistance to harsh conditions

• Off/On/On contact configuration for versatile control options

• Backlit LED indicators in blue, green, and red for enhanced visibility and status indication

• Rated for 15A at 12V or 24V DC, suitable for various electrical loads

• Long mechanical lifespan of 50,000 cycles and electrical lifespan of 10,000 cycles

• Includes a 4-foot lead for flexible wiring and easy installation

• Simple installation with a 19mm drill hole in materials up to 6mm thick, with color-coded contacts for safety
