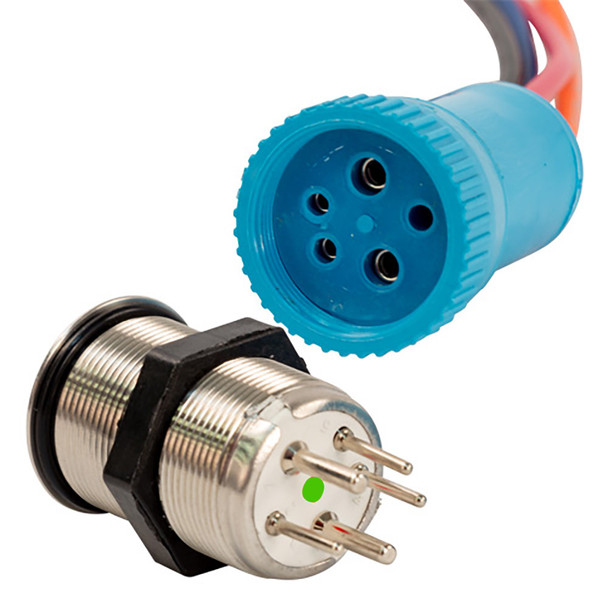

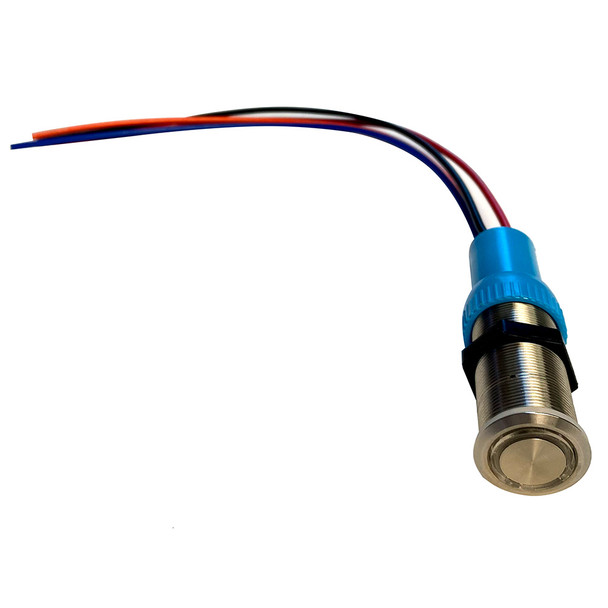

Bluewater 22mm Push Button Switch with Blue/Red LED and Waterproof IP69K Rating 9059-2113-1

22mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/(On) momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Off-(On) (momentary contact)


• Off/On: Blue/red


• Rear Mark Page: Green dot


• Switch Rating: 20A/12 24VDC


• Material: Stainless steel


• Mechanical Life: 50,000 cycles


• Electrical Life: 10,000 cycles

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

The Bluewater 9059-2113-1 is a high-quality 22mm push button switch designed for versatile and durable applications. Crafted with stainless steel material, this switch offers a sleek, modern appearance while providing excellent resistance to harsh environments. Its waterproof IP69K rating ensures reliable performance even in demanding conditions, making it ideal for custom dashboards, machinery, or vehicle modifications. The switch features a momentary contact function that toggles between off and on states, with integrated backlit LEDs that enhance visibility in low-light settings. The blue LED indicates the off position, while the red LED signals the switch is active, providing clear, immediate feedback to users.

Features:

• Waterproof IP69K rating with stainless-steel construction for durability and corrosion resistance

• Backlit LEDs with blue and red illumination for enhanced visibility and status indication

• Momentary contact function for off/on operation, suitable for various control applications

• Includes a 1-foot lead for easy wiring and installation

• Designed for a 22mm mounting hole in panels up to 0.24 inches thick, with straightforward wiring connections for safety and convenience

• Mechanical life of 50,000 cycles and electrical life of 10,000 cycles for long-lasting performance
