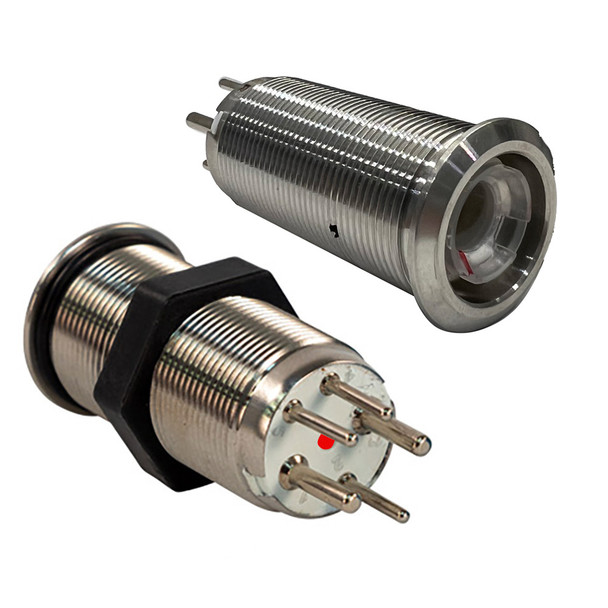

Bluewater 9057-1113 19mm Marine Grade Push Button Switch with Red/Blue LED Indicators

19mm Inrush Push Button Switch Off/On - Blue/Red LED - Switch Body Only

The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.

This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.

This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.

Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.

Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.

Specifications:

• Switch Rating: 15A/12-24VDC


• Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC


• Mechanical Life: 50,000 Cycles


• Electrical Life: 10,000 Cycles


• Dimensions: View Dimensional Drawings


• Material: Nickel Plated Brass/ Stainless Steel


• LED Color: Blue/Green/Red

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.

The Bluewater 9057-1113 19mm Inrush Push Button Switch offers a reliable and durable control solution designed for demanding marine and outdoor environments. Encased in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating, this switch withstands harsh conditions such as salt spray, washdowns, and high-pressure cleaning. Its compact size makes it ideal for tight panel spaces, providing a seamless integration into various control panels. The switch’s Deutsch-style connectors ensure a secure and waterproof connection, simplifying installation and maintenance. Featuring a fully detachable and customizable actuator, users can tailor the switch’s appearance and operation to suit specific needs and preferences. The built-in LED indicators provide clear visual feedback, with a soft blue backlight for low-light visibility and a bright red glow to indicate active status, enhancing operational safety and efficiency. Rated for 15 amps in single-channel mode or 7.5 amps per channel in dual-channel configurations, this switch is capable of handling high-current loads reliably over extended cycles. Its robust construction from nickel-plated brass and stainless steel ensures longevity and resistance to corrosion, making it suitable for marine vessels, rugged outdoor equipment, and other demanding applications. Installation involves drilling a 19mm hole into panels up to ¼ inch thick, connecting the color-coded contacts for power and LED indicators, facilitating quick and straightforward setup. Whether upgrading existing systems or designing new control panels, the Bluewater 9057-1113 switch provides a high-performance, corrosion-resistant, and visually intuitive control point for critical systems.

Features:

• Corrosion-resistant SS316 stainless steel housing for durability in harsh environments

• IP69K waterproof rating ensures protection against water ingress during high-pressure washdowns

• Deutsch-style connectors provide secure, waterproof electrical connections

• LED indicators with soft blue backlight and bright red active glow for clear visual feedback

• Rated for 15 amps in single-channel or 7.5 amps per channel in dual-channel configurations

• Customizable fully detachable actuator for personalized operation and appearance

• Designed for compact panel integration with a 19mm mounting hole

• Constructed from nickel-plated brass and stainless steel for corrosion resistance

• Mechanical life of 50,000 cycles and electrical life of 10,000 cycles ensures long-term reliability
