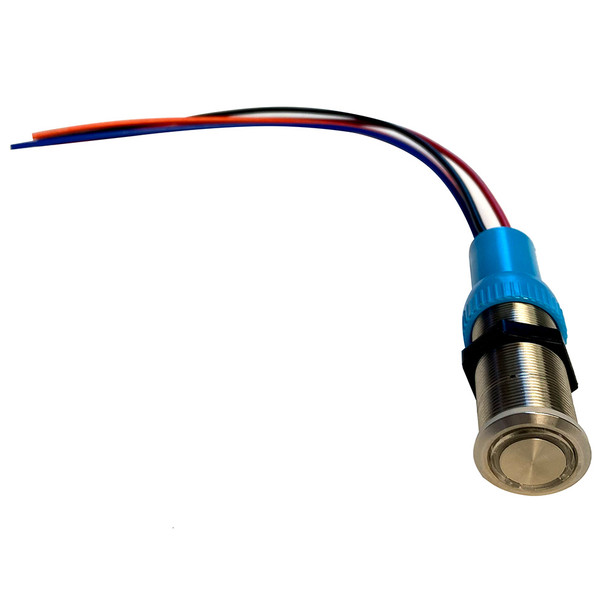

Bluewater 9057-3114-1 19mm Push Button Switch with Nav/Anc Contact and LED Backlighting

19mm Push Button Switch - Nav/Anc Contact - Blue/Green/Red LED - 1' Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a Nav/Anc" contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Nav/Anc


• Off/1st On: Blue/Green


• 2nd On: Red


• Rear Mark Page: White dot


• Switch Rating: 15A/12 24VDC


• Material: Stainless steel


• Mechanical Life: 50,000 cycles


• Electrical Life: 10,000 cycles

Installation:

Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Upgrade your vehicle's dashboard with the Bluewater 9057-3114-1 19mm push button switch, crafted from durable stainless steel to provide a sleek, modern appearance. Featuring a Nav/Anc contact, this switch is designed to enhance control and functionality within automotive or marine applications. The waterproof IP69K rating ensures reliable performance in harsh environments, making it suitable for demanding installations. Backlit with blue LED during off and first on states, the switch lights up in green and red respectively, providing clear visual indicators at night or in low-light conditions. The illuminated signals help operators quickly ascertain the switch status, improving safety and operational efficiency.

Features:

• 19mm diameter push button with stainless steel body for durability and style

• Waterproof rating of IP69K ensures protection against dust and high-pressure water jets

• Backlit LED with blue, green, and red illumination for enhanced visibility and status indication

• Includes a Nav/Anc contact for versatile control functions

• 1-foot lead wiring for straightforward installation

• Switch rated for 15A at 12V and 24V DC, suitable for various electrical loads

• Mechanical life of 50,000 cycles and electrical life of 10,000 cycles for long-term reliability

• Easy installation by drilling a 19mm hole into materials up to 6mm thick, with color-coded contacts for simplified wiring
