Digital Yacht PilotLINK2 Class A Pilot Plug WiFi Interface for Marine AIS Data Access

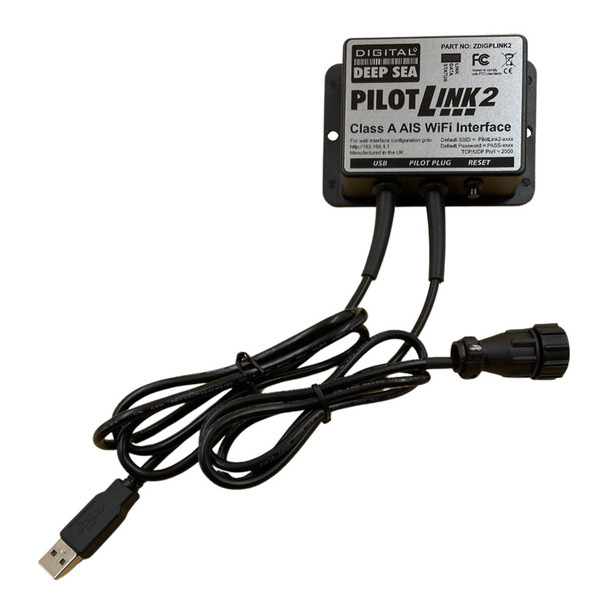

PilotLINK2 Class A Pilot Plug WiFi Interface

There are well over 100,000 Class A AIS systems installed on vessels globally. While the latest Class A AIS transponders (like the Digital DeepSea CLA2000) already have a wireless interface incorporated for iPad and tablet connectivity, many systems just use a standardized Pilot Plug wired interface. This Amphenol standard multi-pin design allows NMEA AIS and GPS data to be accessed from the transponder and pilots and delivery captains would use a simple USB interface cable for their personal PC-based ECDIS system. However, more and more captains now choose to use an iPad or tablet so need wireless connectivity.

PilotLINK2 allows these Class A transponders to interface with the latest range of mobile devices including iPhones, tablets, and PCs/MACs. Applications range from maritime pilots to survey ship charter users who may want access to the ships AIS and GPS data.

Features:

• Connects to any standard Pilot Plug connector


• USB powered for easy portability power from any USB source, adaptor, or power pack


• Creates secure password protected wifi network


• Can also join another wifi network if preferred


• Easy web interface with useful diagnostics display and Class A static, dynamic, and voyage data displays


• Works with 100s apps iSailor, Navionics, iNAVx, NavLINK, TZ iBoat, Imray, NV Charts, AquaMaps, Weather 4D, etc


• TCP/IP and UDP protocols supported


• The raw data log function

Interface

Set up of PilotLINK is simple using any web browser on the connected device. View data, set up wireless passwords or join another wireless network and also view Class A AIS status. Your favourite apps connect using TCP/IP or UDP protocols.

The data monitor shows a list of raw NMEA data. You can also log this data for analysis if required.

The Digital Yacht PilotLINK2 Class A Pilot Plug WiFi Interface provides a reliable solution for accessing NMEA AIS and GPS data from standard Class A transponders via wireless connections. Designed to connect seamlessly to any standard Pilot Plug connector, the device enables vessel operators, maritime pilots, and survey ship crews to wirelessly monitor AIS and GPS data on iPads, tablets, PCs, or Macs. Its USB-powered design ensures easy portability, allowing users to power the device from any USB source, adapter, or power bank. The PilotLINK2 creates a secure, password-protected WiFi network, ensuring safe and private data transmission while also supporting connection to existing WiFi networks if preferred. The device features an intuitive web interface accessible through any web browser, offering real-time diagnostics, Class A static and dynamic data, and voyage information. Compatibility with hundreds of marine navigation and charting apps like iSailor, Navionics, iNAVx, and NV Charts makes it an essential tool for modern maritime operations. Supporting both TCP/IP and UDP protocols, the PilotLINK2 allows seamless integration with various applications and systems. The raw data logging function enables users to capture and analyze AIS and GPS data for performance monitoring or troubleshooting purposes. Easy setup involves simple web-based configuration, including password management and network connections, providing users with full control over their data and network environment. Whether used for navigation, pilot work, or survey missions, the PilotLINK2 offers a flexible, portable, and secure interface to enhance vessel situational awareness and operational efficiency.

Features:

• Connects to any standard Pilot Plug connector

• USB powered for portable operation from any USB source

• Creates a secure password-protected WiFi network

• Supports joining existing WiFi networks

• User-friendly web interface with diagnostics and data displays

• Compatible with hundreds of marine navigation and charting apps

• Supports TCP/IP and UDP data protocols

• Includes raw data logging for analysis and troubleshooting
