Description

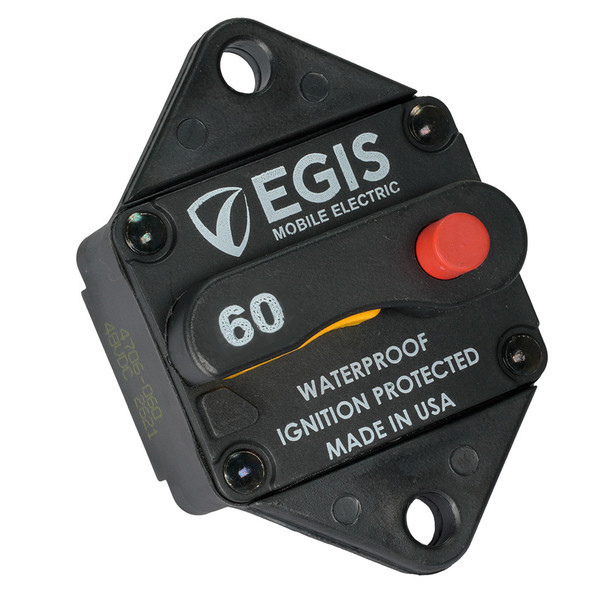

60A Panel Mount Circuit Breaker - 285 Series
This 60A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Applications:
- Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
- High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
- High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
- High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-Year Warranty - Egis stands behind its products ability to meet the users needs
Specifications:
- Continuous Current Amps: 60
- Max Voltage: 48
- Cycling Endurance: 6,000
- Interrupt Current @16 VDC (Amps): 5,000
- Interrupt Current @28 VDC (Amps): 3,000
- Ingress Protection Rating: IP67
Focal Features:
ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.
Panel Mount Flange
Provides rear/front panel installation options.
Stainless Steel Hardware / KEPS Locking Nuts
Corrosion and vibration resistance for harsh environment applications.
Proudly Made in the USA
Made in the USA of high-quality components.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Egis Mobile Electric 60A Panel Mount Circuit Breaker from the 285 Series offers reliable circuit protection for a variety of electrical systems. Designed to prevent damage caused by short circuits and over-current loads, this breaker ensures the safety and longevity of wiring and connected components. Its robust construction and sealed design make it suitable for harsh environments, providing dependable performance in both automotive and marine applications. The breaker features a sealed enclosure that guards against dust and water ingress, rated IP67, making it ideal for outdoor or wet conditions. Its high voltage (48 Vdc) rating supports 12, 24, 36, and 48 Vdc systems, offering a versatile solution for various electrical setups. With a manual on/off switch and automatic circuit protection, it simplifies system maintenance and operation, enabling quick isolation of circuits during troubleshooting or servicing.
Features:
- Sealed against dust and water intrusion for reliable operation in harsh environments
- High Voltage (48 Vdc) rating supports 12 to 48 Vdc systems, replacing fuses with improved protection
- High electrical/manual switching endurance of 6,000 cycles at full current ensures longevity
- High interrupt current capacity safely protects large battery banks with significant power
- Panel mount flange allows flexible installation options on front or rear panels
- Stainless steel hardware and KEPS locking nuts provide corrosion and vibration resistance
- High-visibility ON/OFF controls facilitate easy operation
- Made in the USA with high-quality components
- Designed with an IP67 ingress protection rating for maximum durability
