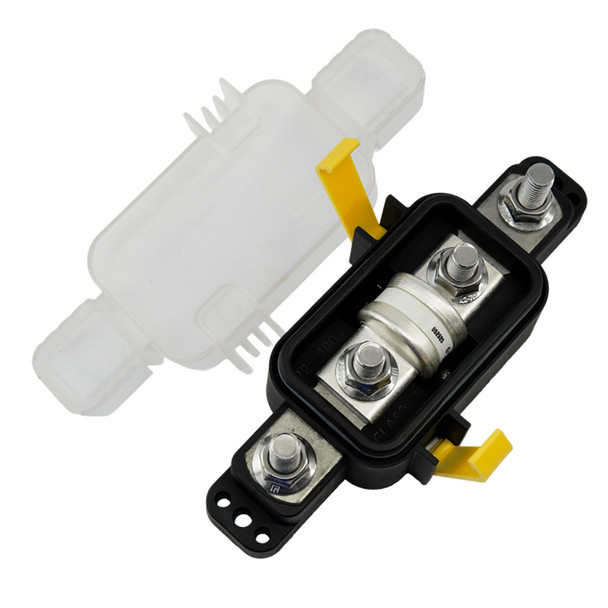

Egis Mobile Electric Class T Fuse Block 225-400A Sealed for Heavy-Duty Electrical Protection

Class T Fuse Block 225-400 A - Sealed

Applications/Problems This Solves:

• Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
• Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.

Features:

• Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
• Stainless Steel Self-Locking Hardware ensures robust connections long-term connection reliability.
• Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
• 4 Year Warranty

Specifications:

• Maximum Amperage: 225-400A
• Max Voltage: 80 VDC
• Ingress Protection Ratings: IP66, IP67, IP6K9K
• Mounting Holes: 4x #10 (M5) 2x 1/4 (M6)
• Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
• Busbar Material: Tin-Plated Copper

The Egis Mobile Electric Class T Fuse Block Part Number 3912 is designed to provide reliable overcurrent protection in demanding electrical systems. With a maximum amperage rating of 400 amps and supporting voltages up to 80 VDC, this fuse block ensures safety and performance in high-current applications. Its sealed design with IP66, IP67, and IP6K9K ratings makes it suitable for harsh environments, including marine and gaseous atmospheres, where protection against dust, water, and other contaminants is critical. The fuse block features separate stud connections for cable mounting, allowing larger gauge cables and terminals to feed into the fuse without interfering with the fuse tab itself. This design simplifies installation and enhances electrical performance by reducing voltage drop. The fuse block's construction incorporates a tin-plated copper busbar for superior conductivity and minimal voltage loss, ensuring efficient power distribution. Stainless steel self-locking hardware provides a secure and long-lasting connection, even in vibration-prone environments. Crafted from durable glass-filled nylon, the fuse block offers exceptional longevity and resistance to mechanical stress. Mounting is straightforward with four #10 (M5) and two 1/4-inch (M6) mounting holes, with a recommended maximum torque of 50 in-lbs (5.5 N-m) to ensure proper fastening. Backed by a 4-year warranty, the Egis Class T Fuse Block is a dependable choice for automotive, marine, and industrial applications where safety, durability, and performance are paramount.

Features:

• Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop

• Stainless steel self-locking hardware ensures robust and reliable connections

• Glass-filled nylon construction provides high durability and longevity in demanding environments

• Sealed design with IP66, IP67, and IP6K9K ratings for protection against dust, water, and harsh conditions

• Separate stud connections support larger gauge cables and terminals for easier installation
