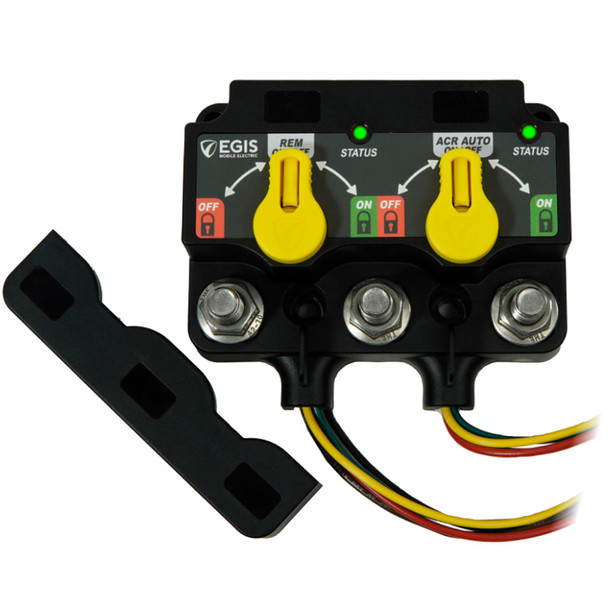

Egis Mobile Electric XD Dual Flex L ACR Relay with Knobs and Tinned Wires

XD Dual Flex L (ACR) -(Relay) with Knobs - Tinned Wires

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available With or Without Intuitive Front Facing Manual Override Knobs with Ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Dual Flex L ACR Relay is a high-performance solution designed for advanced battery management systems, including Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate batteries. Its robust construction ensures reliable operation in demanding environments, with a sealed IP67/IP6K9K rating that allows mounting in harsh conditions. The relay features stainless steel cable lug studs and large mounting holes compatible with standard hardware, making installation straightforward and secure. Its design incorporates high-temperature electronics and materials, providing durability and longevity even in elevated ambient temperatures. The relay's flexible functionality is facilitated through dip switches, enabling it to serve as a relay, battery disconnect, voltage sensing relay, or low voltage disconnect, tailored to specific system requirements. The remote control inputs offer additional versatility, allowing automatic or manual operation with the ability to force the relay to open or close, or to operate automatically based on voltage sensing. Local and remote LED indicators provide clear status updates, enhancing system monitoring and troubleshooting. The Egis XD Dual Flex L features an intuitive manual override option with lockable ON/OFF controls, simplifying servicing and ensuring operational safety. Its compact footprint reduces mounting space by up to 75%, thanks to an innovative bi-stable solenoid design and multiple solenoid assemblies that streamline electrical layouts. Compatibility with legacy products is guaranteed through plug-and-play DTM/ATM connectors, ensuring seamless integration. The relay's advanced design results in 90-95% less off-state current compared to similar products, contributing to energy efficiency. Backed by a four-year industry-leading warranty, the Egis XD Dual Flex L ACR Relay offers reliability, flexibility, and ease of use for demanding automotive and industrial applications.

Features:

• Sealed to IP67/IP6K9K for reliable operation in harsh environments

• High-temperature electronics and stainless steel cable lug studs for durability

• Intuitive manual control with lockable ON/OFF override for safe servicing

• Simple dip switch programming for versatile relay functions

• Compact design reduces mounting space by up to 75% with advanced bi-stable solenoid technology

• Plug-and-play compatibility with legacy relay systems using DTM/ATM connectors

• Significantly reduced off-state current for energy efficiency

• Remote control inputs for automatic or manual operation

• Local and remote LED indicators for status monitoring

• Multiple relay configurations available, including single, dual, and triple options

• Designed for Lithium-based battery systems requiring higher voltage settings

• Four-year warranty ensuring long-term reliability
