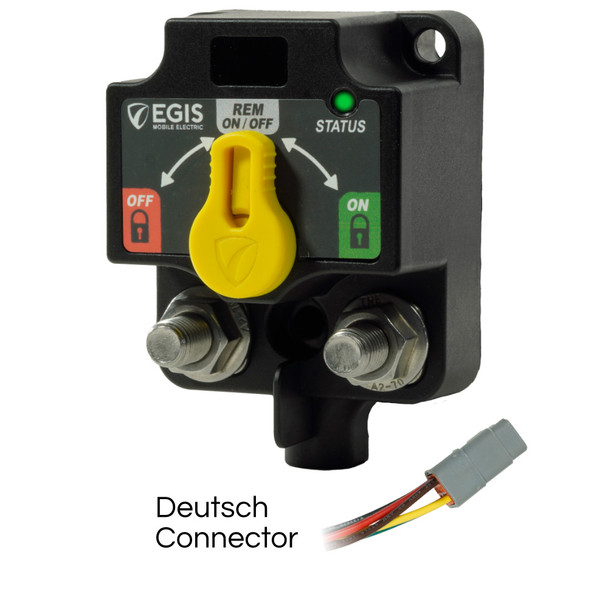

Egis Mobile Electric XD Series Single Flex 2 Relay-ACR with Knobs and DTM Connector

XD Series Single Flex 2 Relay-ACR with Knobs - DTM Connector

This Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. The relay is expandable with link and cross-link busbars to additional dual, triple, or single XD relays. Also, the relay supports 2 or 3 battery systems with standard busbar interconnect accessories.

Applications:

• Improved replacement/alternative to legacy solenoids and remote battery switches; Wire-for-wire compatible with Blue Sea ML-solenoid and ML-remote battery switch products
• Forward-facing input studs make landing large wires easily, and a protective cover with integrated label recesses enables easy identification while providing anti-contact short protection

Features:

• Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware
• The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
• Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers
• Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays
• 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

Led Status Display

The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.

3-Position Manual Override

Force each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.

Programmable

Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric XD Series Single Flex 2 Relay-ACR with Knobs (Part Number: 8810-1500) is a high-performance relay designed for versatile and space-efficient electrical system management. Featuring advanced bi-stable solenoid technology, this relay provides a significant reduction in mounting space—up to 75%—and weight, making it ideal for applications where space and weight are critical considerations. Its expandable design allows easy integration with link and cross-link busbars for connecting additional relays, supporting configurations for dual, triple, or single relay setups. The relay also supports 2 or 3 battery systems using standard busbar interconnect accessories, offering flexibility for complex power management systems.

Features:

• Sealed to IP67/IP6K9K standards, ensuring durability in harsh environments with high-temperature electronics and stainless steel cable lug studs for corrosion resistance.

• Front-facing input studs facilitate wiring, and a protective cover with integrated label recesses simplifies circuit identification while preventing accidental shorts.

• Manual control option allows operators to override relay states, with clear indicators to enhance operational awareness—unique among competitive solutions.

• Simple dip switch programming provides customizable relay functions, enabling tailored configurations for OEMs and installers.

• Plug-and-play compatibility with legacy products like Blue Sea ML-series relays, including DTM/ATM connector pins for seamless integration.

• Remarkably low off-state current—up to 95% less than comparable products—reducing system power consumption and increasing efficiency.
