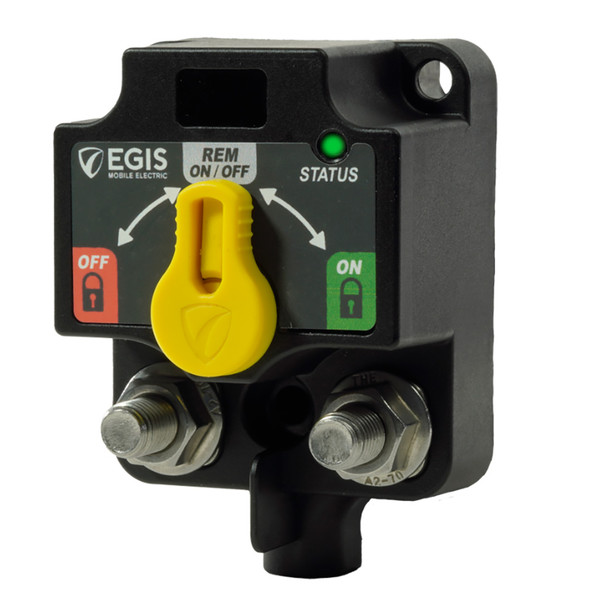

Egis Mobile Electric XD Single Low Voltage Disconnect with Knob and Tinned Wires (Part No. 8710-1700)

XD Single Low Voltage Disconnect with Knob - Tinned Wires

Features:

• Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
• Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay On or OFF for Servicing
• Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal
• Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing
• LED Indicator Provides Helpful Diagnostics
• Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown

The Egis Mobile Electric XD Single Low Voltage Disconnect (LVD) with Knob offers a reliable solution for protecting electrical systems from undervoltage conditions. Designed with a compact footprint, this relay supports continuous operation up to 500 amps, making it suitable for a variety of high-current applications. Its tinned wire connections ensure excellent corrosion resistance and dependable electrical performance in demanding environments. The unit features an intuitive front-facing manual override knob, which can be locked in the ON or OFF position during servicing, providing added safety and control. This manual override is available with or without the knob, depending on your operational needs.
The LVD's flexible functionality is managed via dip switches, allowing users to set the low voltage cut-off point, delay off time, and voltage differential for warning signals. These settings enable precise system management and prevent unnecessary shutdowns or damage caused by undervoltage conditions. Remote control inputs for ON/OFF/Auto modes facilitate forced operation or automatic voltage-based control, offering seamless integration within existing electrical systems. An LED indicator provides real-time diagnostics, alerting operators to system status and potential issues. Additionally, the remote external warning alarm signal offers an early warning of impending voltage shutdowns, enhancing system reliability and safety.
Built by Egis Mobile Electric, this low voltage disconnect combines durability, versatility, and ease of use, making it ideal for automotive, industrial, and renewable energy applications where voltage management is critical. Its robust construction and comprehensive feature set make it a dependable choice for safeguarding sensitive equipment and ensuring operational stability. It is shipped without freight restrictions and is suitable for various installation environments, ensuring long-term performance and peace of mind.

Features:

• Supports continuous operation up to 500 amps per relay with a compact design

• Available with or without manual override knobs that can be locked for safety during servicing

• Adjustable settings via dip switches including low voltage set point, delay off time, and warning voltage differential

• Remote control inputs for forced or automatic operation based on voltage sensing

• LED indicator for system diagnostics and status monitoring

• Remote external warning alarm signal for early voltage shutdown alerts
