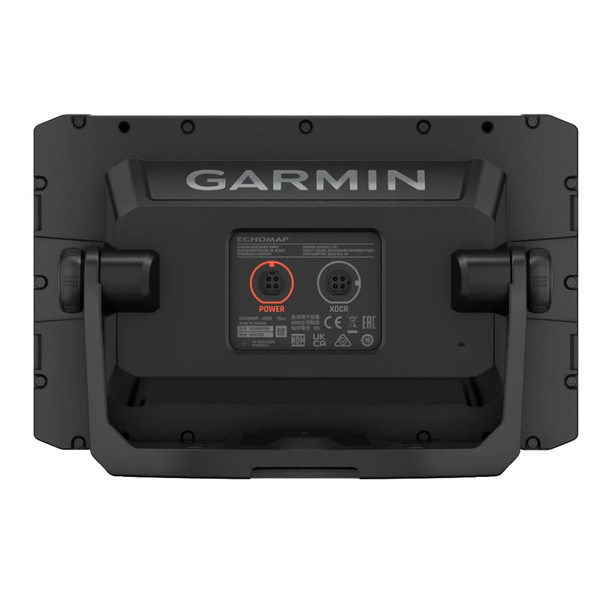

Garmin ECHOMAP UHD2 72cv Chartplotter with Preloaded Maps and Vivid Sonar Display

ECHOMAP UHD2 72cv without Transducer

They say locals know best. But anyone who says that hasnt fished with the ECHOMAP UHD2 chartplotters with clear, crisp sonar and mapping.

Features:

• 7 display size


• The bright keyed display is made for convenience


• Get double the views¹ with Garmin CHIRP traditional and ClearV scanning sonars


• Whats under the water looks even better with high-contrast vivid color palettes


• Wi-Fi connectivity² between compatible chartplotters makes it easy to share info


• Enjoy No. 1 in mapping with Garmins LakeV g3 and BlueChart maps with Navionics data

Sonar Support

With crisp, clear traditional sonar and brilliant ClearV sonar, the fish will have nowhere to hide.

Vivid Color Palettes

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Bundle the Transducer

The ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearV scanning sonars.

Preloaded Charts

Know the waters users are in as if they grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.

Wireless Networking

If users have another compatible ECHOMAP UHD2 chartplotter on the boat, the 5 and 7 models can wirelessly share information such as sonar, waypoints, and routes with them.

ActiveCaptain App

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, software updates, Garmin Quickdraw Community data, and more.

In the Box:

• ECHOMAP UHD2 72cv


• Power/data cable


• Tilt mount


• Flush mount


• Hardware


• Documentation

Specifications:

General:

• Dimension: 9.1 x 5.6 x 2.6 (23.2 x 14.3 x 6.7 cm)


• Weight: 1.5 lbs (0.7 kg)


• Waterproof: IPX7


• Display Type: WVGA, TN


• Display Size: 6.1 x 3.4 (15.5 x 8.7 cm)


• Display Resolution: 800 x 480 pixels


• Mounting Options: Bail or flush


• Input: Keyed

Maps Memory:

• Accepts Data Cards: 1 microSD card; 32 GB maximum size


• Waypoints: 5,000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• Galileo: Yes


• Has Built-In Receiver: Yes


• Receiver: 5 Hz


• Supports WAAS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes (downloadable via ActiveCaptain app)


• Garmin Navionics+ Inland Coastal: Yes (see Additional)


• Garmin Navionics+ (Coastal): Yes


• Garmin Navionics+ (Inland): Yes


• Tide Tables: Yes

Optional Map Support:

• BlueChart g3: Yes


• BlueChart g3 Vision: Yes


• LakeV g3: Yes


• LakeV g3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics Vision+: Yes


• TOPO U.S. 100K: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• ActiveCaptain Compatible: Yes

Electrical Features:

• Power Input: 9 to 18 VDC


• Typical Current Draw at 12 VDC: 1.0 A


• Maximum Current Draw at 12 VDC: 1.5 A


• Maximum Power Usage at 10 VDC: 18 W

Sonar Features:

• Displays Sonar: Yes


• Power Output: 500 W


• Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)


• ClearV: Built-in 260/455/800/1000/1200 kHz

Connections:

• 4-Pin Transducer Ports: 1


• Garmin Wi-Fi Network (Local Connection): Yes

¹Transducer required

²Requires the ActiveCaptain app on a compatible smartphone paired to the ECHOMAP UHD2 5 and 7 chartplotters

The Garmin ECHOMAP UHD2 72cv is a high-performance marine chartplotter designed to enhance your fishing and navigation experience. Featuring a 7-inch bright WVGA display with a resolution of 800 x 480 pixels, it provides clear and crisp visuals even in direct sunlight. The device supports multiple mapping options, including Garmin Navionics+ inland and coastal charts, with a built-in Auto Guidance+ feature that helps plan optimal routes. It also accepts data cards for expanded map storage, allowing users to customize their navigation experience. The ECHOMAP UHD2 72cv is water-resistant with an IPX7 rating, making it suitable for harsh marine environments.

Equipped with Garmin's traditional CHIRP sonar and ClearV scanning sonar support, this device offers dual-view capabilities with vivid high-contrast color palettes that make targets and underwater structures easy to distinguish. The sonar system provides a power output of 500 W, delivering detailed images to help locate fish and underwater features effectively. The device's support for various Garmin transducers ensures compatibility with both traditional and scanning sonar types, giving anglers flexibility based on their fishing conditions. Wireless Wi-Fi connectivity allows seamless sharing of sonar data, waypoints, and routes between compatible Garmin chartplotters. The built-in GPS receiver, supporting Galileo and WAAS, ensures accurate positioning and navigation, while the internal memory accommodates up to 5,000 waypoints and 50,000 track points.

The Garmin ECHOMAP UHD2 72cv includes essential accessories such as a power/data cable, tilt and flush mount hardware, and documentation for easy installation. Its compact design and multiple mounting options make it adaptable to various boat configurations. The device's ActiveCaptain app integration provides access to software updates, the Garmin Quickdraw Community for custom contours, and the OneChart feature for advanced mapping. Whether used for fishing or navigation, this chartplotter offers reliable performance, intuitive operation, and comprehensive mapping features to ensure confident and enjoyable time on the water.

Features:

• 7-inch bright WVGA display with 800 x 480 resolution for clear viewing

• Supports Garmin Navionics+ inland and coastal mapping with a built-in Auto Guidance+ feature

• Supports dual-view with Garmin CHIRP traditional and ClearV scanning sonar

• Vivid high-contrast color palettes enhance underwater target identification

• Wi-Fi connectivity enables wireless sharing of sonar, waypoints, and routes between compatible devices

• Accepts microSD cards up to 32 GB for expanded map storage and custom data

• Built-in GPS receiver supports Galileo and WAAS for precise positioning

• Supports up to 5,000 waypoints and 50,000 track points for extensive navigation data

• Water-resistant with IPX7 rating suitable for marine environments

• Includes tilt and flush mount hardware, power/data cable, and comprehensive documentation
