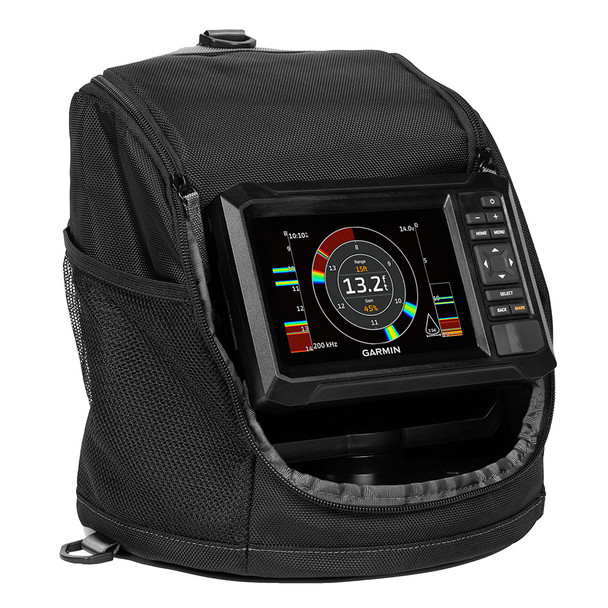

Garmin ECHOMAP UHD2 Keyed 5-Inch cv Ice Fishing Bundle with Dual Beam-IF Transducer

ECHOMAP UHD2 Keyed 5" cv Ice Fishing Bundle with ECHOMAP UHD2 53cv Dual Beam-IF Transducer

Designed for the passionate angler, the 5-inch ECHOMAP UHD2 Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience.

Features:

• Bright 5 in. sunlight-readable display


• Included dual beam-IF transducer


• Built-in flasher


• Garmin Navionics+ maps with 23,000+ lakes


• Rugged, portable carrying case

ECHOMAP UHD2 Combo

This portable bundle includes the 5-inch ECHOMAP UHD2 chartplotter with a glove-friendly keyed interface.

Ice Fishing Transducer

This bundle includes a high wide dual beam-IF ice fishing transducer with selectable beamwidth (either 15 or 45 degrees) and provides crisp, clear fish arches with excellent target separation.

Garmin Navionics+ Maps

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos

You can create custom pages that combine sonar, flashers, and maps on your display.

Supports Scanning Sonar

The 5-inch ECHOMAP UHD2 also supports ClearV scanning sonar for open water. Get nearly photographic images of whats below the surface (transducer sold separately).

Carrying Case

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

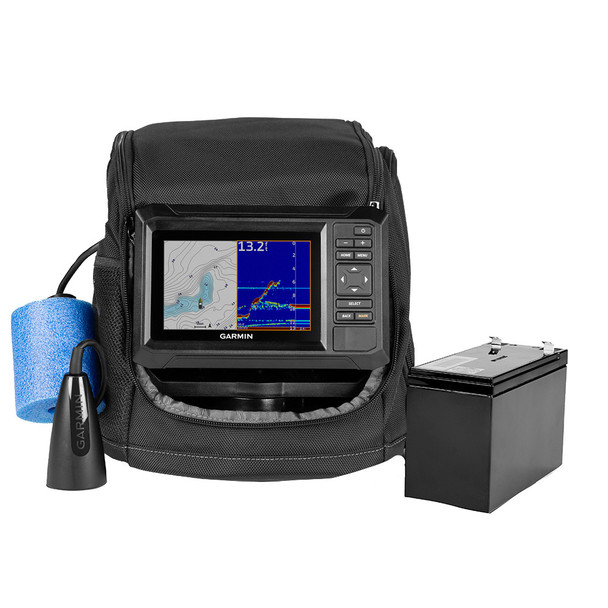

In the Box:

• ECHOMAP UHD2 chartplotter (version depends on mapping selected)


• Dual Beam-IF transducer


• Tilt/swivel mount


• Portable bag


• Base/handle


• Foam float


• Power cable


• Rechargeable battery


• Battery charger


• Documentation

General Specifications:

• Dimensions: 7.4 x 4.8 x 2.4 in. / 18.8 x 12.2 x 6.2 cm


• Input: Keyed


• Display Size: 4.3 x 2.6 in. / 10.9 x 6.6 cm


• Display Resolution: 800 x 480 pixels


• Display Type: WVGA, IPS


• Weight: 9.5 lbs / 4.3 kg


• Waterproof: IPX7

Maps Memory:

• Accepts Data Cards: 1 microSD card; 32 GB maximum size


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Ice Fishing Details:

• Battery Type, Size: SLA, 7Ah


• Bag Size: Small


• Included Transducer: DB-IF


• Transducer Holding Feature: Foam float

Sensors:

• Has Built-in Receiver: Yes


• Receiver: 5 Hz


• NMEA 2000 Compatible: Yes


• GPS: Yes


• Glonass: Yes


• Galileo: Yes


• Supports Waas: Yes

Built-in Maps:

• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)


• Garmin Navionics+ Inland Coastal: Yes (see Additional)


• Garmin Navionics+ (Inland): Yes (see Additional)


• Optional Map Support:


• Garmin Navionics+: Yes


• Garmin Navionics+ VIision+: Yes


• TOPO: Yes


• Standrad Mapping: Yes


• Garmin Quickdraw Tours: Yes

Chartplotter Features:

• ActiveCaptain Compatable: Yes

Electrical Features:

• Power Input: 9 to 18 Vdc

Sonar Features Specifications:

• Displays Sonar: Yes


• Power Output: 500 W


• Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)


• ClearV: Built-in 260/455/800/1000/1200 kHz

Connections:

• 4-Pin Transducer Ports: 1


• Garmin Wi-Fi Network (Local Connection): Yes

Additional:

• Garmin Navionics+ Inland Coastal: 55cv Canada


• Garmin Navionics + (Inland): 53cv U.S. Lakes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin ECHOMAP UHD2 Keyed 5-inch cv Ice Fishing Bundle is designed to elevate your ice fishing experience with its advanced features and portable design. The bright, sunlight-readable display offers clear visibility in all lighting conditions, allowing you to navigate and scan with confidence. This bundle includes the Garmin ECHOMAP UHD2 53cv chartplotter with a user-friendly, glove-compatible keyed interface, making it easy to operate even in cold environments. The bundle's rugged, portable carrying case ensures you can transport your gear effortlessly from hole to hole, season after season. The included dual beam-IF transducer provides crisp, clear fish arches with selectable beamwidth options of 15 or 45 degrees, delivering excellent target separation and detailed sonar imaging. This setup supports traditional CHIRP sonar and ClearV scanning sonar, offering nearly photographic images of what's beneath the surface, which is invaluable for successful fishing trips. The preloaded Garmin Navionics+ maps cover over 23,000 lakes across the United States, enabling comprehensive navigation and detailed bathymetric data to help locate prime fishing spots. You can customize your display by creating pages that combine sonar, flasher, and mapping views, enhancing your situational awareness on the ice. The device supports additional features like Auto Guidance+ for route planning, Waas for enhanced positioning, and compatibility with Garmin's ActiveCaptain app for seamless connectivity. The bundle includes a rechargeable battery, power cable, foam float for transducer storage, and all necessary mounting hardware, providing a complete solution for serious anglers. With its durable construction, IPX7 waterproof rating, and advanced sonar capabilities, the Garmin ECHOMAP UHD2 Ice Fishing Bundle is built to withstand harsh winter conditions while delivering reliable performance. Whether you're targeting panfish or larger game, this portable, feature-rich system helps you make the most of your ice fishing expeditions with unmatched clarity and detail.

Features:

• Bright 5-inch sunlight-readable display for clear visibility in all lighting conditions

• Included dual beam-IF transducer with selectable beamwidth for crisp fish arches

• Built-in flasher for traditional ice fishing techniques

• Preloaded Garmin Navionics+ maps covering over 23,000 lakes in the U.S.

• Rugged, portable carrying case for easy transport and storage

• Supports scanning sonar for detailed underwater imaging (transducer sold separately)

• Customizable pages combining sonar, maps, and flasher views

• Supports Auto Guidance+ for route planning and navigation

• Waas, GPS, Glonass, Galileo, and Waas compatibility for precise positioning

• Waterproof IPX7 rating for durability in harsh weather conditions
