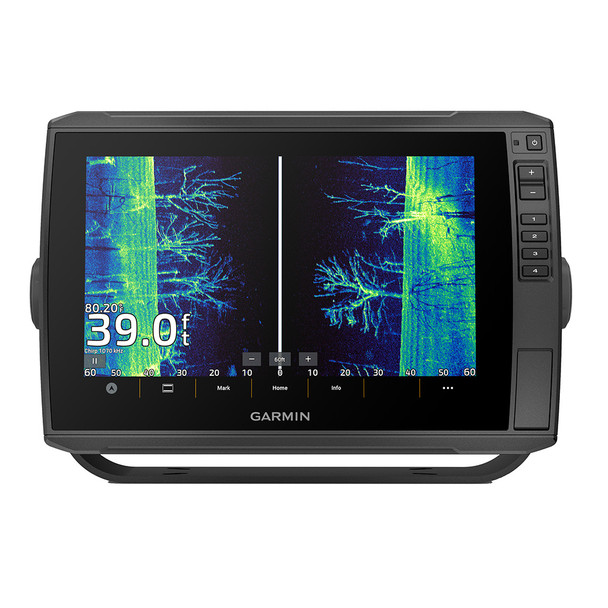

Garmin ECHOMAP Ultra 2 106sv Chartplotter with Navionics+ Mapping and LiveScope Support

ECHOMAP Ultra 2 106sv without Transducer - Garmin Navionics+

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips. This display has built-in Garmin Navionics+ mapping.

Features:

• ECHOMAP Ultra 2 106sv with Garmin Navionics+ Inland Coastal Mapping


• 10 touchscreen


• Supports livescope sonar, and more


• Wirelessly network; share sonar, waypoints, and routes.


• Capture screen recordings to share fish catches


• Multi-band GPS for improved position accuracy

Livescope Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearV and SideV scanning sonars for photo-like images of whats beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Preloaded Charts

Experience unparalleled coverage and detail. with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information such as sonar, waypoints, and routes with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000 Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link audio systems, and more.

ActiveCaptain App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data, and more.

Force Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

• ECHOMAP Ultra 106sv with optional Garmin Navionics+


• Power/data cable


• Bail mount with quick-release cradle


• Protective sun cover


• 8-pin transducer to 12-pin sounder adapter cable


• Hardware


• Documentation

Specifications

General:

• Dimension: 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)


• Weight: 4.0 lbs (1.8 kg)


• Waterproof: IPX7


• Touchscreen: Yes


• Display Type: WXGA, IPS


• Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)


• Display Resolution: 1280 x 800 pixels


• Mounting Options: Bail or flush


• Input: Touchscreen with Keyed Assist

Maps Memory:

• Accepts Data Cards: 2 microSD cards


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• Galileo: Yes


• BeiDou: Yes


• Has Built-In Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes


• Garmin Navionics+ Inland Coastal: Yes (see Additional)


• Tide Tables: Yes (see Additional)

Optional Map Support:

• Garmin Navionics+: Yes


• Garmin Navionics+ Vision+: Yes


• TOPO 100k: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• ActiveCaptain Compatible: Yes


• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC


• Typical Current Draw at 12 VDC: 2.5 A


• Maximum Current Draw at 12 VDC: 5.0 A


• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes


• Power Output: 600 W


• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)


• ClearV: Built-in 260/455/800/1000/1200 kHz


• SideV: Built-in 260/455/800/1000/1200 kHz


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• Garmin Marine Network Ports: 2 (Large Connector)


• 12-Pin Transducer Ports: 12-Pin Scanning Sonar


• ANT+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin ECHOMAP Ultra 2 106sv is a versatile marine chartplotter designed for serious anglers and boaters seeking detailed mapping and advanced sonar capabilities. Featuring a bright, sunlight-readable 10-inch touchscreen display, this device offers a seamless user experience with crisp visuals and intuitive controls. Built-in Garmin Navionics+ mapping provides comprehensive inland and coastal charts with a one-year subscription for updates, depth shading, and detailed coverage. Its support for optional Garmin Navionics Vision+ and other map upgrades allows users to customize their navigation experience with high-resolution relief shading, satellite imagery, and additional data layers.

This model supports live-scanning sonar through compatible transducers (sold separately), including the full lineup of LiveScope units, enabling real-time underwater visualization. The device’s built-in UHD sonar, with select bundles including a GT56 transducer, delivers ClearV and SideV scanning sonar for highly detailed, photo-like images of structures and fish beneath the surface. High-contrast, vivid color palettes enhance target and structure differentiation, making it easier to identify fish and underwater features. The ECHOMAP Ultra 2 series supports traditional CHIRP sonar, multispectral scanning, and Panoptix sonar, providing a comprehensive suite of tools for advanced fishfinding.

Connectivity features include wireless networking to share sonar data, waypoints, and routes with other compatible Garmin chartplotters on the boat, along with the ActiveCaptain app for software updates, screen recordings, and community data sharing. Multi-band GPS and multiple satellite system support (GLONASS, Galileo, BeiDou) improve positional accuracy, while NMEA 2000 compatibility allows integration with heading sensors, autopilots, and audio systems. The unit’s quick-disconnect bail mount facilitates easy installation and removal, making it portable and convenient for various boat configurations. Accessories such as protective sun covers and mounting hardware are included for durability and ease of use.

Designed with robust waterproofing (IPX7 rating) and comprehensive sensor support, the Garmin ECHOMAP Ultra 2 106sv is suitable for a wide range of marine environments. Whether for fishing, navigation, or exploring new waters, this chartplotter provides detailed maps, advanced sonar, and seamless connectivity to enhance your boating experience.

Features:

• 10-inch sunlight-readable touchscreen display with high resolution

• Built-in Garmin Navionics+ inland and coastal mapping with 1-year updates

• Supports LiveScope sonar and traditional CHIRP, ClearV, SideV scanning sonar

• Vivid color palettes for easy target and structure identification

• Wireless network sharing of sonar, waypoints, and routes with compatible devices

• Multi-band GPS with enhanced positional accuracy

• NMEA 2000 and Garmin Marine Network compatibility for system integration

• ActiveCaptain app for software updates, screen recording, and data sharing

• Supports optional premium maps like Navionics Vision+ and TOPO 100k

• Quick-disconnect bail mount for easy installation and removal

• Waterproof IPX7 rated design for durability in marine environments
