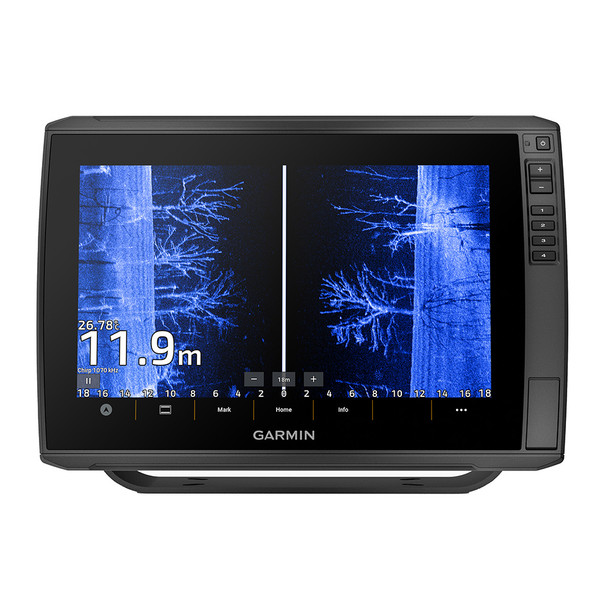

Garmin ECHOMAP Ultra 2 122sv Chartplotter with Sunlight-Readable Touchscreen and Advanced Navigation Features

ECHOMAP Ultra 2 122sv without Transducer

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the angler's fingertips.

Features:

• ECHOMAP Ultra 2 122sv with Worldwide Basemap


• 12 touchscreen


• Supports livescope sonar, and more


• Wirelessly network; share sonar, waypoints, and routes.


• Capture screen recordings to share fish catches


• Multi-band GPS for improved position accuracy

Livescope Sonar Support

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

Built-in UHD Sonar

Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearV and SideV scanning sonars for photo-like images of whats beneath the surface.

Vivid Color Palettes

High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.

Premium Map Upgrades

Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.

Wireless Networking

If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information such as sonar, waypoints, and routes with them.

Stay Connected

Multi-Band GPS

Get improved position accuracy with multi-band GPS

NMEA 2000 Network Compatibility

Connect to heading sensors, autopilots, Fusion-Link audio systems, and more.

ActiveCaptain App

Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data, and more.

Force Trolling Motor

Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.

Take It With You

The quick-disconnect bail mount lets users quickly install and remove the unit.

In the Box:

• ECHOMAP Ultra 122sv


• Power/data cable


• Bail mount with quick-release cradle


• Protective sun cover


• 8-pin transducer to 12-pin sounder adapter cable


• Hardware


• Documentation


• Specifications

General:

• Dimension: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm


• Weight: 5.5 lbs (2.5 kg)


• Waterproof: IPX7


• Touchscreen: Yes


• Display Type: WXGA, IPS


• Display Size: 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal)


• Display Resolution: 1280 x 800 pixels


• Mounting Options: Bail or flush


• Input: Touchscreen with Keyed Assist

Maps Memory:

• Accepts Data Cards: 2 microSD cards


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• Galileo: Yes


• BeiDou: Yes


• Has Built-In Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-In Maps:

• Built-In Auto Guidance+: Yes


• Garmin Navionics+ Inland Coastal: Yes (see Additional)


• Tide Tables: Yes (see Additional)

Optional Map Support:

• BlueChart g3: Yes


• BlueChart g3 Vision: Yes


• LakeV g3: Yes


• LakeV g3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics+ Vision+: Yes


• TOPO 100k: Yes


• Standard Mapping: Yes


• Garmin Quickdraw Contours: Yes

Chartplotter Features:

• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• ActiveCaptain Compatible: Yes


• Sailing Features: Yes

Electrical Features:

• Power Input: 9 to 18 VDC


• Typical Current Draw at 12 VDC: 2.5 A


• Maximum Current Draw at 12 VDC: 5.0 A


• Maximum Power Usage at 10 VDC: 36 W

Sonar Features:

• Displays Sonar: Yes


• Power Output: 600 W


• Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 Khz, L, M, H Chirp)


• ClearV: Built-in 260/455/800/1000/1200 kHz


• SideV: Built-in 260/455/800/1000/1200 kHz


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• Garmin Marine Network Ports: 2 (Large Connector)


• 12-Pin Transducer Ports: 12-Pin Scanning Sonar


• ANT+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin ECHOMAP Ultra 2 122sv offers anglers and boaters a high-performance marine chartplotter with a 12-inch sunlight-readable touchscreen display, providing clear visuals even in bright sunlight. This versatile device supports a comprehensive array of features including support for LiveScope sonar (transducer sold separately), multi-band GPS for enhanced positioning accuracy, and wireless networking capabilities to share sonar data, waypoints, and routes seamlessly with other compatible Garmin devices. Its built-in worldwide basemap serves as a reliable navigation foundation, while optional premium maps like Garmin Navionics Vision+ can be added to access high-resolution relief shading, satellite imagery, and more detailed chart information. The intuitive interface combined with the high-contrast vivid color palettes ensures easy target and structure identification, making it an essential tool for serious anglers and boaters alike.
Designed for flexibility, the ECHOMAP Ultra 2 122sv features a quick-disconnect bail mount for easy installation and removal, allowing users to take the unit on the go. Its advanced sonar capabilities include UHD sonar with options for ClearV and SideV scanning, providing photo-like images beneath the water's surface. The device supports multiple mapping options, including BlueChart g3, LakeV g3, and Garmin Quickdraw Contours, enabling detailed charting tailored to your environment. Connectivity options such as NMEA 2000, Garmin Marine Network, Wi-Fi, and ANT+ facilitate integration with autopilots, heading sensors, and audio systems for a comprehensive marine experience.
The unit's robust build features a waterproof IPX7 rating, a 10 Hz built-in GPS receiver, and support for multiple satellite systems including GLONASS, Galileo, and BeiDou, ensuring accurate positioning in diverse conditions. With extensive waypoint and route storage, AIS support, DSC, and support for Fusion-Link radios, the Garmin ECHOMAP Ultra 2 122sv is well-equipped for navigation, fish-finding, and communication needs. The device also integrates with the free ActiveCaptain app for software updates, screen recordings, and community data sharing, enhancing user experience and connectivity on the water.

Features:

• 12-inch sunlight-readable touchscreen display with WXGA resolution

• Supports LiveScope sonar and UHD ClearV/SideV scanning sonar

• Built-in worldwide basemap with optional premium map upgrades

• Wireless networking for sharing sonar, waypoints, and routes

• Multi-band GPS with enhanced positional accuracy

• Supports NMEA 2000 and Garmin Marine Network connectivity

• Compatible with ActiveCaptain app for updates and community features

• Quick-disconnect bail mount for easy installation and portability

• Waterproof IPX7 design suitable for harsh marine environments

• Supports extensive mapping options including BlueChart g3 and Garmin Quickdraw Contours

• Supports AIS, DSC, and Fusion-Link radios for comprehensive navigation and communication

• Supports multiple satellite systems including GLONASS, Galileo, and BeiDou

• Built-in auto guidance and tide tables for versatile navigation

• Supports up to 5,000 waypoints and 50,000 track points for detailed navigation
