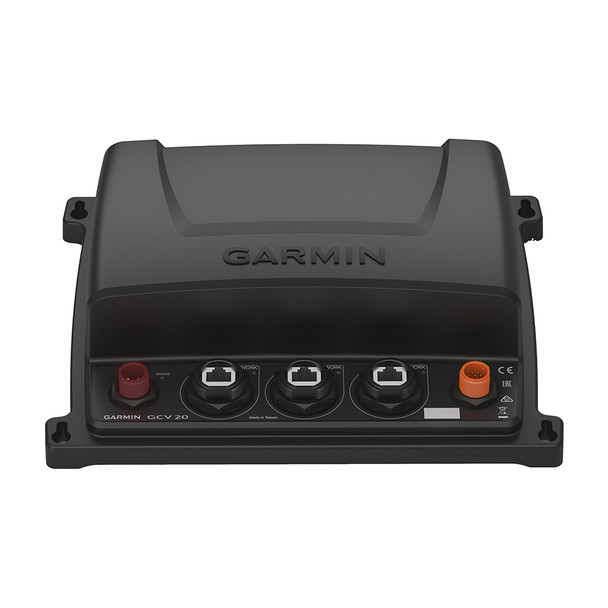

Garmin GCV 20 Ultra HD Scanning Sonar Black Box with ClearV and SideV Modes

GCV 20 Ultra HD Scanning Sonar Black Box

Add Ultra High-Definition Scanning Sonar to Your Compatible Chartplotter
The easy-to-install, networkable GCV 20 sonar black box allows you to redefine clarity and detail. Add any of the 3 GT34UHD transducer models to see stunningly clear Ultra High-Definition ClearV and Ultra High-Definition SideV scanning sonars with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) to your compatible chartplotter. And you can share sonar images seamlessly across multiple networked chartplotters as well as networking Panoptix all-seeing sonar. It includes a max power output of 500 watts.

Ultra High-Definition ClearV Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideV Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

General:

• Physical dimensions: 9.9"7.6"2.6" (251mm 192mm 66mm)


• Weight: 1.86lbs (845g)


• Water rating: IPX7


• Garmin Marine Network ports: 3


• Temperature range: From 5F to 158F (from -15C to 70C)

Sonar Features Specifications:

• Frequencies supported:

• Ultra High-Definition ClearV: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz


• Ultra High-Definition SideV: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Transmit power: 500W rms


• Maximum depth:

• 200' Ultra High-Definition ClearV


• 125' to each side Ultra High-Definition SideV, 250' total

What's In The Box:

• GCV 20


• Right-angle power cable


• Right-angle ethernet cable


• Mounting hardware


• Documentation

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance your marine navigation with the Garmin GCV 20 Ultra HD Scanning Sonar Black Box, designed to deliver ultra-high-definition imaging for both structure and fish detection. This networkable sonar black box seamlessly integrates with compatible chartplotters, providing stunning clarity through its Ultra High-Definition ClearV and SideV modes. The system supports three GT34UHD transducer models and operates across frequencies ranging from 0.8 MHz to 1.2 MHz, enabling detailed scanning at greater depths and wider side imaging. With a maximum power output of 500 watts, the GCV 20 offers sharp, detailed images that significantly improve your fishing and navigation experience. Its network connectivity allows for sharing sonar images across multiple devices, making it ideal for advanced boat setups and multi-operator environments. Its compact design and durable IPX7 water rating ensure reliable operation in various marine conditions, while easy installation hardware simplifies setup. Whether you're exploring deep waters or scouting off to the sides of your vessel, this sonar system provides the high-resolution imaging needed for confident decision-making on the water.

Features:

• Supports ultra-high-definition ClearV scanning at depths up to 200 feet

• Provides ultra-high-definition SideV imaging with a range of 125 feet per side

• Supports frequencies from 0.8 MHz to 1.2 MHz for detailed scanning

• Maximum transmit power of 500 watts RMS for powerful, clear images

• Networkable design allows sharing sonar data across multiple chartplotters

• Compatible with Garmin Panoptix all-seeing sonar systems

• Includes mounting hardware, power and Ethernet cables for easy installation

• Durable water resistance rating of IPX7 for use in harsh marine environments
