Description

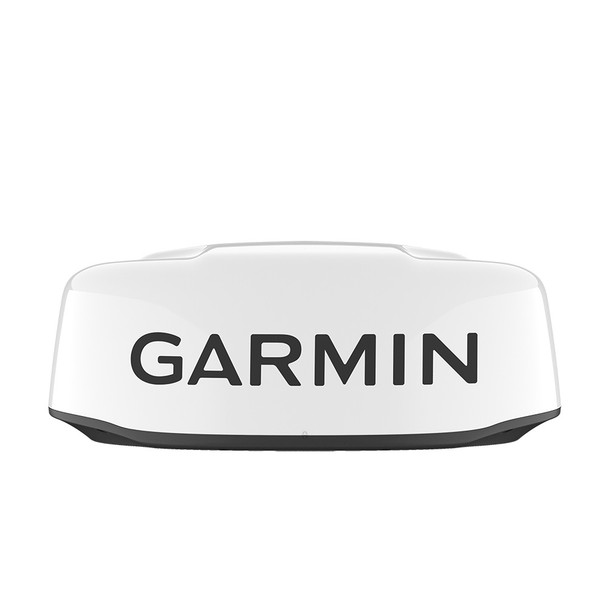

GMR 24 xHD3 24 Radar Dome
Loaded with advanced features typically found on open arrays, this powerful 24 dome radar offers superior traffic, obstacle, and weather detection for peace of mind on the water.
Features:
- 4 KW power output, 48 nautical mile max range
- Scan-averaging technology
- Improved target-size processing
- Split-screen dual-range display
- Bird detection
- Quiet dome-drive motor
Scan Averaging Technology
A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.
Angular Target-Size Adjustment
Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.
Faster Scanning Antenna
Rotation speeds up to 60 rpm improve the redraw rate for faster target updates.
True Echo Trails
A historical trail of boats on the water is displayed on the screen, removing relative motion influences to help you quickly identify moving targets and potential collision threats.
Dual Range with Overlay
A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range settings and controls for both close and long range. Overlay either or both ranges on a chart.
Dynamic Auto Gain
Gain automatically adjusts levels to optimum settings for harbors, near shore, and offshore in open waters.
Radar Overlay
See overlaid images on your chartplotters map screen (with appropriate sensors, sold separately).
High-Resolution Radar
Pick out targets at a distance thanks to a narrow horizontal beamwidth and high antenna gain.
Dual-Radar Support
This provides redundancy and allows each display unit to pull data from different sources.
Dynamic Sea Filter
Radar gain automatically adjusts sea clutter for calm, medium, and rough sea conditions.
Auto Bird Gain
Locate flocks of birds at the waters surface, where baitfish are also likely to be found.
MARPA Target Tracking
Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).
Guard Zone
Set the safety zone and receive an alarm when an object enters the zone.
Range and Bearing Cues
Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.
In the Box:
- GMR 24 xHD3 dome radar
- Power cable (15 m/49.21 ft)
- BlueNet network cable (15 meters)
- BlueNet Network to RJ45 Adapter Cable
- Mounting hardware kit and template
- Installation instructions
General:
- Dimensions: 25.4 x 9.8 (64.5 cm x 24.9 cm)
- Weight: 7.0 kg
- Waterproof: IPX7
- Antenna length: 17 (43 cm)
- Rotation Speed (RPM): Up to 60 RPM, depending on settings
- Beam Width: 3.7 horizontal, 25 vertical
- Maximum Range: 48 nm
- Minimum Range: 20 meters
- Radar Type: Radome
Electrical Features:
- Power Input: 11-32 v DC
- Power Consumption (Standby): 15 W
- Typical Power Consumption, Transmitting (Normal Mode): 40 W
- Transmit Power: 4 KW
Radar Features:
- Dual Range: Yes
- Overlay: Yes
- Dual Radar Support: Yes
- Auto Bird Gain: Yes
- Auto Gain: Dynamic
- MARPA Target Tracking: Yes (requires heading sensor, sold separately)
- Echo Trails: True
- Target Size: Yes
- Scan Averaging: Yes
The Garmin GMR 24 xHD3 24" Radar Dome offers mariners a high-powered, feature-rich radar solution designed for superior navigation safety and obstacle detection. Equipped with a robust 4 KW power output and capable of reaching up to 48 nautical miles, this radar dome ensures clear detection of vessels, weather phenomena, and potential hazards at long distances. Its advanced scan-averaging technology filters out sea clutter and interference, providing consistent and reliable target displays even in challenging conditions.
The radar features a fast rotation speed of up to 60 rpm, delivering rapid updates on moving targets and enabling quick decision-making. Its true echo trails visually display boat movements over time, aiding in collision avoidance by removing the influence of relative motion. The dual-range capability with overlay allows users to simultaneously monitor close-in and distant targets on a split-screen, with independent controls and options to overlay data on navigation charts for comprehensive situational awareness. The high-resolution antenna with a narrow beamwidth enhances target detection at extended ranges, making it ideal for offshore and open water navigation.
Additional features include dynamic auto gain adjustment that optimizes display settings across different sea states, and a dynamic sea filter that automatically reduces clutter caused by varying sea conditions. The auto bird gain function detects flocks of birds, often indicating baitfish and other marine life, which can be crucial for fishing and navigation. MARPA target tracking supports up to 30 targets, providing collision avoidance support when paired with appropriate heading sensors. Safety is further enhanced with guard zones that trigger alarms when objects enter predefined areas, and range and bearing cues for quick distance and directional measurements. The Garmin GMR 24 xHD3 is built to withstand harsh marine environments with an IPX7 waterproof rating and is compatible with multiple display units for redundancy and comprehensive coverage.
Designed for professional-grade performance, this radar dome includes all necessary mounting hardware, a 15-meter power cable, network cables, and detailed installation instructions. Its compact dimensions and lightweight design make installation straightforward, while its advanced features ensure optimal performance in diverse maritime scenarios. Whether for commercial, recreational, or safety purposes, the Garmin GMR 24 xHD3 offers a reliable, high-performance radar solution built to meet demanding marine navigation needs.
Features:
- Power Output: 4 KW with a maximum range of 48 nautical miles for long-distance detection
- Scan Averaging Technology: Filters sea clutter and interference for clearer target displays
- Target Size Processing: Optimizes the shape and size interpretation of on-screen objects
- Split-Screen Dual-Range Display: Allows simultaneous monitoring of close and distant targets
- Bird Detection: Identifies flocks on the water surface to locate baitfish
- Quiet Dome-Drive Motor: Ensures smooth, noise-free operation during rotation
- Fast Scanning: Antenna spins up to 60 RPM for rapid target updates
- True Echo Trails: Visual historical display of boat movements for collision avoidance
- High-Resolution Radar: Narrow beamwidth for detailed target detection at long ranges
- Dual Radar Support: Provides redundancy by connecting multiple display units
- Dynamic Auto Gain: Automatically adjusts levels for optimal display in various conditions
- Radar Overlay: Integrates radar images onto compatible chartplotters
- MARPA Target Tracking: Supports tracking of up to 30 targets for collision avoidance
- Guard Zone: Customizable safety zones with alarms for object entry
- Range and Bearing Cues: Variable markers and electronic lines for quick measurements
- Waterproof Design: IPX7 rated for reliable performance in harsh marine environments
