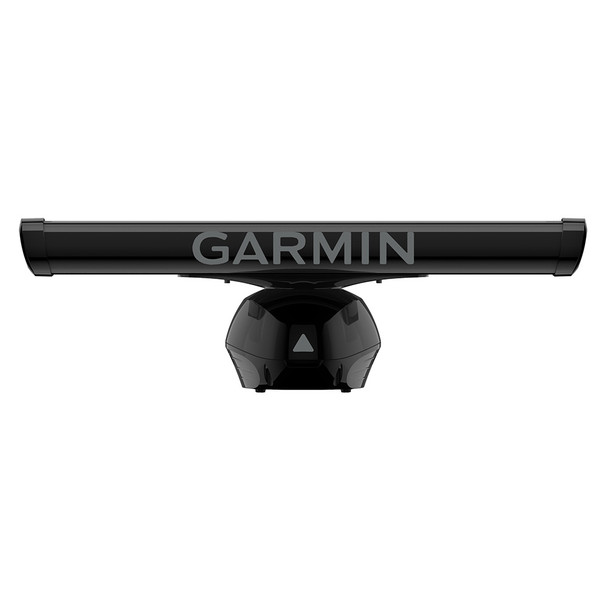

Garmin GMR Fantom 124 Radar - Black

GMR Fantom 124 Radar - Black

This open-array radar highlights moving targets in color and gives users excellent close- and long-range target detection even in fog or rain.

Features:

• Know whats coming. MotionScope technology shows targets in color as they move closer or away


• GMR Fantom brings the power (120 watts of it)


• Get high resolution without wasting energy, thanks to pulse compression


• Add even more detail to maps with radar overlay even in a split-screen view

High-Powered Radar

This 120-watt solid-state radar has a range from 20 to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.

High-Resolution Radar

The 1.8-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.

Motionscope Technology

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather or toward fishing spots where birds feed at the surface.

Intuitive Operation

This radar doesnt have any complex user settings to deal with, so its easy to install and start using.

Target Size

Adjust the size of objects on the radar image.

Auto Bird Gain

Locate flocks of birds at the waters surface where baitfish are also likely to be found.

Echo Trails

A historical trail is left on the screen to help users quickly and easily identify moving targets and potential collision threats.

Dual Range

A single radar antenna is capable of providing split-screen images on the chartplotter for both close and long ranges.

Dual-Radar Support

Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

Dynamic Auto Gain

Gain automatically adjusts levels to optimum settings for harbors, near shore, and offshore in open waters.

Dynamic Sea Filter

Gain automatically adjusts sea clutter for calm, medium, and rough sea conditions.

Radar Overlay

Overlay radar images onto a chart plotters map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.

MARPA Target Tracking

Mini-automatic radar plotting aid (MARPA) tracks up to 30 selected targets, helping users keep track of other vessels and avoid collisions.

Guard Zone

Set the safety zone, and receive an alarm when an object enters the zone.

VRM EBL

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

General Specifications:

• Dimension: 16.6 x 14.3 x 10.7 Pedestal: 42.1 x 36.4 x 27.1 cm; Full assembly: 15.9 height x 51.8 diameter; Full assembly: 40.3 cm height x 131.4 cm diameter


• Weight: Array: 11.4 LB (5.2 KG); Pedestal: 34.7 LB (15.7 KG)


• Waterproof: IPX6


• Max Wind Load: 80KT


• Antenna Length: 48 (121.92 CM)


• Rotation Speed (RPM): 24 and 48 RPM (high speed only available in single range mode with motion scope disabled and on range settings of 12 NM or lower)


• Beam Width: 1.8 Horizontal, 23 Vertical


• Maximum Range: 96 NM


• Minimum Range: 6 Meters


• Radar Type: Open-Array

Electrical Specifications:

• Power Input: 10-32 V DC


• Transmit Power: 120 W

Radar Specifications:

• Dual Range: Yes


• Overlay: Yes


• Dual Radar Support: Yes


• Auto Bird Gain: Yes


• Auto Gain: Dynamic


• Marpa Target Tracking: Yes (requires heading sensor, sold separately)


• Echo Trails: Yes


• Motionscope: Yes


• Programmable Antenna Parking: Yes


• Target Size: Yes


• Scan Averaging: Yes

In the Box:

• Black GMR Fantom 124 antenna and pedestal


• Mounting hardware kit and template


• Right-angle power cable (15 meters)


• Right-angle BlueNet network cable (15 meters)


• BlueNet Network to RJ45 Adapter Cable


• Voltage converter


• Documentation

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin GMR Fantom 124 Radar delivers advanced open-array radar performance with a 120-watt solid-state design, providing reliable target detection at ranges up to 96 nautical miles in various weather conditions including fog and rain. Its high-resolution 1.8-degree beamwidth ensures clear imaging of distant and weak targets, while the dual-range capability allows simultaneous close and long-range viewing on a split-screen display. This radar features MotionScope technology that uses Doppler effect to highlight moving targets in color, enabling quick identification of vessels, weather formations, or birds, which is essential for safe navigation and effective fishing operations. The intuitive design requires minimal setup, making installation straightforward and operation user-friendly for boaters of all experience levels. The radar's dynamic auto gain and sea filter automatically optimize image quality by adjusting to sea and weather conditions, reducing clutter and enhancing target visibility. Additionally, the overlay feature allows users to project radar images onto chart plotter maps for comprehensive situational awareness, especially when integrated with autopilot and heading sensors sold separately. MARPA target tracking supports the monitoring of up to 30 vessels, helping avoid collisions by providing precise target information. The guard zone alarm enhances safety by alerting operators when objects enter predefined areas, while variable range markers (VRM) and electronic bearing lines (EBL) facilitate quick distance and bearing measurements to targets. Designed with durability in mind, the Garmin GMR Fantom 124 is waterproof with an IPX6 rating and can withstand wind loads up to 80 knots. Its versatile mounting options and included hardware make installation adaptable to various boat configurations. Whether navigating through challenging weather or monitoring nearby vessels, this radar offers high performance and reliability for serious mariners and fishermen alike. The package includes the antenna, pedestal, mounting hardware, power and network cables, voltage converter, and comprehensive documentation, ensuring a complete solution for your marine radar needs.

Features:

• MotionScope Technology: Highlights moving targets in color based on their movement toward or away from the vessel

• High-Powered Radar: 120 watts with a range up to 96 nautical miles for long-distance detection in fog or rain

• High Resolution: 1.8-degree beamwidth and high antenna gain for detailed imaging of distant targets

• Dual Range Capability: Simultaneous close and long-range viewing with split-screen display

• Automatic Gain and Sea Filter: Adjusts levels automatically for optimal target visibility in varying sea conditions

• Radar Overlay: Projects radar images onto chart plotter maps for enhanced situational awareness

• MARPA Target Tracking: Monitors up to 30 targets to assist in collision avoidance

• Guard Zone Alarm: Notifies operators when objects enter predefined safety zones

• Variable Range Markers and Electronic Bearing Lines: Facilitate quick distance and bearing measurements

• Durable and Weather-Resistant: Waterproof with IPX6 rating and wind resistance up to 80 knots

• Easy Installation and Operation: Designed for straightforward setup with minimal complex settings
