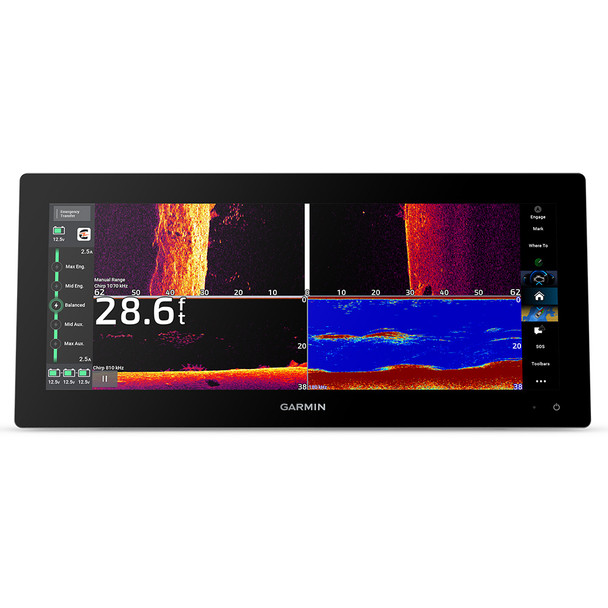

GPSMAP 1543xsv Ultrawide Combo GPS/Fishfinder GN+

WIDEN YOUR HORIZONS

Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.

Features:

• Ultrawide in-plane switching (IPS) 15 display fits a variety of helm layouts, including floating display configurations


• Connect to compatible third-party devices with digital switching and Onehelm integrations


• Easily build your marine system by using our advanced network connectivity


• Navigate waters confidently with preloaded Garmin Navionics+ charts


• See below your boat with built-in sonar capabilities


• Manage your marine experience from nearly anywhere¹


Sleek Modern Design

Offering a stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.

Bright and Clear Optics

This versatile chartplotters ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity, and sunlight readability even with polarized sunglasses.

Split to Fit

Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.

Two Mounting Options

A bail-mount option with inset knobs and a bracket supports unique floating display installations, while a rear-mount option is provided for secure flush- and flat-mount helm solutions.

Traditional and Scanning Sonar Support

Get built-in support for 1 kW CHIRP traditional sonar for superior target separation. Plus, Ultra High-Definition ClearV and SideV scanning sonars feature vivid, high-contrast color palettes to help distinguish fish from structure (transducer required; sold separately).

Live Sonar Support

Pair with Panoptix or LiveScope easy-to-interpret live sonar (transducer required; sold separately) to see all around your boat in real time.

Preloaded Mapping

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+ technology² and a 1-year subscription for downloadable daily updates and more on select models.

Optional Charts and Maps

Bring premium chart features to your chartplotter with an optional upgrade to a Garmin Navionics Vision+ subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery, and more.

Garmin Sailassist Sailing Features

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, and more.

Sailing Polars

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed, so you know whether you need to adjust sail trim.

Garmin Marine Network

If you have multiple compatible Garmin devices on your boat, you can share information, such as maps, user data, radar, and IP camera video, among them.

NMEA 2000 and NMEA 0183 Networks

Connect to compatible autopilots, digital switching, weather, the Fusion audio system, media, VHF, AIS, and more from one screen.

Activecaptain App

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications (when paired with your smartphone), software updates, Helm app, Garmin Quickdraw Community data, and more¹.

Integrated Ant Technology

Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments, and wireless remote controls.

Engine Connectivity

You can connect your chartplotter to different engines, including select Yamaha and Mercury engines.

Onehelm Feature

This feature brings together all of the operations and capabilities of EmpirBus digital switching and other third-party devices on one screen.

Send inReach Device Messages

Pair your inReach satellite communicator³ to your chartplotter, and type custom messages by using your MFDs on-screen keyboard. Access your contact list, or enter an email, inReach address, or phone number. You can also group messages by conversation for a texting-like experience.

Power-Pole Shallow Water Anchor

By networking the GPSMAP 15x3 chartplotter with your Force trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features⁴ from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection, and end-of-route anchoring. Spend more time fishing, less time positioning.

Trolling Motor Integration

Get support and integration for your Force series trolling motor (sold separately) to gain more control while you fish.

Whats In The Box

• GPSMAP 1543xsv ultrawide chartplotter


• microSD card preinstalled


• Power cable


• Thin flush mount kit with gasket


• Protective cover


• 8-pin transducer to 12-pin sounder adapter cable


• 2 m backbone/drop cable and T-connector for NMEA 2000 Network


• Documentation

Specifications:

General:

• Dimensions: 15.3 x 7.02 x 3.3


• Weight: 7.2 lbs


• Water Rating: IPX7


• Touchscreen: Yes


• Display Type: Ultrawide Display, IPS


• Display Size: 13.6 x 5.1; 14.5 diagonal


• Display Resolution: 1920 x 720 pixels


• Mounting Options: Bail, flush, or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge are required.)


• Polarized Lens Viewability: Yes

Maps Memory:

• Accepts Data Cards: 2 microSD cards (back of device)


• Compatible with Garmin SD Card Reader: Yes (USB card reader)


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Sensors:

• GPS: Yes


• GLONASS: Yes


• GALILEO: Yes


• Built-in Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• NMEA 0183 Compatible: Yes


• Supports WAAS: Yes


• Supports Multi-Band, Multi-Constellation GPS: yes (with external GPS antenna)

Built-In Maps:

• Built-in Auto Guidance+: Yes


• Garmin Navionics+ Inland Coastal: Yes


• Tide Tables: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes


• AIS: Yes


• DSC: Yes


• Supports Fusion-Link Compatible Radios: Yes


• GSD Black Box Sonar Support: Yes


• GCV Black Box Sonar Support: Yes


• ActiveCaptain Compatible: Yes


• Supports Voice Commands: yes (with external accessory)


• Grid (Garmin Remote Input Device) Compatible: Yes


• Wireless Remote Compatible: Yes


• Sailing Features: Yes


• Spoken Audio Alerts: Yes


• Onehelm Support: Yes

Sonar Features:

• Displays Sonar: Yes


• Power Output: 1 kW


• Traditional Sonar (Dual Frequency/Beam): Yes


• ClearV: Yes


• SideV: Built-in 260/455/800/1000/1200 kHz


• Panoptix Sonar: Yes


• Livescope: Yes

Connections:

• NMEA 2000 Ports: 1


• NMEA 0183 Input (RX) Ports: 1


• NMEA 0183 Output (TX) Ports: 1


• Video Input Ports: 1 (BNC composite)


• J1939 Ports: 1


• Garmin Marine Network Ports: 2


• 12-Pin Transducer Ports: 1


• USB Ports: Yes


• Bluetooth Pairing: Yes (BLE)


• Ant (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes

1Requires ActiveCaptain app on your smartphone paired to your chartplotter

2Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

3Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.

4Integration of these features requires purchase of a C-Monster GATEWAY through Power-PoleWi-Fi is a registered trademark of the Wi-Fi Alliance.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Garmin GPSMAP 1543xsv Ultrawide Combo GPS and Fishfinder GN+ offers a premium navigation and fishing experience with its expansive 15-inch high-resolution touchscreen display. Designed to provide an ultrawide, edge-to-edge glass interface, this chartplotter enhances your visibility and situational awareness, making it an essential tool for serious anglers and boaters. The display's IPS technology ensures wide viewing angles and sunlight readability, allowing you to operate confidently from nearly any angle or lighting condition. The sleek, modern aesthetic with minimal borders complements a variety of helm layouts, including floating configurations, and the device supports multiple mounting options for flexible installation.

Equipped with advanced mapping features, the GPSMAP 1543xsv comes preloaded with Garmin Navionics+ charts, offering comprehensive inland and coastal coverage. The integrated Auto Guidance+ technology simplifies route planning, while the device’s ability to accept microSD cards allows you to expand your map library with optional charts like Garmin Navionics Vision+ for detailed relief shading, satellite imagery, and sonar overlays. The built-in sonar capabilities support traditional 1 kW CHIRP sonar for superior target separation, along with Ultra High-Definition ClearV and SideV scanning sonar options, ensuring you can identify fish and underwater structures clearly. For real-time underwater insights, pair it with Panoptix or LiveScope transducers, sold separately.

Connectivity is a key feature of the Garmin GPSMAP 1543xsv, supporting Garmin Marine Network, NMEA 2000, and NMEA 0183 protocols, enabling integration with autopilots, digital switching systems, radar, VHF, AIS, and other marine electronics. The ActiveCaptain app enhances your experience with smart notifications, software updates, and access to Garmin’s community features, all via built-in Wi-Fi. The device also supports integration with compatible Garmin marine watches, wireless remote controls, and engine networks, including Yamaha and Mercury engines, for comprehensive boat management. Additional features like Garmin SailAssist provide layline, wind data, and race guidance to optimize sailing performance.

Designed for durability, the GPSMAP 1543xsv is rated IPX7 for water resistance and features multiple mounting options, including bail and flush mounts, to suit your specific installation requirements. With extensive waypoint, track, and route management, the device supports up to 5,000 waypoints and 50,000 track points, ensuring you can plan and navigate complex routes with ease. Its versatile sonar support, network connectivity, and user-friendly touchscreen interface make it an ideal choice for both recreational and professional marine applications.
